20684 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) GOVERNOR ASSEMBLY Parts Diagram

Walk-Behind Mower

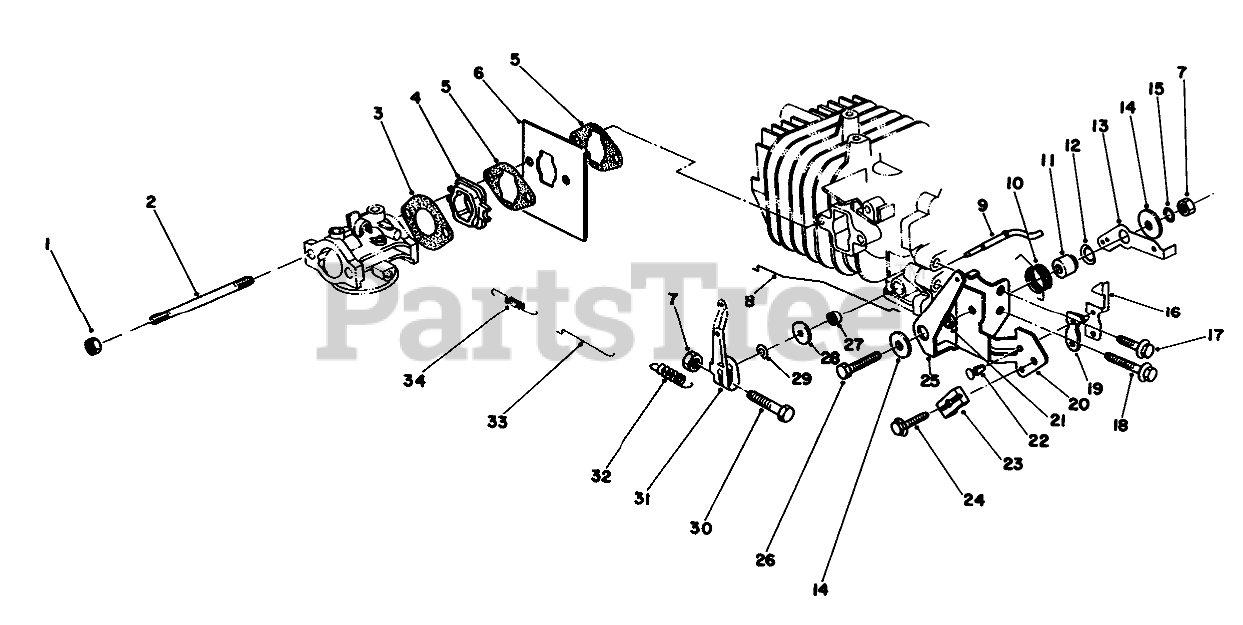

GOVERNOR ASSEMBLY Parts Diagram

  • Title
1

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

2

Toro 81-2240

CARB STUD BOLT

$

$

Not available

3

Toro 81-0780

GASKET-CARB

$6.99

$

In Stock, Qty 12

0

4

Toro 81-2190

INSULATOR

$19.99

$

Usually ships in 3-6 days

0

5

Toro 81-2320

GASKET

$7.99

$

In Stock, only 1 left!

0

6

Toro 81-2330

SHIELD

$

$

Not available

7

$3.49

$

In Stock, only 1 left!

0

8

Toro 81-1720

CHOKE ROD

$

$

Not available

9

Toro 814840

Shaft-Governor

$

$

Currently unavailable

10

Toro 81-1780

Spring-Choke Control Lever
(Superseded to 81-2460)

$

$

Not available

11

Toro 81-1770

Gov Lever Spacer
(Superseded to 81-5780)

$

$

Not available

12

Toro 81-1820

Washer-Gov. Spring Lever

$

$

Not available

13

Toro 81-1670

GOV SPRING LEVER

$

$

Not available

14

Toro 50-0760

WASHER

$

$

Not available

15

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

16

Toro 81-1840

TERMINAL-KILL SWITCH

$10.99

$

Usually ships in 3-6 days

0

17

$

$

Not available

18

$

$

Not available

19

Toro 81-1830

INSULATOR-KILL SWITCH

$6.99

$

Usually ships in 3-6 days

0

20

Toro 81-1680

Bracket-Throttle Control
(Superseded to 81-5770)

$

$

Not available

21

Toro 81-1760

Spacer-Choke Control Lever
(Superseded to 81-2470)

$2.49

$

In Stock, Qty 5

0

22

Toro 81-1850

KILL SWITCH RIVET

$

$

Not available

23

Toro 81-1690

CLAMP-CABLE

$2.99

$

Usually ships in 3-6 days

0

24

$

$

Not available

25

Toro 81-1710

LEVER-CONTROL, CHOKE

$

$

Not available

26

$4.99

$

In Stock, only 2 left!

0

27

Toro 81-0850

SEAL-OIL

$18.99

$

Usually ships in 3-6 days

0

28

Toro 81-0860

WASHER

$

$

Not available

29

Toro 81-0870

E-RING

$

$

Not available

30

$

$

Not available

31

Toro 81-0880

Lever-Throttle Control

$

$

Not available

32

Toro 81-1970

GOVERNOR SPRING

$

$

Not available

33

Toro 81-0910

ROD-CARBURETOR

$

$

Not available

34

Toro 81-0920

SPRING

$11.99

$

Usually ships in 3-6 days

0
