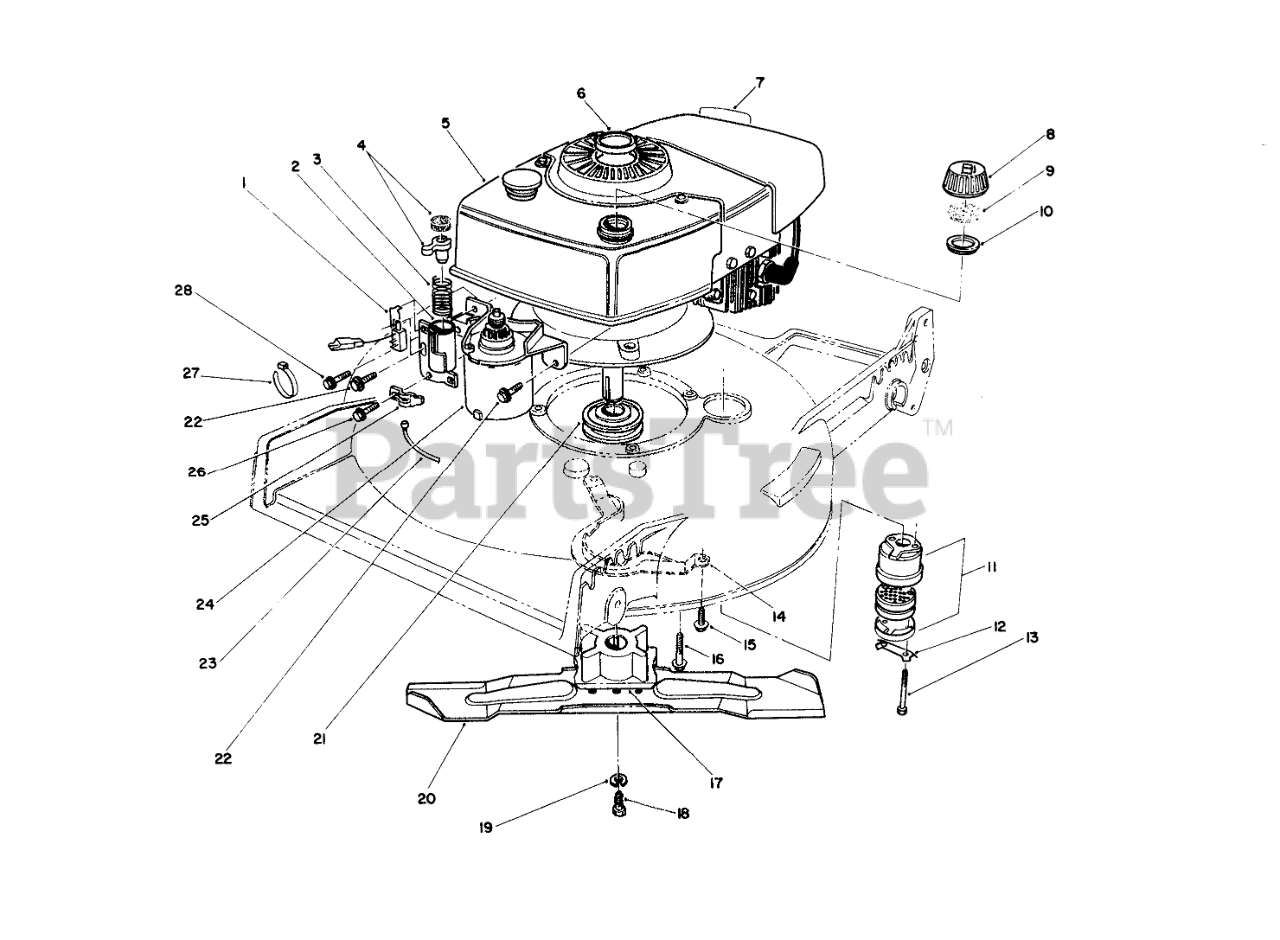

20677 - Toro Walk-Behind Mower (SN: 000002102 - 000999999) (1990) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 47-6530

PUSH BUTTON SWITCH

$

$

Not available

2

Toro 46-5840

TUBE W A

$

$

Not available

3

Toro 47-2180

COMPRESSION SPRING

$

$

Not available

4

Toro 47-7350

BRAKE PAD/PLUNGER ASM

$

$

Not available

5

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

6

Toro 38-1480

PLUG BUTTON

$16.99

$

In Stock, only 1 left!

0

7

Toro 37-1580

Decal-Maintenan

$

$

Not available

8

Toro 42-0682

Gas Cap (Incl. Ref. #9 & 10)

$

$

Not available

9

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

10

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

11

Toro 5-4769

Muffler Assembly (Incl. Ref. #12 & 13)

$62.99

$

Usually ships in 3-6 days

0

12

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

13

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

14

Toro 40-5720

BELT GUIDE

$

$

Not available

15

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

16

Toro 11-0581

3/8-16 X 2 CAPSCREW

$4.49

$

Usually ships in 3-6 days

0

17

Toro 62-7540

BLADE RETAINER

$98.99

$

In Stock, only 1 left!

0

18

Toro 26-0670

SCREW-BLADE

$

$

Not available

19

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

20

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$28.99

$

Usually ships in 3-6 days

0

21

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

22

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

23

Toro 43-4530

BRAKE CABLE

$

$

Not available

24

Toro 49-4210

STARTER MOTOR ASM

$

$

Not available

25

Toro 46-6530

CABLE CLAMP

$

$

Not available

26

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

27

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

28

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0
