20675 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) GEAR CASE ASSEMBLY (USED ON UNITS WITH SERIAL NO. 6001101 & UP) Parts Diagram

Walk-Behind Mower

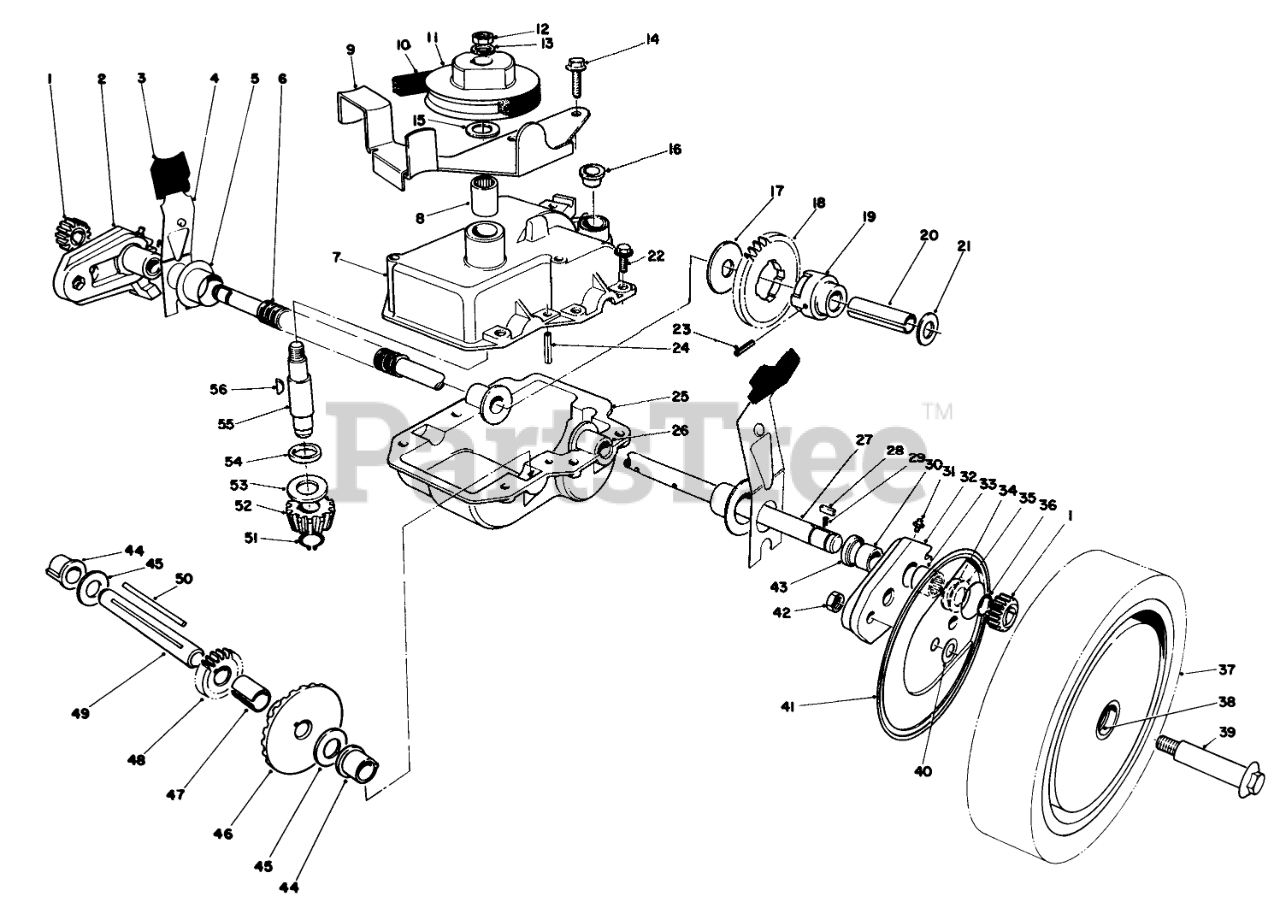

GEAR CASE ASSEMBLY (USED ON UNITS WITH SERIAL NO. 6001101 & UP) Parts Diagram

  • Title

1

Toro 39-9160

GEAR-PINION

$14.99

$

In Stock, Qty 5

0

2

Toro 49-7720

PIVOT ARM ASM RH

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

4

Toro 44-1010

SPRING ARM ASM SP

$45.99

$

Usually ships in 3-6 days

0

5

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, Qty 20+

0

6

Toro 24-7922

CONDUIT-CONVOLUTED, SPLIT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 39-7283

Case-Upper
(Superseded to 11-8709)

$

$

Not available

8

Toro 47-6720

BEARING

$40.99

$

Usually ships in 3-6 days

0

9

Toro 49-8460

BELT GUIDE BRKTB

$

$

Not available

10

Toro 36-8070

V-BELT

$14.99

$

In Stock, Qty 19

0

11

Toro 39-6740

PULLEY

$54.99

$

Usually ships in 3-6 days

0

12

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

13

Toro 325645

Washer

$

$

Currently unavailable

14

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

15

Toro 36-4790

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

16

Toro 12-0510

Caplug

$

$

Not available

17

Toro 29-9690

WASHER

$13.99

$

Usually ships in 3-6 days

0

18

Toro 29-9271

GEAR-42T

$94.99

$

Usually ships in 3-6 days

0

19

Toro 49-4280

DRIVE ADAPTER

$

$

Not available

20

Toro 36-9120

Spacer-Output Shaft

$

$

Not available

21

Toro 364780

Washer

$

$

Currently unavailable

22

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

23

Toro 32121-109

COIL PIN.156 X 1.125

$

$

Not available

24

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$1.99

$

Usually ships in 3-6 days

0

25

Toro 29-9410

LOWER GEAR CASE CAST

$

$

Not available

26

Toro 47-5220

Bushing-Output Shaft

$

$

Not available

27

Toro 53-7870

Output Shaft
(Superseded to 12-4779)

$206.99

$

Usually ships in 3-6 days

0

28

Toro 39-9680

KEY RECTANGULAR

$5.99

$

In Stock, Qty 20+

0

29

Toro 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 20+

0

30

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

31

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

32

Toro 49-7710

Pivot Arm Assembly-L.H. (Incl. Ref. #30, 31, 33 & 43)

$

$

Not available

33

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

34

Toro 49-7690

INNER THRUST WASHER

$

$

Not available

35

Toro 49-7700

WASHER-THRUST, OUTER

$2.99

$

In Stock, Qty 20+

0

36

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

37

Toro 11-9519

Wheel, Tire & Gear Assembly (Incl. Ref. #38)
(Superseded to 14-9959)

$62.99

$

In Stock, Qty 9

0

38

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

39

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 7

0

40

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

41

Toro 52-4860

WHEEL COVER

$38.99

$

Usually ships in 3-6 days

0

42

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

43

Toro 47-6730

SEAL-OIL

$13.99

$

In Stock, Qty 20+

0

44

Toro 52-5410

BUSHING

$

$

Not available

45

Toro 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

46

Toro 39-6670

BEVEL GEAR

$

$

Not available

47

Toro 36-9130

Spacer-Short Shaft

$

$

Not available

48

Toro 46-3550

GEAR-14T

$22.99

$

Usually ships in 3-6 days

0

49

Toro 46-9470

INTERMEDIATE SHAFT

$

$

Not available

50

Toro 39-7841

Key Square
(Superseded to 39-7843)

$

$

Not available

51

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

52

Toro 39-6660

PINION-BEVEL

$42.99

$

In Stock, only 1 left!

0

53

Toro 47-2910

WASHER-THRUST

$13.99

$

In Stock, only 1 left!

0

54

Toro 47-7260

SEAL

$8.99

$

In Stock, only 2 left!

0

55

Toro 39-6690

INPUT SHAFT

$

$

Not available

56

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

Toro 52-4871

Gear Case Complete

Note: Not illustrated

$

$

Not available
