20675 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) GEAR CASE ASSEMBLY (USED ON UNITS WITH SERIAL NO. 6000101-6001100) Parts Diagram

Walk-Behind Mower

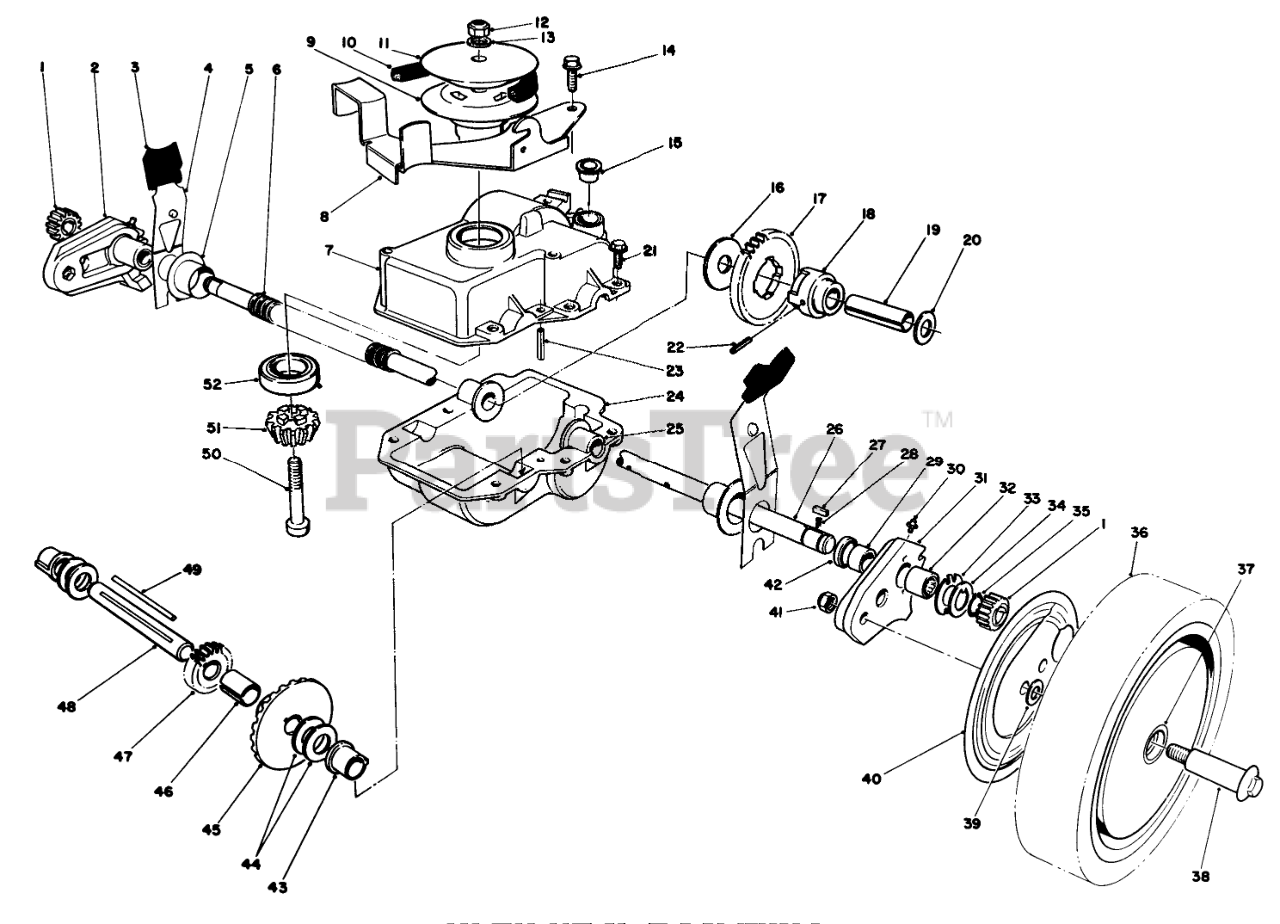

GEAR CASE ASSEMBLY (USED ON UNITS WITH SERIAL NO. 6000101-6001100) Parts Diagram

  • Title

1

Toro 39_9160

Pinion

$

$

Currently unavailable

2

Toro 49-7720

Pivot Arm Assembly-R.H. (Incl. Ref. #29, 30, 32 & 42)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

4

Toro 44-1010

SPRING ARM ASM SP

$45.99

$

Usually ships in 3-6 days

0

5

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, Qty 20+

0

6

Toro 24-7922

CONDUIT-CONVOLUTED, SPLIT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 49-8370

Case-Upper

$

$

Not available

8

Toro 49-8460

BELT GUIDE BRKTB

$

$

Not available

9

Toro 49-8330

PULLEY-LOWER HALF

$

$

Not available

10

Toro 36-8070

V-BELT

$14.99

$

In Stock, Qty 17

0

11

Toro 49-8340

PULLEY-UPPER HALF

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

15

Toro 12-0510

Caplug

$

$

Not available

16

Toro 29-9690

WASHER

$13.99

$

Usually ships in 3-6 days

0

17

Toro 29-9271

GEAR-42T

$94.99

$

Usually ships in 3-6 days

0

18

Toro 49-4280

DRIVE ADAPTER

$

$

Not available

19

Toro 36-9120

Spacer-Output Shaft

$

$

Not available

20

Toro 364780

Washer

$

$

Currently unavailable

21

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

22

Toro 32121-109

COIL PIN.156 X 1.125

$

$

Not available

23

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$1.99

$

Usually ships in 3-6 days

0

24

Toro 29-9410

LOWER GEAR CASE CAST

$

$

Not available

25

Toro 47-5220

Bushing-Output Shaft

$

$

Not available

26

Toro 44-0850

Output Shaft
(Superseded to 12-6659)

$267.99

$

Usually ships in 3-6 days

0

27

Toro 39-9680

KEY RECTANGULAR

$5.99

$

In Stock, Qty 20+

0

28

Toro 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 20+

0

29

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

30

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

31

Toro 49-7710

Pivot Arm Assembly-L.H. (Incl. Ref. #29, 30, 32 & 42)

$

$

Not available

32

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

33

Toro 49-7690

INNER THRUST WASHER

$

$

Not available

34

Toro 49-7700

WASHER-THRUST, OUTER

$2.99

$

In Stock, Qty 20+

0

35

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

36

Toro 11-9519

Wheel, Tire & Gear Assembly (Incl. Ref. #37)
(Superseded to 14-9959)

$62.99

$

In Stock, Qty 9

0

37

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 3 left!

0

38

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 7

0

39

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

40

Toro 52-4860

WHEEL COVER

$38.99

$

Usually ships in 3-6 days

0

41

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

42

Toro 47-6730

SEAL-OIL

$13.99

$

In Stock, Qty 20+

0

43

Toro 52-5410

BUSHING

$

$

Not available

44

Toro 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

45

Toro 39-6670

BEVEL GEAR

$

$

Not available

46

Toro 36-9130

Spacer-Short Shaft

$

$

Not available

47

Toro 46-3550

GEAR-14T

$22.99

$

Usually ships in 3-6 days

0

48

Toro 46-9470

INTERMEDIATE SHAFT

$

$

Not available

49

Toro 39-7843

KEY

$

$

Not available

50

Toro 3274-61

Screw-Socket Hd

$

$

Not available

51

Toro 49-8350

BEVEL PINION

$

$

Not available

52

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

Toro 49-4300

Plug Pipe

Note: Not illustrated

$

$

Not available
