20675 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) BLADE ASSEMBLY Parts Diagram

Walk-Behind Mower

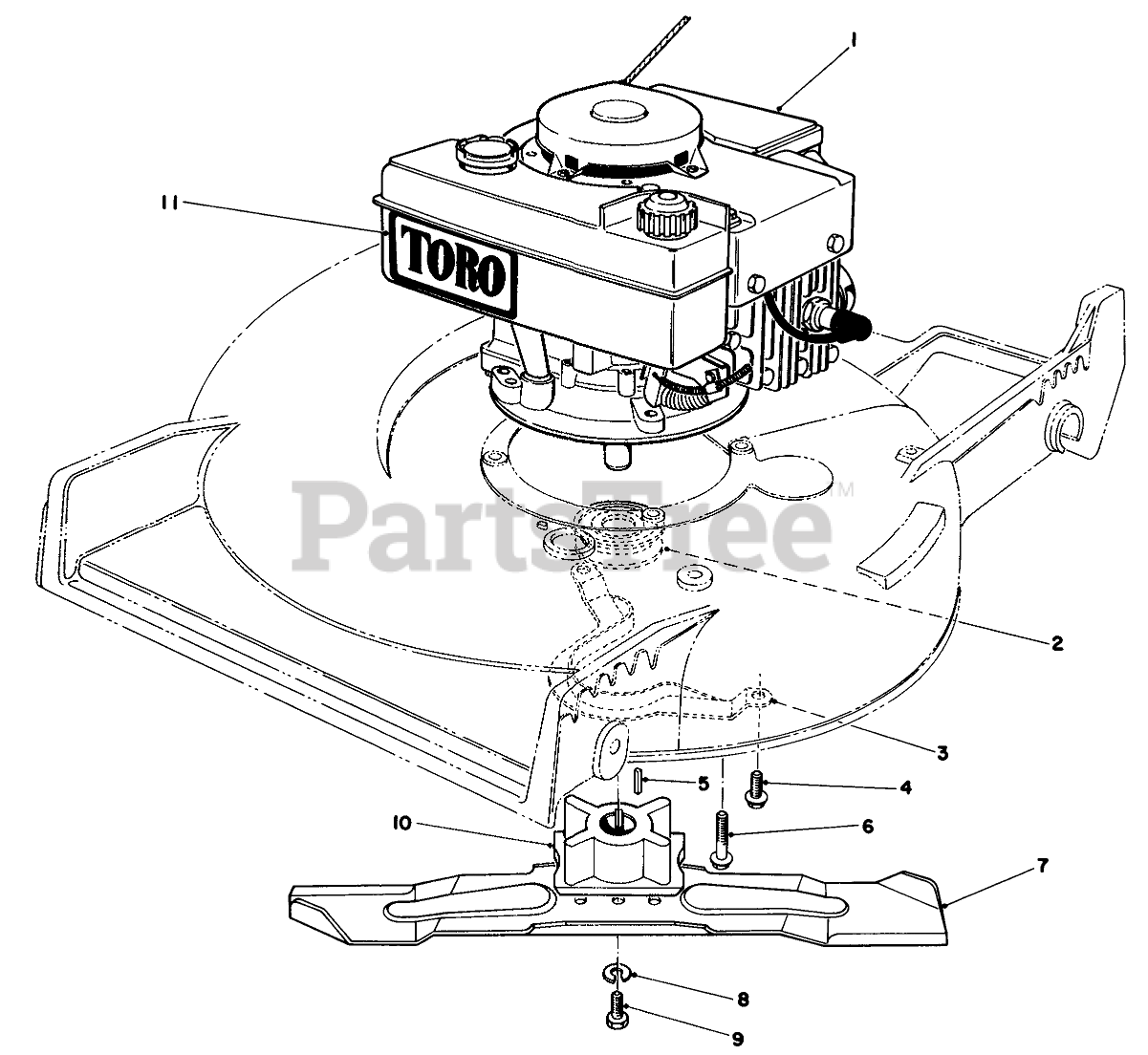

BLADE ASSEMBLY Parts Diagram

1

Toro 221-764

Engine

$

$

Currently unavailable

2

Toro 23-0130

Pulley
(Superseded to 93-0278)

$49.99

$

Usually ships in 3-6 days

0

3

Toro 40-5720

BELT GUIDE

$

$

Not available

4

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

5

Toro 7-0036

KEY-SQUARE

$

$

Not available

6

Toro 11-0581

3/8-16 X 2 CAPSCREW

$4.49

$

Usually ships in 3-6 days

0

7

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$28.99

$

In Stock, only 1 left!

0

8

Toro 26-0670

SCREW-BLADE

$

$

Not available

9

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

10

Toro 46-3490

BLADE RETAINER(DEEP)

$109.99

$

In Stock, only 1 left!

0

11

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0
