20675 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) TRACTION CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

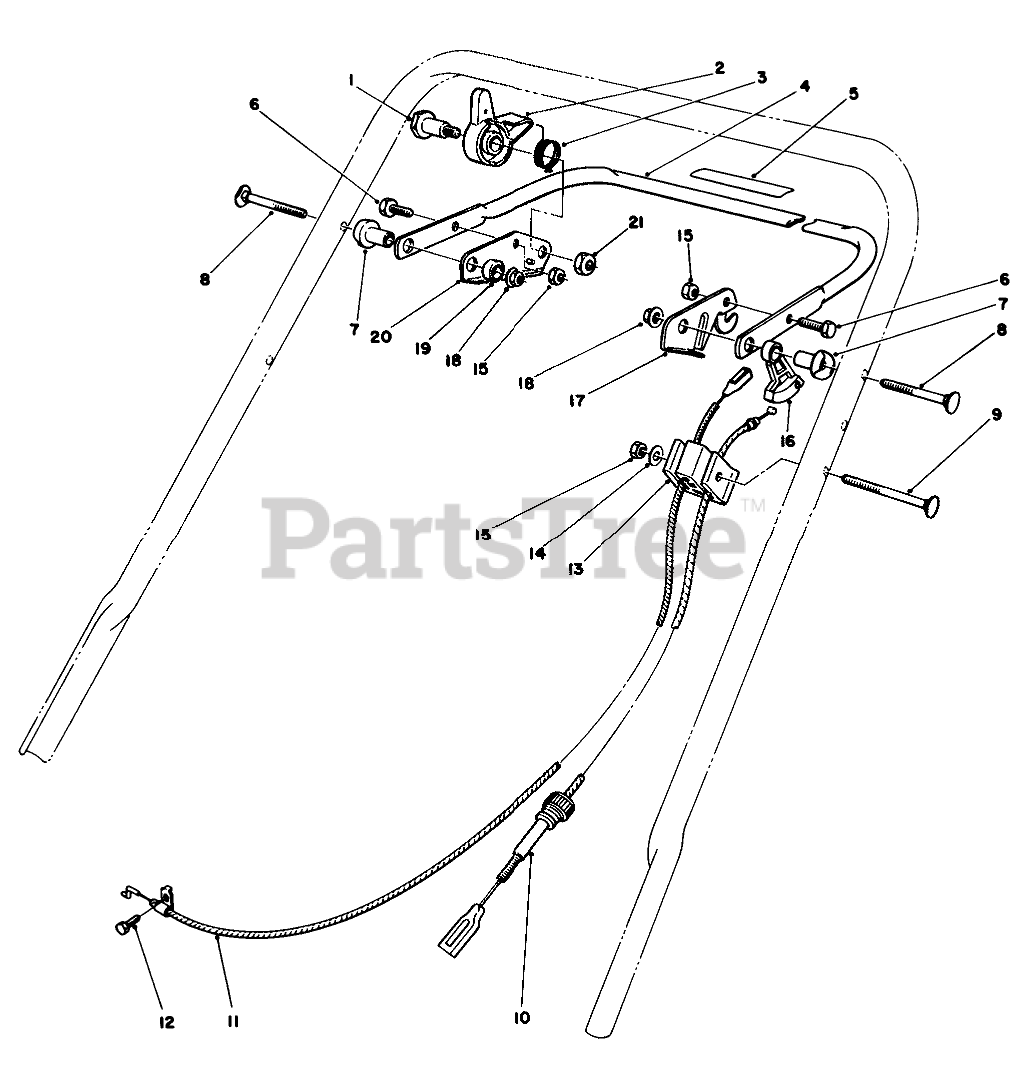

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 7-0846

SHOULDER BOLT

$

$

Not available

2

Toro 51-0300

NEUTRAL LOCKOUT

$

$

Not available

3

Toro 51-0290

TORSION SPRING

$

$

Not available

4

Toro 49-4220

CONTROL BAR PROMO

$

$

Not available

5

Toro 51-0970

Decal-Variable Speed

$

$

Not available

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

8

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 5

0

9

Toro 46-6432

SCREW-HANDLE

$14.99

$

Usually ships in 3-6 days

0

10

Toro 46-5481

CABLE-TRACTION

$65.99

$

In Stock, only 1 left!

0

11

Toro 46-8011

BRAKE CABLE

$

$

Not available

12

Toro 2210-250

SCREW-HH

$

$

Not available

13

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

16

Toro 46-5520

LEVER-TRACTION

$

$

Not available

17

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$13.99

$

Usually ships in 3-6 days

0

18

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

19

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

20

Toro 51-0280

Bracket-Lockout

$

$

Not available

21

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0
