20674 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) TRACTION CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

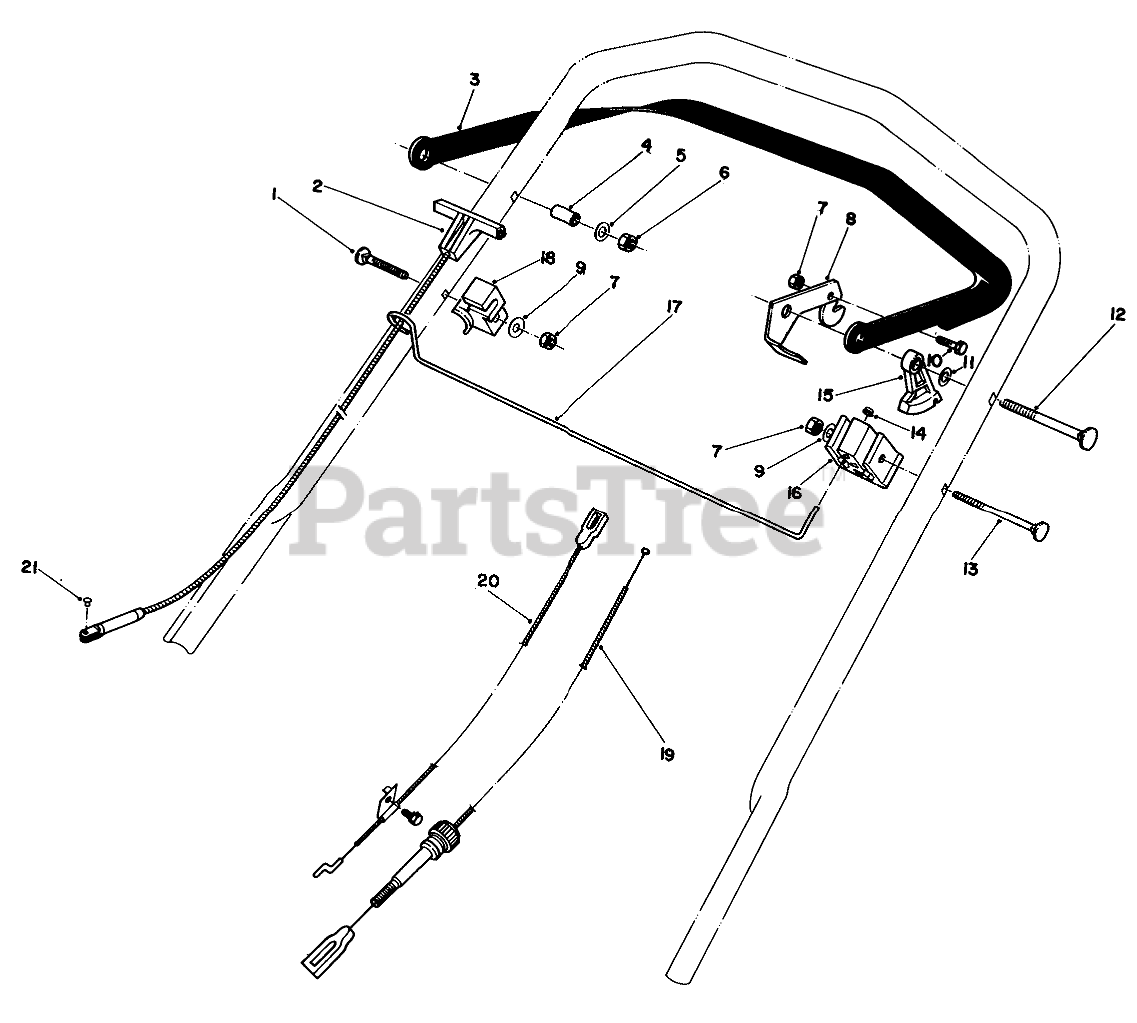

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 46-6430

SCREW-HANDLE

$11.99

$

Usually ships in 3-6 days

0

2

Rope-Starter

Note: Obtain from local Tecumseh-Lauson Dealer.

$

$

Not available

3

Toro 46-5560

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

4

Toro 46-5580

Spacer

$

$

Not available

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 11

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 18

0

8

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$13.99

$

Usually ships in 3-6 days

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

12

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 5

0

13

Toro 46-6432

SCREW-HANDLE

$14.99

$

Usually ships in 3-6 days

0

14

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

15

Toro 46-5520

LEVER-TRACTION

$

$

Not available

16

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

17

Toro 46-7970

ROPE ROD PLATED

$

$

Not available

18

Toro 46-7960

ROD CATCH

$19.99

$

Usually ships in 3-6 days

0

19

Toro 46-5481

CABLE-TRACTION

$65.99

$

In Stock, only 1 left!

0

20

Toro 46-8011

BRAKE CABLE

$

$

Not available

21

Toro 2210-251

RIVET

$

$

Not available
