20673 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1976) GRASS BAG ASSEMBLY Parts Diagram

Walk-Behind Mower

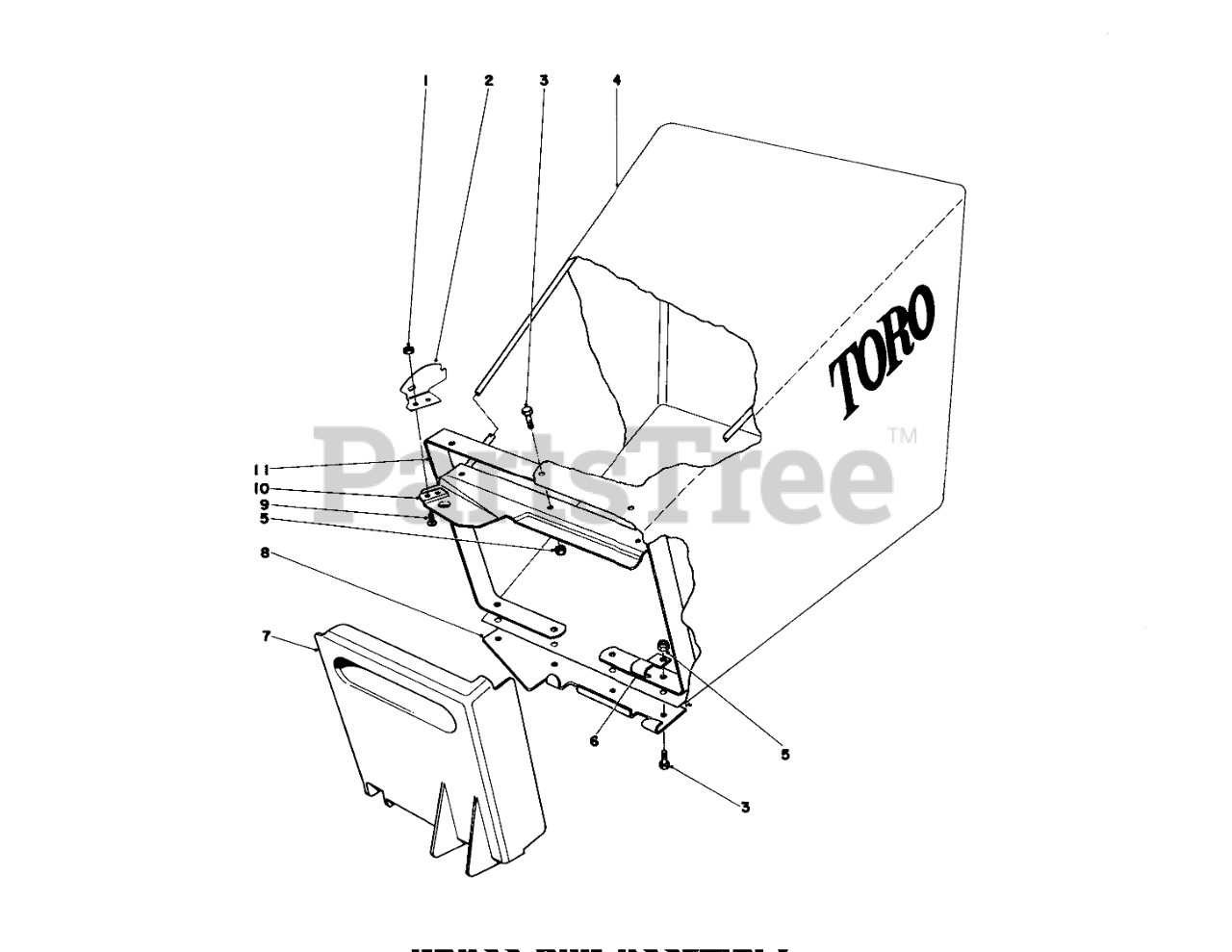

GRASS BAG ASSEMBLY Parts Diagram

  • Title

1

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

2

Toro 23-1060

Latch Bag

$

$

Not available

3

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

4

Toro 6-1389

REPLACMNT BAG 44-0530

$

$

Not available

5

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0

6

Toro 23-5100

SUPPORT BRACKET

$

$

Not available

7

Toro 23-1140

BAG DOOR

$181.99

$

Usually ships in 3-6 days

0

8

Toro 23-1150

DOOR BRACKET

$

$

Not available

9

Toro 25-3120

Screw

$

$

Not available

10

Toro 25-3230

Bag Frame
(Superseded to 27-8170)

$

$

Not available

11

Toro 23-1110

LOWER BAG FRAME

$128.99

$

Usually ships in 3-6 days

0

Toro 6-5689

Grass Bagging Kit (Incl. Ref. 1 thru 11)
(Superseded to 6-7859)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

$

$

Not available

Toro 6-5689

Grass Bagging Kit (Incl. Ref. 1 thru 11)
(Superseded to 6-7859)

Note: Not illustrated

$

$

Not available
