20672 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

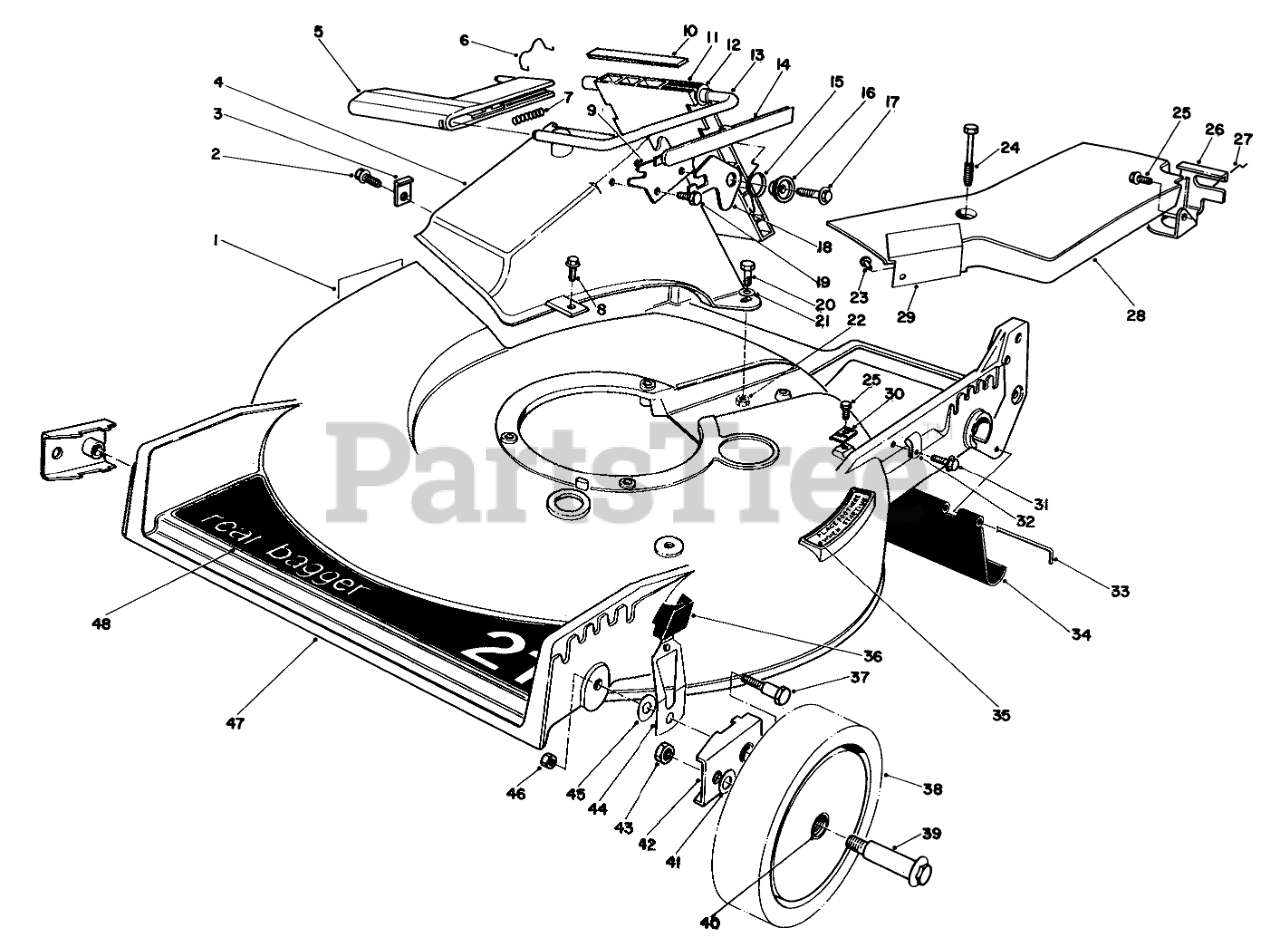

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 6

0

2

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

3

Toro 47-6540

TUNNEL CLIP

$

$

Not available

4

Toro 46-3500

Tunnel Discharge
(Superseded to 82-9151)

$164.99

$

Usually ships in 3-6 days

0

5

Toro 46-3520

Handle-Door

$

$

Not available

6

Toro 47-5840

DOOR RET SPRING

$

$

Not available

7

Toro 46-7060

Spring

$

$

Not available

8

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

9

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

10

Toro 46-6820

DOOR COVER

$

$

Not available

11

Toro 46-3510

Door Discharge
(Superseded to 77-0200)

$

$

Not available

12

Toro 23-0880

BUSHING-NYLON

$

$

Not available

13

Toro 46-3530

DOOR ROD +

$

$

Not available

14

Toro 46-7050

DOOR HANDLE COVER

$4.99

$

Usually ships in 3-6 days

0

15

Toro 33-4860

TORSION SPRING

$69.99

$

Usually ships in 3-6 days

0

16

Toro 43-4840

DOOR SPACER

$7.49

$

Usually ships in 3-6 days

0

17

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

18

Toro 42-4010

SAFETY LATCH

$

$

Not available

19

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

20

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 10

0

21

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

23

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

24

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

25

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

26

Toro 46-5870

Bracket-Traction Adj.
(Superseded to 82-5680-03)

$11.99

$

Usually ships in 3-6 days

0

27

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

28

Toro 38-8742

Belt Cover Assembly (Incl.Ref. #23 & 29)
(Superseded to 52-7404)

$71.99

$

Usually ships in 3-6 days

0

29

Toro 38-8730

HEAT SHIELD

$

$

Not available

30

Toro 46-5610

Cable Clamp
(Superseded to 62-3720)

$2.99

$

In Stock, only 3 left!

0

31

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

32

Toro 2412-83

CLAMP-CABLE

$

$

Not available

33

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 12

0

34

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 8

0

35

Toro 46-7370

STEP PAD DECAL

$24.99

$

Usually ships in 3-6 days

0

36

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

37

Toro 44-5270

PIVOT SCREW

$8.99

$

In Stock, Qty 8

0

38

Toro 44-0560

Wheel & Tire Assembly (Incl.Ref. #40)
(Superseded to 11-6349)

$

$

Not available

39

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

40

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 15

0

41

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

42

Toro 47-2940

HP PIVOT ARM ASM

$51.99

$

Usually ships in 3-6 days

0

43

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

44

Toro 44-0990

Spring Arm
(Superseded to 99-5260)

$47.99

$

Usually ships in 3-6 days

0

45

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

46

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

47

Toro 11-4099

Housing (Incl. Ref. #1 & 35)
(Superseded to 94-3707-01)

$

$

Not available

48

Toro 44-0450

DECK DECAL

$

$

Not available
