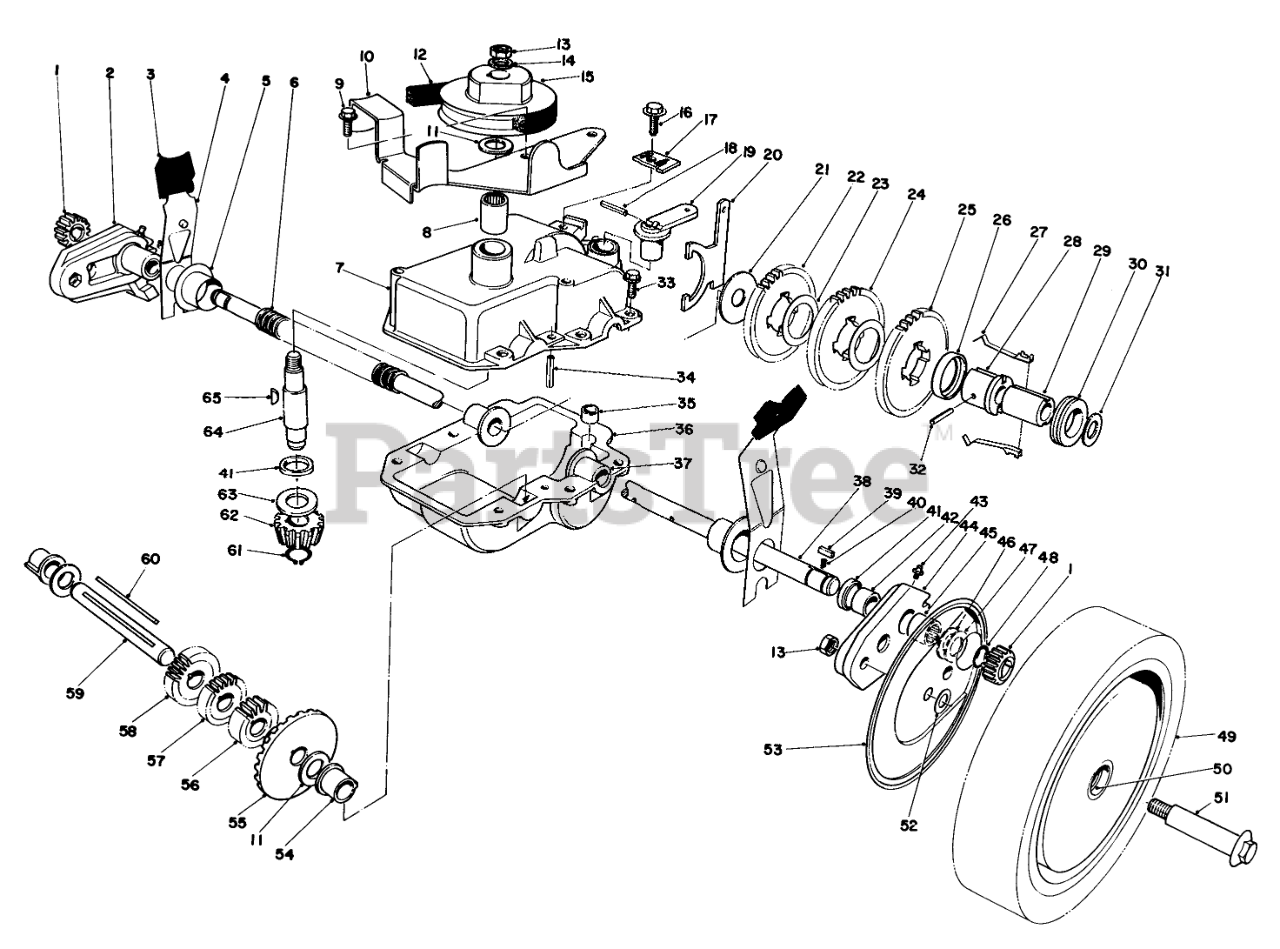

20672 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

GEAR CASE ASSEMBLY Parts Diagram

  • Title
1

Toro 39-9160

GEAR-PINION

$14.99

$

In Stock, Qty 5

0

2

Toro 29-9590

Pivot Arm Assembly-R.H.(Incl. Ref. #41-43 8 45)
(Superseded to 49-7720)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

4

Toro 44-1010

SPRING ARM ASM SP

$45.99

$

Usually ships in 3-6 days

0

5

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, only 2 left!

0

6

Toro 24-7922

CONDUIT-CONVOLUTED, SPLIT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 39-7282

Case-Upper

$

$

Not available

8

Toro 47-6720

BEARING

$40.99

$

Usually ships in 3-6 days

0

9

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

10

Toro 46-3570

Bracket-Belt Guide
(Superseded to 49-8460)

$

$

Not available

11

Toro 36-4790

WASHER-THRUST

$3.49

$

In Stock, only 2 left!

0

12

Toro 36-8070

V-BELT

$14.99

$

In Stock, Qty 15

0

13

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

14

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

15

Toro 39-6740

PULLEY

$54.99

$

Usually ships in 3-6 days

0

16

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

17

Toro 46-5610

Cable Clamp
(Superseded to 62-3720)

$2.99

$

In Stock, only 3 left!

0

18

Toro 32121-99

PIN-COIL

$1.49

$

In Stock, only 2 left!

0

19

Toro 29-9560

LEVER-SHIFT

$16.99

$

Usually ships in 3-6 days

0

20

Toro 29-9520

Shift Yoke
(Superseded to 60-8870)

$23.99

$

In Stock, only 2 left!

0

21

Toro 29-9690

WASHER

$13.99

$

Usually ships in 3-6 days

0

22

Toro 42-4740

GEAR-38T

$84.99

$

In Stock, only 2 left!

0

23

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

24

Toro 29-9271

GEAR-42T

$88.99

$

Usually ships in 3-6 days

0

25

$79.99

$

In Stock, only 1 left!

0

26

Toro 39-7830

KEY RETAINER

$

$

Not available

27

Toro 39-6470

Key
(Superseded to 29-9330)

$27.99

$

In Stock, only 3 left!

0

28

Toro 39-6730

Body-Sleeve
(Superseded to 55-8010)

$19.99

$

In Stock, only 4 left!

0

29

Toro 39-6720

SLEEVE

$16.99

$

Usually ships in 3-6 days

0

30

Toro 29-9340

COLLAR-SHIFT

$40.99

$

Usually ships in 3-6 days

0

31

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 7

0

32

Toro 32121-106

PIN-SPRING
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

33

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 2 left!

0

34

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$1.99

$

Usually ships in 3-6 days

0

35

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

36

Toro 29-9410

LOWER GEAR CASE CAST

$

$

Not available

37

Toro 47-5220

Bushing-Output Shaft

$

$

Not available

38

Toro 44-0850

Output Shaft
(Superseded to 12-6659)

$267.99

$

Usually ships in 3-6 days

0

39

Toro 39-9680

KEY RECTANGULAR

$5.99

$

In Stock, Qty 20+

0

40

Toro 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 13

0

41

$8.49

$

In Stock, only 2 left!

0

42

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

43

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

44

Toro 29-9640

Pivot Arm Assembly-L.H.(Incl. Ref. #41-43 & 45)
(Superseded to 49-7710)

$

$

Not available

45

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

46

Toro 252-73

Washer
(Superseded to 60-8030)

$

$

Not available

47

Toro 46-2840

THRUST WASHER

$

$

Not available

48

Toro 3215168

Retaining Ring

$

$

Currently unavailable

49

Toro 44-0570

Wheel, Tire & Gear Assembly (Incl. Ref. #50)
(Superseded to 11-6359)

$62.99

$

In Stock, only 2 left!

0

50

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

51

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

52

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

53

Toro 44-0600

WHEEL COVER

$

$

Not available

54

Toro 47-5210

BUSHING

$

$

Not available

55

Toro 39-6670

BEVEL GEAR

$

$

Not available

56

Toro 46-3540

GEAR-12T

$13.99

$

In Stock, Qty 5

0

57

Toro 46-3550

GEAR-14T

$21.99

$

Usually ships in 3-6 days

0

58

Toro 39-6650

GEAR-18T

$13.99

$

In Stock, only 2 left!

0

59

Toro 46-9470

INTERMEDIATE SHAFT

$

$

Not available

60

Toro 39-7841

Key Square
(Superseded to 39-7843)

$

$

Not available

61

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

62

Toro 39-6660

PINION-BEVEL

$39.99

$

In Stock, only 1 left!

0

63

Toro 47-2910

WASHER-THRUST

$13.99

$

In Stock, only 1 left!

0

64

Toro 39-6690

INPUT SHAFT

$

$

Not available

65

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

Toro 11-4139

Gear Case Complete
(Superseded to 12-7179)

Note: Not illustrated

$

$

Not available
