20671 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HOUSING ASSEMBLY (SERIAL NO. 9003508 9099999) Parts Diagram

Walk-Behind Mower

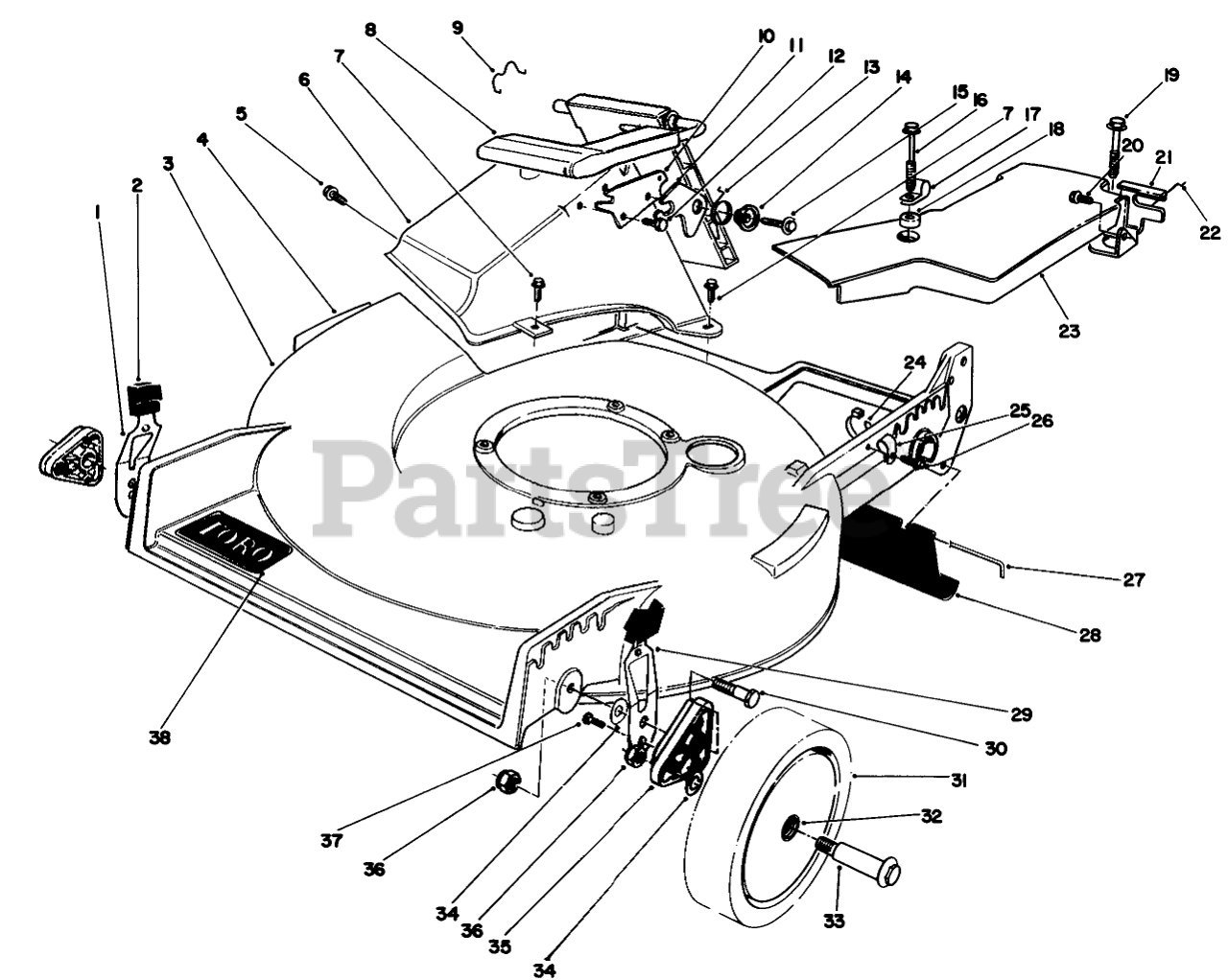

HOUSING ASSEMBLY (SERIAL NO. 9003508 9099999) Parts Diagram

  • Title
1

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$19.99

$

In Stock, only 1 left!

0

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

3

Toro 13-4679

Housing (Incl. Ref. #4 & 38)
(Superseded to 14-3489)

$863.99

$

Usually ships in 3-6 days

0

4

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

5

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, Qty 11

0

6

Toro 46-3500

Tunnel Discharge
(Superseded to 82-9151)

$192.99

$

Usually ships in 3-6 days

0

7

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

8

Toro 51-0201

Discharge Door Assembly
(Superseded to 77-0200)

$

$

Not available

9

Toro 47-5840

DOOR RET SPRING

$

$

Not available

10

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

11

Toro 424010

Latch-Door

$

$

Currently unavailable

12

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

13

Toro 33-4860

TORSION SPRING

$68.99

$

Usually ships in 3-6 days

0

14

Toro 434840

Latch Spacer

$

$

Currently unavailable

15

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

16

Toro 37-7262

SCREW-SPECIAL

$3.49

$

Usually ships in 3-6 days

0

17

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

18

Toro 3-5792

WASHER

$6.99

$

Usually ships in 3-6 days

0

19

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 12

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 62-3940

Bracket-Traction Adj.
(Superseded to 82-5680-03)

$14.99

$

Usually ships in 3-6 days

0

22

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

23

Toro 62-4314

Cover-Belt
(Superseded to 82-9911)

$

$

Not available

24

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

25

Toro 2412-83

CLAMP-CABLE

$

$

Not available

26

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

27

Toro 33-3208

ROD-SHIELD

$16.99

$

In Stock, Qty 12

0

28

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

29

Toro 71-0570

LH SPRING ARM ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

30

Toro 66-0561

SCREW-SHOULDER

$5.99

$

In Stock, only 1 left!

0

31

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #32)
(Superseded to 51-2751)

$34.99

$

In Stock, only 4 left!

0

32

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

33

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 7

0

34

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

35

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, Qty 6

0

36

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

37

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

38

Toro 71-0600

DECAL

$15.99

$

Usually ships in 3-6 days

0
