20671 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY (SERIAL NO. 9005856 9006399) Parts Diagram

Walk-Behind Mower

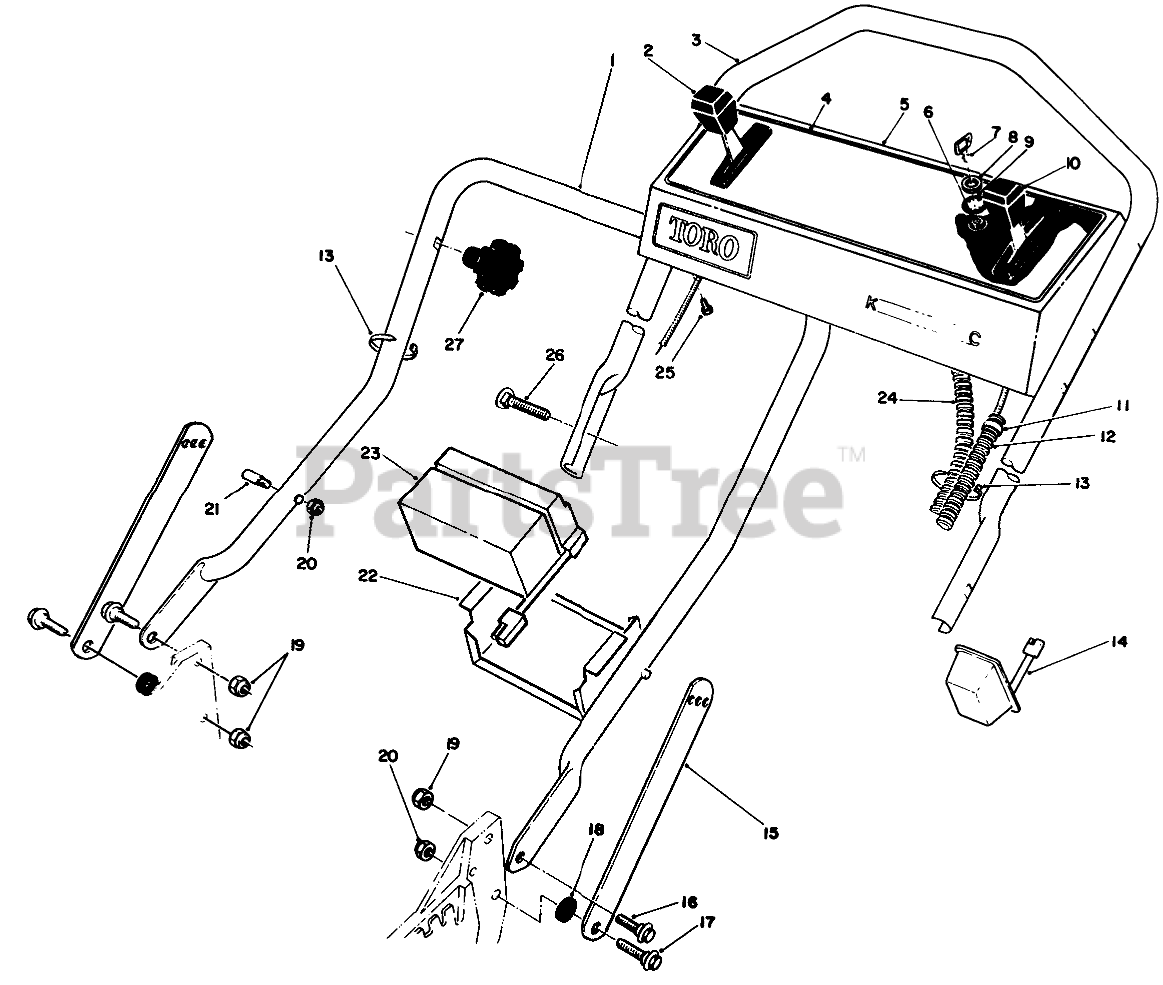

HANDLE ASSEMBLY (SERIAL NO. 9005856 9006399) Parts Diagram

  • Title

1

Toro 43-1361

LOWER HANDLE ASM

$

$

Not available

2

Toro 46-5431

GROUND SPEED CONTROL

$

$

Not available

3

Toro 46-5411

Handle-Upper
(Superseded to 84-8332)

$

$

Not available

4

Toro 70-2650

Decal-Instruction Panel

$

$

Not available

5

Toro 13-6529

PANEL W/DECAL

$

$

Not available

6

Toro 46-5780

Switch-Starter (Incl. Ref. #8-9)

$29.99

$

In Stock, only 1 left!

0

7

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

8

Toro 218461

Nut

$

$

Currently unavailable

9

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

10

Toro 67-9814

Control-Throttle (Sheath Lg. 55 1/2 inch, 140.9 cm.)(Wire Lg. 2 1/8 inch, 5.4 cm.)
(Superseded to 67-9810)

$

$

Not available

11

Toro 2412-50

FITTING-RING

$9.99

$

Usually ships in 3-6 days

0

12

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

13

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

14

Toro 6-9780

Charger
(Superseded to 131-0848)

$78.99

$

Usually ships in 3-6 days

0

15

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

16

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

17

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

18

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

21

Toro 49-2750

HANDLE PIN

$36.99

$

Usually ships in 3-6 days

0

22

Toro 63-8480

BATTERY RETAINER

$

$

Not available

23

Toro 63-8570

Battery
(Superseded to 99-5262)

$

$

Not available

24

Toro 46-5812

WIRE HARNESS

$148.99

$

Usually ships in 3-6 days

0

25

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

26

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, only 2 left!

0

27

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0
