20668 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) ENGINE MODEL 124702-3115-01 Parts Diagram

Walk-Behind Mower

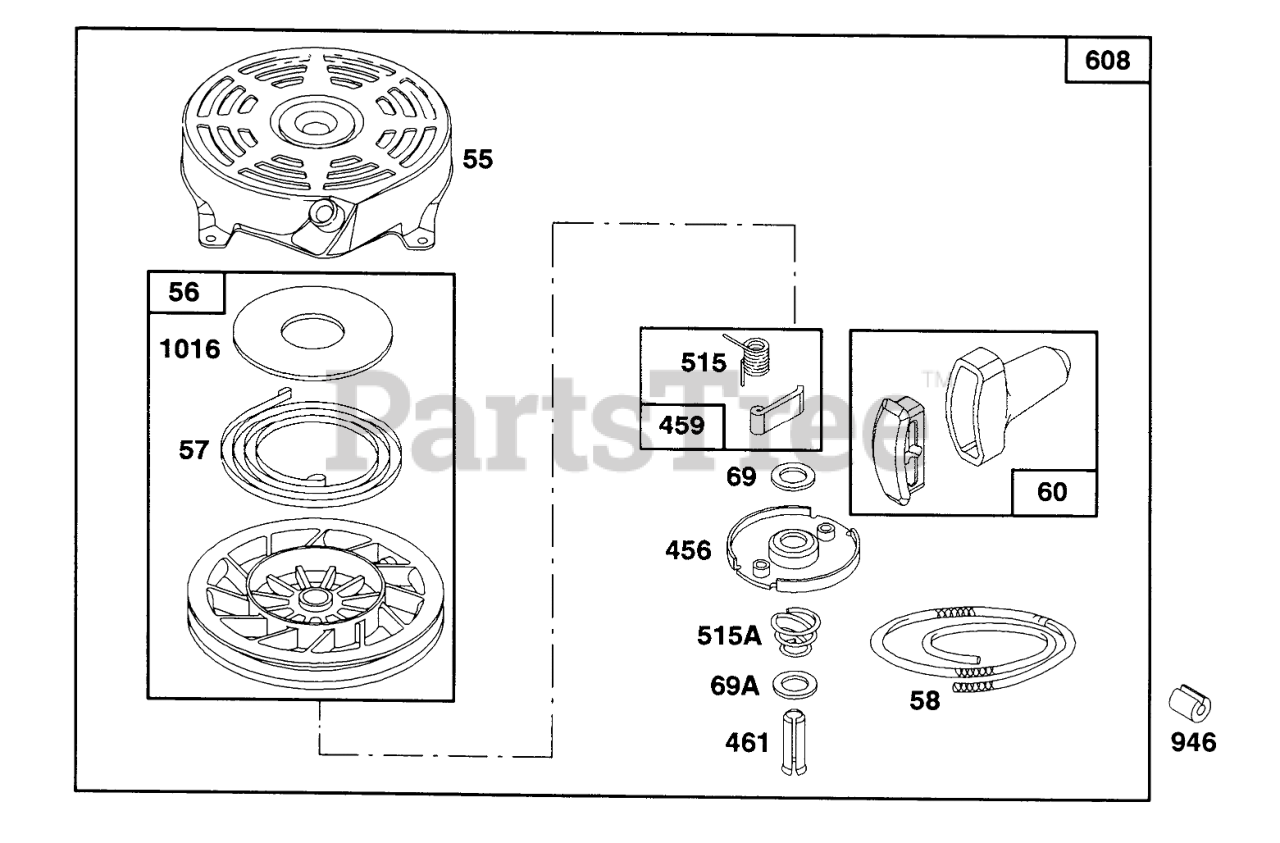

ENGINE MODEL 124702-3115-01 Parts Diagram

  • Title

55

Briggs & Stratton 492831

Housing-Starter

$74.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 492832

Pulley-Starter
(Superseded to 493824)

$

$

Not available

57

Briggs & Stratton 262594

Spring-Starter
(Superseded to 491889)

$15.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 280399

Rope?Starter (Cut to Required Length)
(Superseded to 280399S)

$5.99

$

In Stock, Qty 8

0

60

Briggs & Stratton 393152

Grip-Starter Rope

$4.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 280973

Washer

$5.49

$

Usually ships in 2-12 days

0

69A

Briggs & Stratton 224322

Washer

$5.49

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 224321

Retainer

$8.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 492833

PawI-Ratchet

$4.99

$

Usually ships in 2-12 days

0

461

Briggs & Stratton 262626

Pin-Shaft

$4.49

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 262556

Spring-Pawl
(Superseded to 492833)

$4.99

$

Usually ships in 2-12 days

0

515A

Briggs & Stratton 262625

Spring

$6.49

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 493295

Starter Assy.
(Superseded to 497598)

$75.99

$

In Stock, only 2 left!

0

946

Briggs & Stratton 223294

Stop Rope
(Superseded to 691738)

$5.99

$

In Stock, only 4 left!

0

1016

Briggs & Stratton 224278

Spacer

$3.49

$

Usually ships in 2-12 days

0
