20668 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) ENGINE MODEL NO. 124702-3115-01 Parts Diagram

Walk-Behind Mower

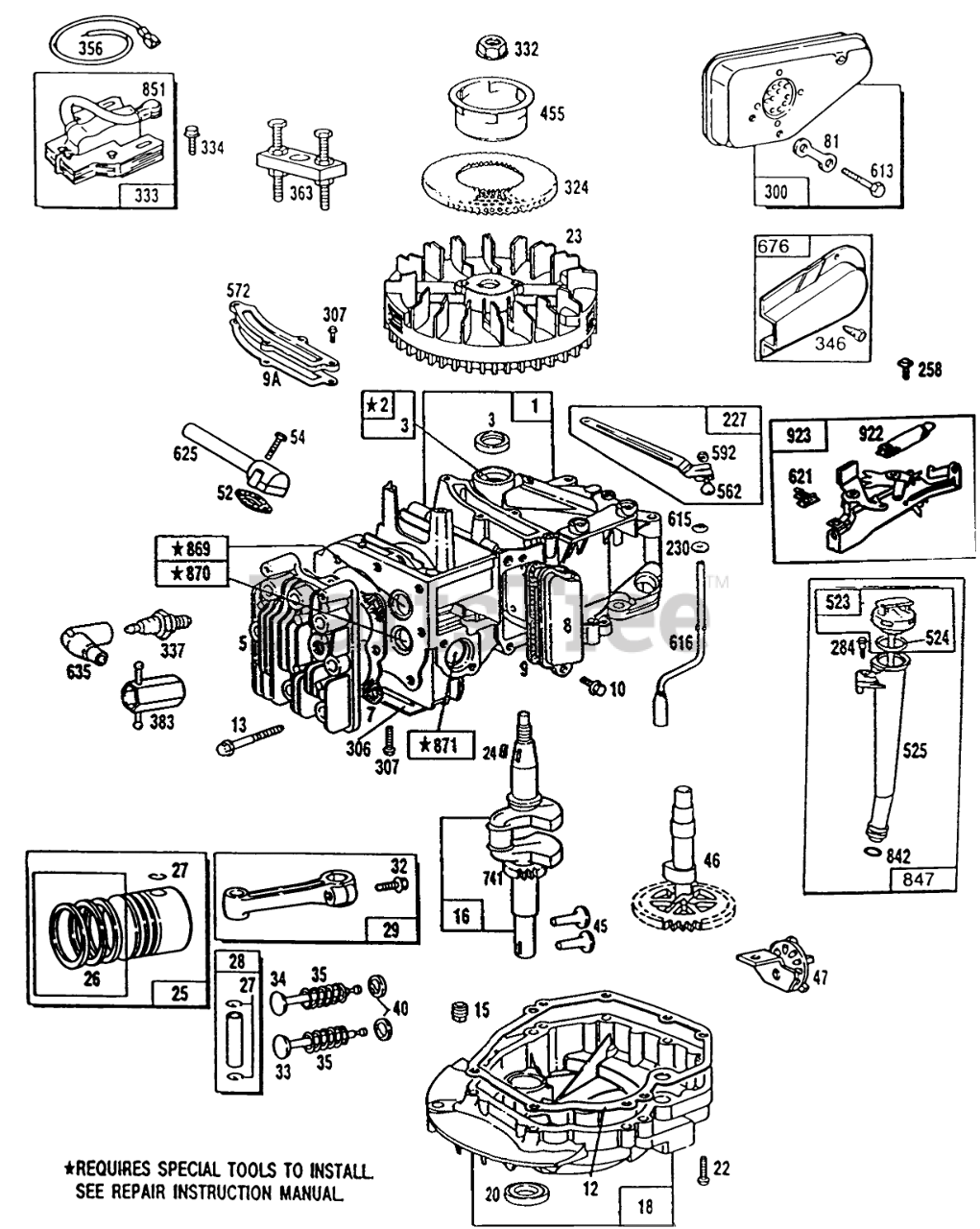

ENGINE MODEL NO. 124702-3115-01 Parts Diagram

  • Title

1

Briggs & Stratton 493260

Cylinder
(Superseded to 592645)

$295.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 393862

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

5

Briggs & Stratton 213610

Head-Cylinder
(Superseded to 594989)

$55.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272200

Gasket-Cylinder Hd
(Superseded to 272200S)

$

$

Not available

8

Briggs & Stratton 399717

Breather Chamber
(Superseded to 590395)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 271904

Gasket-Valve Cover
(Superseded to 699833)

$5.49

$

In Stock, only 1 left!

0

9A

Briggs & Stratton 272238

Gasket-Breather
(Superseded to 691879)

$6.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 94222

Mounting Sem
(Superseded to 94650)

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

$5.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 94547

Screw-Hex.
(Superseded to 690912)

$3.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 94239

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 493731

Shaft Note: Order 94388 For Timing Gear Key
(Superseded to 694443)

$127.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 493279

Sump-Engine

$120.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94220

Screw-Hex. Head
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 492177

Flywheel
(Superseded to 691987)

$112.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 493262

Piston Assy. (Std.)

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 493385

Piston Ass-y-.010" O.S.

$62.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 493386

Piston Ass-y-.020" O.S.

$

$

Not available

Briggs & Stratton 493387

Piston Ass-y-.030" O.S.

$62.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 493261

Ring Set (Std.)

$41.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 493388

Ring-.010" O. S.

$31.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 493389

Ring Set-.020" O.S.

$

$

Not available

Briggs & Stratton 493390

Ring Set-.030" O.S.

$29.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 2 left!

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 490566

Rod Ass-y-Con.

$39.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94405

Screw-Con. Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262651

Valve-Exhaust
(Superseded to 590394)

$24.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 262652

Valve-Intake
(Superseded to 590393)

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 262224

Spring-Value
(Superseded to 691270)

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 262204

Tappet-Valve
(Superseded to 690548)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 492830

Gear-Cam
(Superseded to 691449)

$73.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 492524

Oil Slinger Gear & Bracket
(Superseded to 691997)

$25.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

$4.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 94526

Screw-Hex
(Superseded to 691650)

$2.99

$

Usually ships in 2-12 days

0

81

Toro 233664

Lock-Muffler Screw

$

$

Not available

227

Briggs & Stratton 492349

Lever Ass-y. Gov.
(Superseded to 690783)

$15.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 67072

Washer
(Superseded to 690272)

$3.99

$

In Stock, only 1 left!

0

258

Briggs & Stratton 94512

Screw-Sem
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

284

Briggs & Stratton 94511

Screw-Hex.
(Superseded to 690940)

$3.99

$

In Stock, Qty 14

0

300

Briggs & Stratton 490547

Muffler-Exhaust
(Superseded to 692038)

$29.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 224324

Shield-Cylinder
(Superseded to 690450)

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

Screw-Sem
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

324

Briggs & Stratton 224251

Screen-Rotating
(Superseded to 224527)

$12.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 293918

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

356

Briggs & Stratton 398808

Wire Stop

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

455

Briggs & Stratton 224250

Cup-Starter

$9.49

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 493460

Cap with Dipstick-Oil Filter
(Superseded to 499621)

$17.99

$

In Stock, only 4 left!

0

524

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

$5.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 281019

Tube-Oil Filter
(Superseded to 495265)

$

$

Not available

562

Briggs & Stratton 92613

Bolt

$

$

Not available

572

Briggs & Stratton 224328

Cover-Breather
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

613

Briggs & Stratton 94231

Screw-Shoulder
(Superseded to 691340)

$4.99

$

In Stock, Qty 9

0

615

Briggs & Stratton 94474

Pushnut
(Superseded to 690340)

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 262578

Crank-Govemor
(Superseded to 698801)

$10.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

625

Briggs & Stratton 492717

Tube-Fuel Intake
(Superseded to 794305)

$

$

Not available

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

676

Briggs & Stratton 493871

Deflector-Muffler

$14.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262598

Gear-Timing
(Superseded to 691830)

$17.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 280966

O-Ring Seal
(Superseded to 692296)

$4.99

$

In Stock, Qty 7

0

847

Briggs & Stratton 493459

Tube Ass-y-Oil Fill
(Superseded to 692047)

$

$

Not available

851

Briggs & Stratton 492916

Terminal-Ignition Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 213512

Seat-IntakeValve
(Superseded to 691155)

$8.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 213513

Exhaust Valve Seat
(Superseded to 690380)

$

$

Not available

871

Briggs & Stratton 262001

Bushing-Guide

$13.99

$

Usually ships in 2-12 days

0

922

Briggs & Stratton 262640

Brake Spring
(Superseded to 691831)

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 492918

Brake Ass-y
(Superseded to 796387)

$

$

Not available
