20666 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

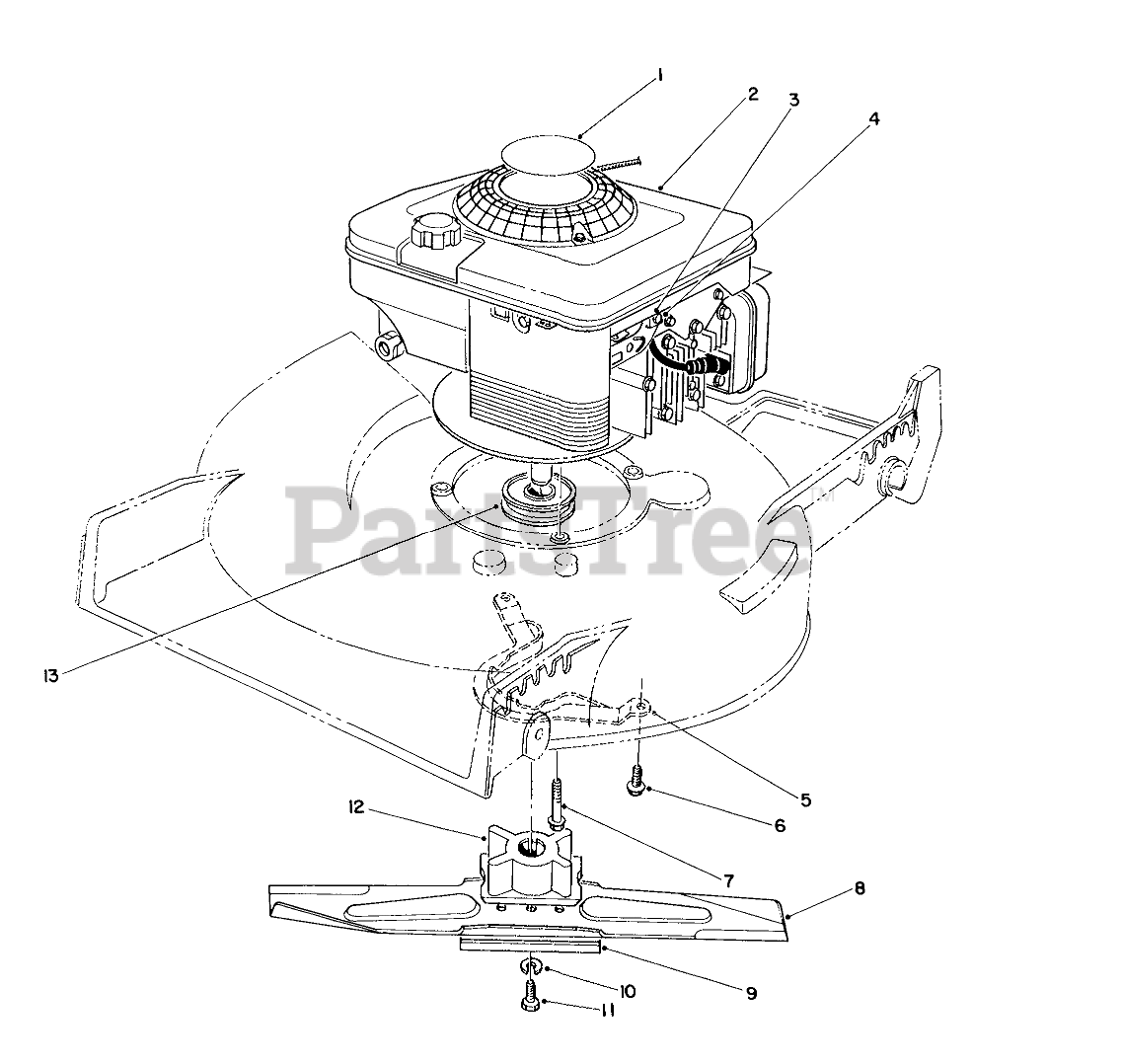

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 75-9400

DECAL - ENGINE

$

$

Not available

2

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

3

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

4

Toro 2210-313

Screw
(Superseded to 86-7990)

$3.49

$

Usually ships in 3-6 days

0

5

Toro 40-5720

BELT GUIDE

$

$

Not available

6

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

7

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 75-9420

Blade
(Superseded to 91-2256-03)

$31.99

$

In Stock, only 1 left!

0

9

Toro 46-2980

Stiffener-Blade
(Superseded to 80-0510-03)

$17.99

$

In Stock, Qty 7

0

10

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

11

Toro 26-0670

SCREW-BLADE

$

$

Not available

12

Toro 62-7540

BLADE RETAINER

$83.99

$

In Stock, only 1 left!

0

13

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available
