20665x31A - Scotts 20" Walk-Behind Mower (1999) Handle And Bag Assembly Parts Diagram

20" Walk-Behind Mower

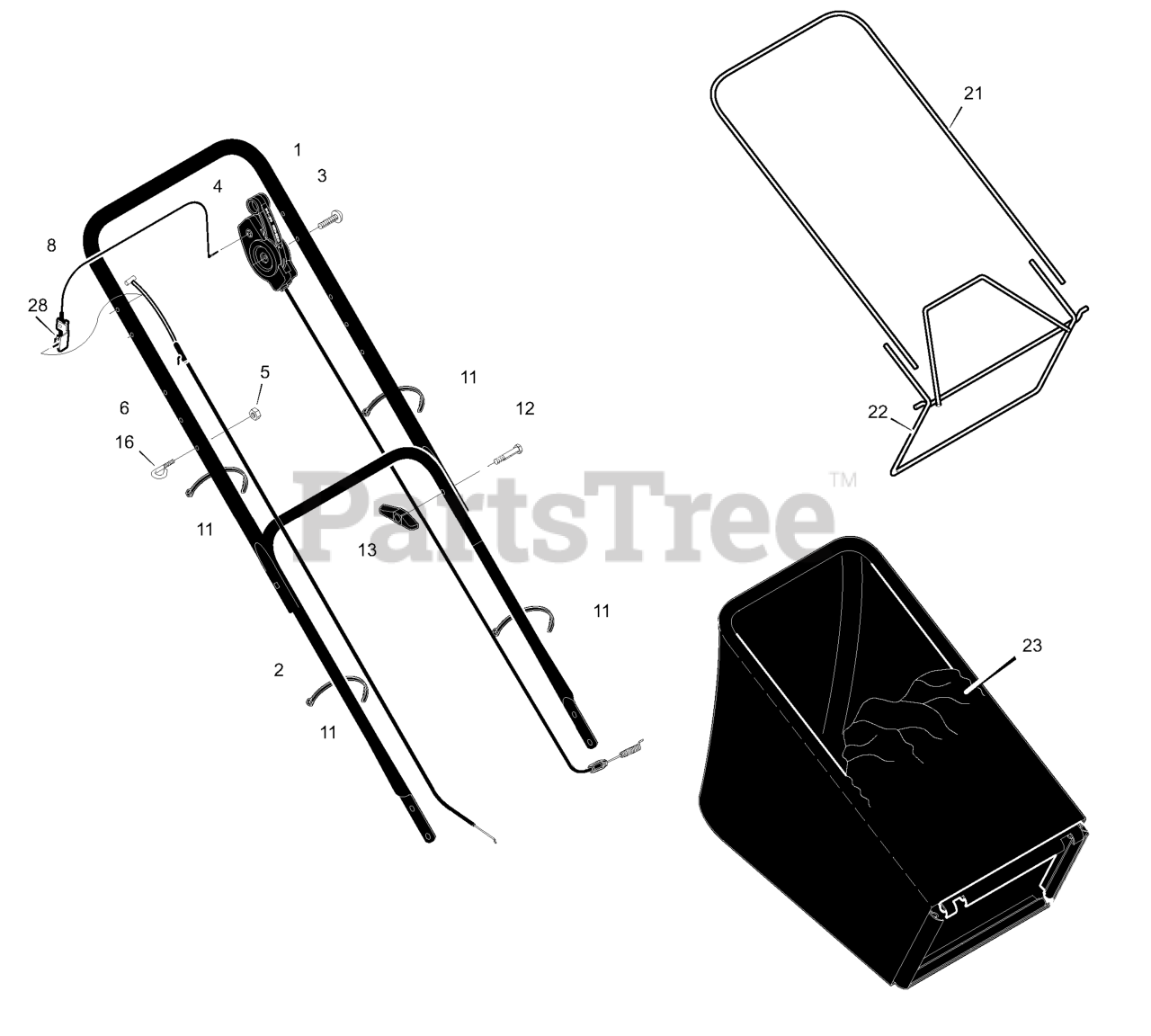

Handle And Bag Assembly Parts Diagram

  • Title

1

Murray 672665E701

Handle, Upper

$10.99

$

Usually ships in 2-12 days

0

2

Murray 671917E701

Handle, Lower

$

$

Not available

3

Murray 26X286MA

Bolt

$5.99

$

Usually ships in 2-12 days

0

4

Murray 672580MA

Control, Drive

$66.99

$

Usually ships in 2-12 days

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 672551MA

Cable, Stop

$32.99

$

Usually ships in 2-12 days

0

8

Murray 672570E701

Engine Stop Lever

$

$

Currently unavailable

11

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

16

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

21

Murray 071592MA

Frame, Top

$

$

Not available

22

Murray 672614

Frame Assembly

$

$

Not available

23

Murray 672199MA

Bag, Cloth
(Superseded to 24201MA)

$

$

Not available

28

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable
