20661 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE BRIGGS & STRATTON MODEL NO. 110908-1204-01 Parts Diagram

Walk-Behind Mower

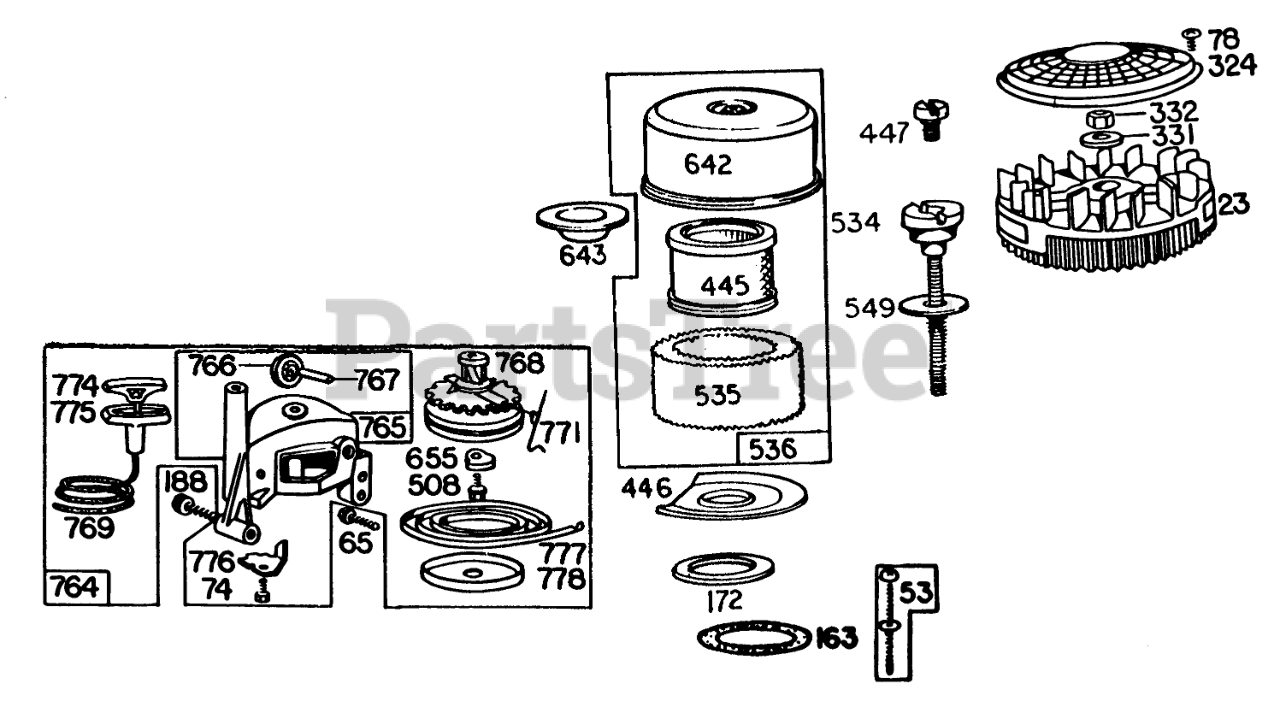

ENGINE BRIGGS & STRATTON MODEL NO. 110908-1204-01 Parts Diagram

  • Title

23

Briggs & Stratton 391488

Flywheel-Magneto
(Superseded to 496896)

$99.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 391982

Screw-Carb. Mtg.

$4.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 93587

Screw-Starter Mounting
(Superseded to 691083)

$5.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

78

Briggs & Stratton 93758

Screw-Sem
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271139

Gasket-Air Cleaner
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

172

Briggs & Stratton 271077

Gasket-Air Cleaner
(Superseded to 270055)

$

$

Not available

188

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

324

Briggs & Stratton 280140

Screen-Rotating
(Superseded to 280784)

$9.49

$

Usually ships in 2-12 days

0

331

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

445

Briggs & Stratton 392308

Cartridge-Air Cleaner
(Superseded to 392308S)

$16.99

$

Usually ships in 2-12 days

0

446

Briggs & Stratton 222844

Base-Air Cleaner
(Superseded to 691735)

$17.99

$

Usually ships in 2-12 days

0

447

Briggs & Stratton 93913

Screw-Cover Mtg.

$3.99

$

In Stock, only 1 left!

0

508

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

534

Briggs & Stratton 94005

Screw-Air Cleaner (Internal)

$16.99

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 270979

Element-Air Cleaner
(Superseded to 271466)

$4.49

$

In Stock, Qty 20+

0

536

Briggs & Stratton 392368

Cleaner Assy.-Air

$50.99

$

Usually ships in 2-12 days

0

549

Briggs & Stratton 270978

Washer-Air Cleaner

$5.49

$

In Stock, only 1 left!

0

642

Briggs & Stratton 222626

Cover Air Cleaner

$

$

Not available

643

Briggs & Stratton 222594

Cup-Air Cleaner

$4.49

$

In Stock, only 1 left!

0

655

Briggs & Stratton 222057

Anchor-Spring

$6.99

$

Usually ships in 2-12 days

0

764

Briggs & Stratton 396082

Starter Assy.-Vertical Pull

$50.99

$

Usually ships in 2-12 days

0

765

Briggs & Stratton 395914

Housing-Vertical Pull Starter

$55.99

$

Usually ships in 2-12 days

0

766

Briggs & Stratton 280022

Duct Body

$11.99

$

Usually ships in 2-12 days

0

767

Briggs & Stratton 231048

Pin-Small Rope Pulley

$3.49

$

Usually ships in 2-12 days

0

768

Briggs & Stratton 299948

Pulley and Gear Assy.

$22.99

$

Usually ships in 2-12 days

0

769

Briggs & Stratton 66734

Rope-Starter (48.6")

$6.49

$

In Stock, Qty 11

0

771

Briggs & Stratton 299961

Clip-Starter

$6.49

$

Usually ships in 2-12 days

0

774

Briggs & Stratton 280121

Insert-Starter Handle
(Superseded to 393152)

$4.99

$

Usually ships in 2-12 days

0

775

Briggs & Stratton 280036

Grip-Starter Rope
(Superseded to 393152)

$4.99

$

Usually ships in 2-12 days

0

776

Toro 22049

Guide-Rope

$

$

Currently unavailable

777

Briggs & Stratton 390066

Spring-Starter

$20.99

$

In Stock, only 1 left!

0

778

Briggs & Stratton 280021

Cover-Starter

$

$

Not available
