20660 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1975) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

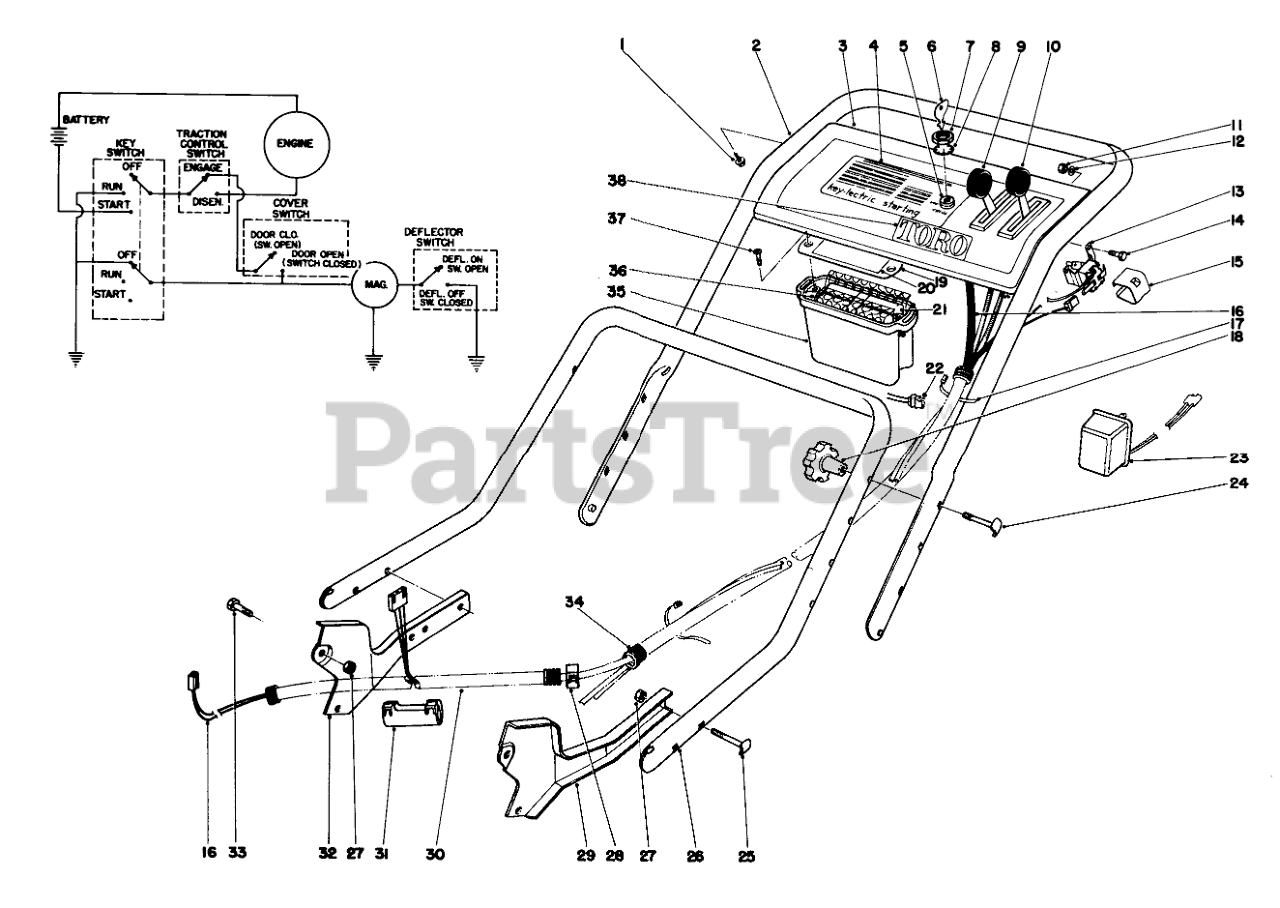

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 23-0580

Upper Handle

$

$

Not available

3

Toro 23-0590

Control Plate

$

$

Currently unavailable

4

Toro 25-1820

Decal-Control Plate

$

$

Currently unavailable

5

Toro 23-0660

SWITCH-STARTER

$23.99

$

In Stock, only 1 left!

0

6

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

8

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

9

Toro 20-9780

SPEED CONTROL

$

$

Not available

10

Toro 25-1170

Traction Control
(Superseded to 46-6040)

$

$

Not available

11

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

12

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro 24-9760

CONTROL SWITCH

$112.99

$

Usually ships in 3-6 days

0

14

Toro 3290-124

SCREW-HH

$

$

Not available

15

Toro 25-1590

Cover Switch

$

$

Not available

16

Toro 25-0100

Wiring Harness

$

$

Not available

17

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

18

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

19

Toro 6-8230

Cover

$

$

Not available

20

Toro 25-4020

Decal Battery

$

$

Not available

21

Toro 24-7750

12 Cell Battery Pack

$

$

Not available

22

Toro 11-3790

Plug & Wire
(Superseded to 49-8141)

$

$

Not available

23

Toro 6-9780

Charger
(Superseded to 131-0848)

$78.99

$

Usually ships in 3-6 days

0

24

Toro 6-6330

HANDLE SCREW

$

$

Not available

25

Toro 23-9140

Handle Screw

$

$

Currently unavailable

26

Toro 25-2230

Lower Handle

$

$

Currently unavailable

27

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

28

Toro 2412-48

RING FITTING

$

$

Not available

29

Toro 25-2220

Latch Handle L.H.

$

$

Currently unavailable

30

Toro 25-1180

WIRING HARNESS COVER
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

31

Toro 2412-49

Breakout Fitting

$

$

Not available

32

Toro 25-2210

RH HANDLE LATCH

$

$

Not available

33

Toro 3224

Screw

$

$

Currently unavailable

34

Toro 25-1190

Upper Wiring Harness

$

$

Not available

35

Toro 6-9750

Container Pack

$

$

Not available

36

Toro 6-8320

Spacer

$

$

Not available

37

Toro 32104-93

Screw

$

$

Not available

38

Toro 204690

Decal

$

$

Currently unavailable

Toro 24-8750

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable

Toro 5-3556

Starter Rope

Note: Not illustrated

$

$

Currently unavailable
