20657 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1977) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

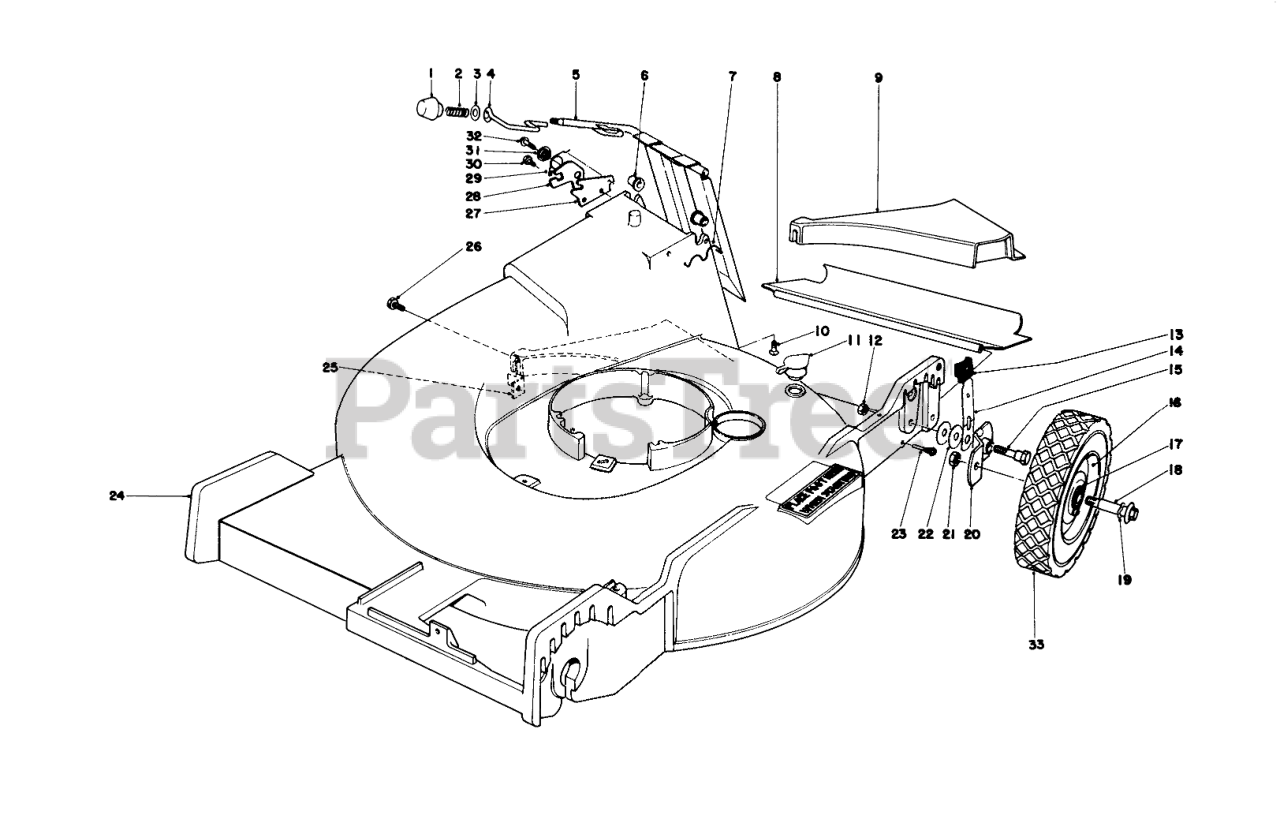

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 233-37

KNOB

$33.99

$

Usually ships in 3-6 days

0

2

Toro 23-0920

COMPRESSION SPRING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 23-1120

WASHER

$20.99

$

Usually ships in 3-6 days

0

4

Toro 23-0940

DOOR LATCH

$

$

Not available

5

Toro 27-7910

Door Handle

$

$

Not available

6

Toro 23-0880

BUSHING-NYLON

$

$

Not available

7

Toro 23-0200

Door Retainer
(Superseded to 33-4830)

$

$

Not available

8

Toro 23-0560

REAR SAFETY SHIELD

$

$

Not available

9

Toro 23-0360

REAR INSERT

$

$

Not available

10

Toro 32144-17

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

11

Toro 6-4500

WASHOUT PLUG

$

$

Not available

12

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

13

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

14

Toro 25-8000

SPRING ARM ASM

$

$

Not available

15

Toro 25-3440

PIVOT SCREW

$

$

Not available

16

Toro 26-2960

Wheel & Tire Assembly (Incl. Ref. #17 & 33)
(Superseded to 11-1309)

$124.99

$

Usually ships in 3-6 days

0

17

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

18

Toro 3-2652

Bolt

$

$

Not available

19

Toro 3290-393

SPRING WASHER

$5.49

$

Usually ships in 3-6 days

0

20

Toro 24-7710

PIVOT ARM ASM A

$147.99

$

Usually ships in 3-6 days

0

Toro 23-9120

PIVOT ARM ASM B

Note: Not illustrated

$

$

Not available

21

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

22

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

23

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

24

Toro 6-4659

Housing

$

$

Not available

25

Toro 26-0660

SPECIAL NUT

$

$

Not available

26

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

27

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

28

Toro 23-1190

Latch Safety
(Superseded to 42-4010)

$

$

Not available

29

Toro 23-1200

TORSION SPRING

$

$

Not available

30

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

31

Toro 23-1180

Latch Spacer

$

$

Not available

32

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

33

Toro 5-3543

TIRE

$

$

Not available

Toro 26-9510

Replacement Stud Kit

Note: Not illustrated

$

$

Not available
