20656 - Toro 55cm Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) REAR AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

55cm Recycler Walk-Behind Mower

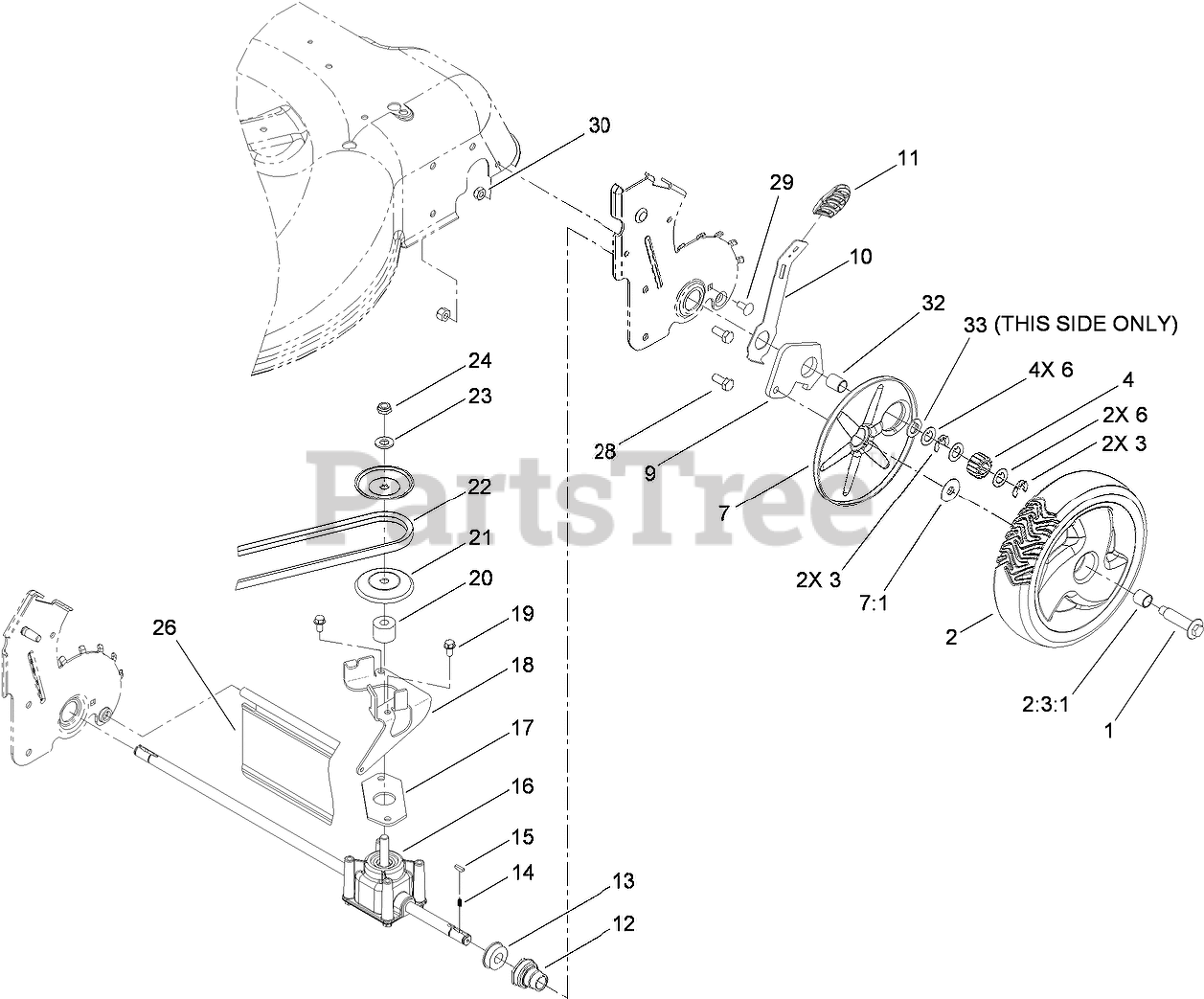

REAR AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

2

Toro 105-3036

Wheel Gear ASM

$60.99

$

In Stock, Qty 11

0

2:3:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

2:3

WHEEL ASM

Note: Not serviced separately

$

$

Not available

3

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

4

Toro 105-3040

Gear-Pinion, 15t

$5.49

$

In Stock, Qty 20+

0

6

Toro 105-6840

Washer-Thrust

$2.49

$

In Stock, Qty 20+

0

7

Toro 110-1792

WHEEL COVER ASM
(Superseded to 127-6840)

$5.99

$

In Stock, Qty 20+

0

7:1

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

9

Toro 108-9781

ARM-PIVOT, REAR

$20.99

$

In Stock, Qty 13

0

10

Toro 108-9780

ARM-SPRING

$10.99

$

In Stock, only 3 left!

0

11

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, Qty 20+

0

12

Toro 108-9779

RETAINER-BUSHING, HOC

$13.99

$

In Stock, Qty 20+

0

13

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 20+

0

14

Toro 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 20+

0

15

$2.49

$

In Stock, Qty 20+

0

16

Toro 106-3956

TRANSMISSION ASM

$125.99

$

In Stock, only 3 left!

0

17

Toro 108-9756

GASKET-GEARBOX

$1.49

$

In Stock, Qty 11

0

18

Toro 106-6809-03

BRACKET-PIVOT

$12.99

$

In Stock, only 1 left!

0

19

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

Toro 92-5791

SPACER

$10.99

$

In Stock, Qty 17

0

21

Toro 100-1176

PULLEY-HALF

$9.99

$

In Stock, Qty 6

0

22

Toro 91-2258

BELT-V

$18.99

$

In Stock, Qty 20+

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

26

Toro 114-1585

SHIELD-TRAILING

$25.99

$

In Stock, only 3 left!

0

28

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

30

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

32

Toro 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 20+

0

33

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0
