20656 - Toro 55cm Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) DECK, SIDE CHUTE AND REAR DOOR ASSEMBLY Parts Diagram

55cm Recycler Walk-Behind Mower

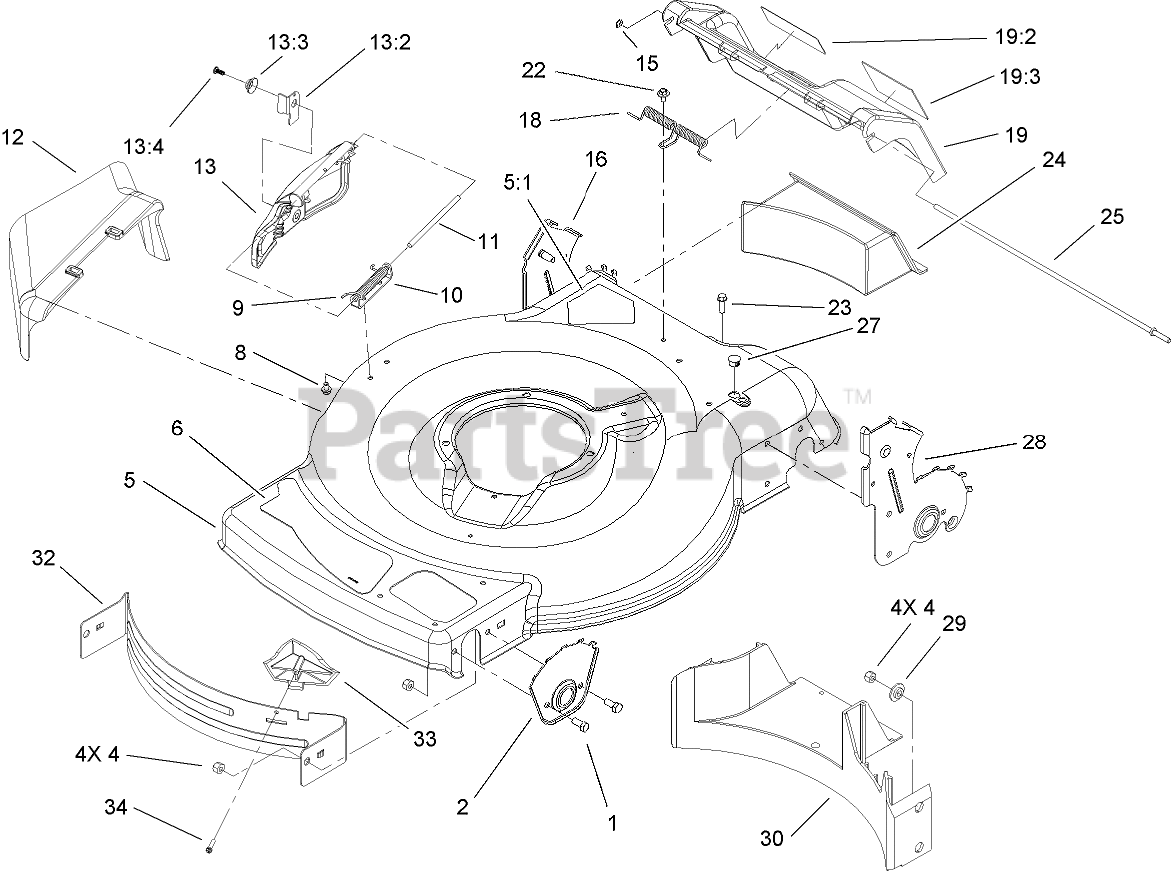

DECK, SIDE CHUTE AND REAR DOOR ASSEMBLY Parts Diagram

  • Title
1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

2

Toro 105-1808-03

Plate-HOC, Front

$

$

Not available

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 104-7916

HOUSING

$

$

Not available

5:1

Toro 112-8760

DECAL-DANGER

$11.99

$

In Stock, Qty 5

0

6

Toro 105-1297

Decal-Deck

$

$

Not available

8

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

9

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

10

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, only 3 left!

0

11

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 14

0

12

Toro 105-3028

CHUTE-DISCHARGE, SIDE

$11.99

$

In Stock, Qty 5

0

13

Toro 106-8376

DISCHARGE DOOR ASM

$15.99

$

In Stock, only 1 left!

0

13:2

Toro 107-0795

LATCH-DOOR

$1.49

$

In Stock, only 3 left!

0

13:3

Toro 107-7456

CAP-DOOR
(Superseded to 138-3242)

$3.99

$

In Stock, only 4 left!

0

13:4

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 8

0

15

Toro 32112-6

NUT-PUSH

$6.49

$

In Stock, only 4 left!

0

16

Toro 112-6441

8 INCH RH HOC PLATE ASM

$

$

Not available

18

Toro 105-3032

Spring-Door, Rear

$21.99

$

In Stock, only 1 left!

0

19

Toro 105-1324

REAR DOOR ASM

$96.99

$

Usually ships in 3-6 days

0

19:2

Toro 112-8759

DECAL-WARNING

$18.99

$

Usually ships in 3-6 days

0

19:3

Toro 104-7908

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

22

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

23

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

24

Toro 105-1842

Plug-Discharge, Rear

$12.99

$

Usually ships in 3-6 days

0

25

Toro 105-1827

Rod-Pivot, Rear Door

$12.99

$

Usually ships in 3-6 days

0

27

Toro 104-9369

Plug-Dome

$1.49

$

In Stock, only 1 left!

0

28

Toro 112-6443

8 INCH LH HOC PLATE ASM

$31.99

$

Usually ships in 3-6 days

0

29

Toro 105-3006

Washer-Stepped

$2.99

$

In Stock, only 1 left!

0

30

Toro 105-1834

Baffle-Rear

$54.99

$

Usually ships in 3-6 days

0

32

Toro 107-0793-03

BAFFLE-FRONT

$122.99

$

Usually ships in 3-6 days

0

33

Toro 107-0752

KICKER-FRONT

$19.99

$

Usually ships in 3-6 days

0

34

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0
