20656 - Toro 55cm Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) ELECTRIC START ASSEMBLY Parts Diagram

55cm Recycler Walk-Behind Mower

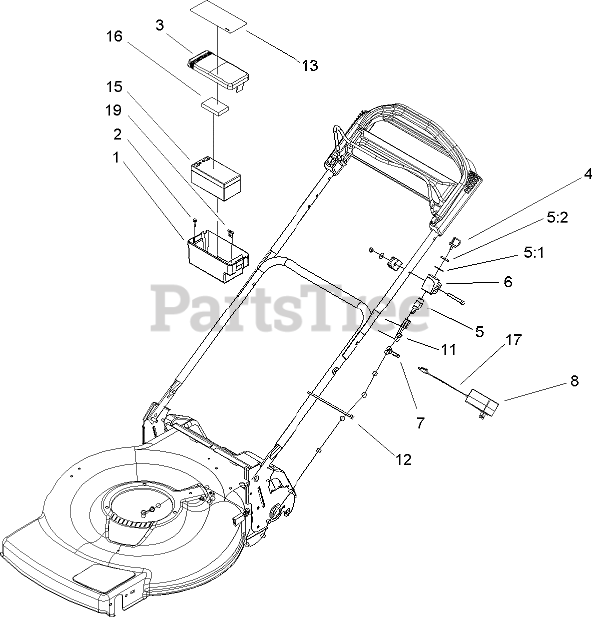

ELECTRIC START ASSEMBLY Parts Diagram

  • Title

1

Toro 107-3757

BOX-BATTERY
(Superseded to 108-4844)

$23.99

$

Usually ships in 3-6 days

0

2

Toro 104-7648

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

3

Toro 108-3764

COVER-BOX, BATTERY
(Superseded to 108-4844)

$23.99

$

Usually ships in 3-6 days

0

4

Toro 700918

KEY

$6.49

$

In Stock, Qty 11

0

5

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

5:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

5:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

6

Toro 104-8692

Mount-Switch
(Superseded to 108-9760)

$5.99

$

In Stock, only 1 left!

0

7

Toro 106-8378

HARNESS-WIRE

$89.99

$

In Stock, only 2 left!

0

8

Toro 98-2391

CHARGER-EUROPEAN, 12V DC

$60.99

$

Usually ships in 3-6 days

0

11

Toro 104-7953

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

12

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

13

Toro 108-4791

DECAL-INSTRUCTIONAL

$6.49

$

Usually ships in 3-6 days

0

15

Toro 106-8397

BATTERY-WET

$79.99

$

In Stock, only 1 left!

0

16

Toro 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

17

Toro 107-3749

ADAPTER-CHARGER

$26.99

$

Usually ships in 3-6 days

0

19

Toro 99-6124

FUSE-40 AMP

$4.99

$

In Stock, Qty 8

0
