20655 - Toro 55cm Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) ENGINE AND BLADE ASSEMBLY Parts Diagram

55cm Recycler Walk-Behind Mower

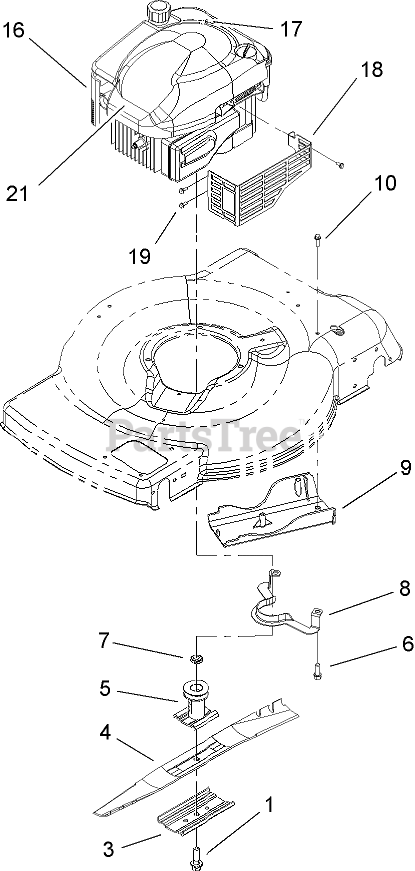

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

3

Toro 105-6848-03

Accelerator-Blade

$18.99

$

In Stock, only 1 left!

0

4

Toro 108-9783-03

BLADE
(Superseded to 131-9683-03)

$31.99

$

In Stock, only 3 left!

0

5

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

8

Toro 105-3030-03

Guide-Belt

$14.99

$

In Stock, only 1 left!

0

9

Toro 105-1835

Cover-Belt, Rear

$18.99

$

In Stock, only 1 left!

0

10

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

16

ENGINE-Briggs and Stratton, 122K02-0172-E1

Note: Not serviced separately

$

$

Not available

16

ENGINE-Briggs and Stratton, 122K02-0172-E1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

17

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

18

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

19

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 8

0

21

Toro 114-2605

DECAL

$

$

Not available
