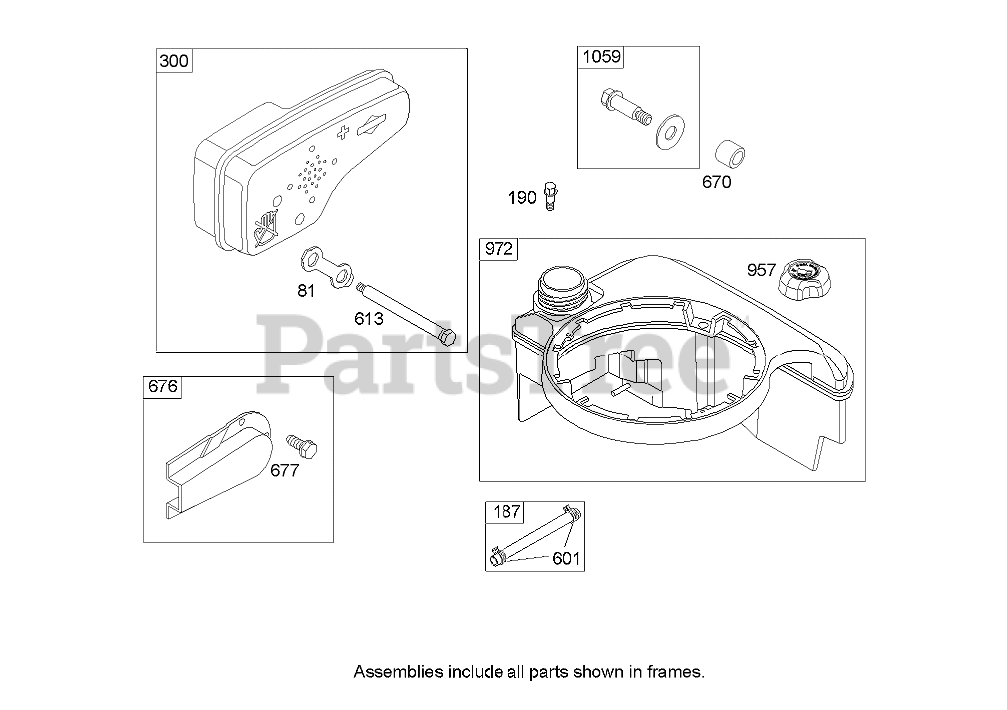

20655 - Toro 55cm Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 122K02-0172-E1 Parts Diagram

55cm Recycler Walk-Behind Mower

MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 122K02-0172-E1 Parts Diagram

  • Title
81

Briggs & Stratton 691740

Lock-Screw, Muffler

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 5

0

187

Briggs & Stratton 691050

Line-Fuel (Cut to Required Length)
(Superseded to 791766)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

190

Briggs & Stratton 690940

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

300

Briggs & Stratton 692038

Muffler

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 95162

Clamp-Hose
(Superseded to 791850)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 691340

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 7

0

670

Briggs & Stratton 692294

Spacer-Tank, Fuel

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 5

0

676

Briggs & Stratton 493871

Deflector-Muffler

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 690661

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 8

0

957

Briggs & Stratton 692046

Cap-Tank, Fuel

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

972

Briggs & Stratton 699374

Tank-Fuel

Note: Obtain parts from www.briggsandstratton.com

$64.99

$

In Stock, Qty 20+

0

1059

Briggs & Stratton 692311

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0
