20654 - Toro 50cm Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) GOVERNOR ASSEMBLY BRIGGS AND STRATTON 12H802-2032-B1 Parts Diagram

50cm Recycler Walk-Behind Mower

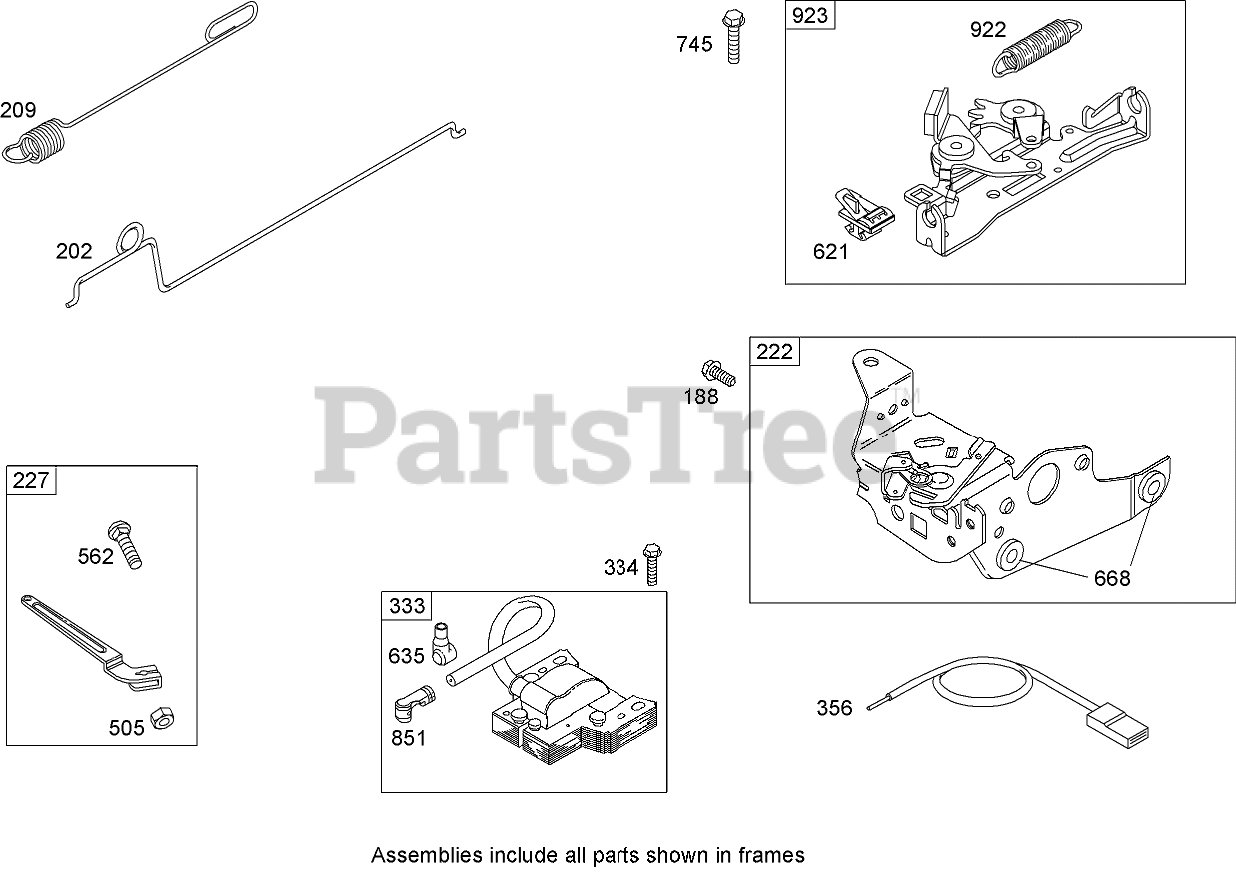

GOVERNOR ASSEMBLY BRIGGS AND STRATTON 12H802-2032-B1 Parts Diagram

  • Title
188

Briggs & Stratton 690877

Screw (Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

202

Briggs & Stratton 691829

Link-Governor, Mechanical

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 691852

Spring-Governor

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 791128

Bracket-Control
(Superseded to 793754)

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 690783

Lever-Control, Governor

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 793353

Armature-Magneto
(Superseded to 590455)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

334

Briggs & Stratton 691061

Screw (Magneto Armature)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

Wire-Stop

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

505

Briggs & Stratton 691251

Nut (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691119

Bolt (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 17

0

621

Briggs & Stratton 692310

Switch-Stop

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

635

Briggs & Stratton 793351

Shield-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

668

Briggs & Stratton 493823

Spacer

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 1 left!

0

668

Briggs & Stratton 493823

Spacer

Note: Included in Engine Gasket Set (Ref. No. 358)

$6.49

$

In Stock, only 1 left!

0

745

Briggs & Stratton 691648

Screw (Brake)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

922

Briggs & Stratton 691831

Spring-Brake

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 691994

Brake ASM
(Superseded to 796387)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available
