20654 - Toro 50cm Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 12H802-2032-B1 Parts Diagram

50cm Recycler Walk-Behind Mower

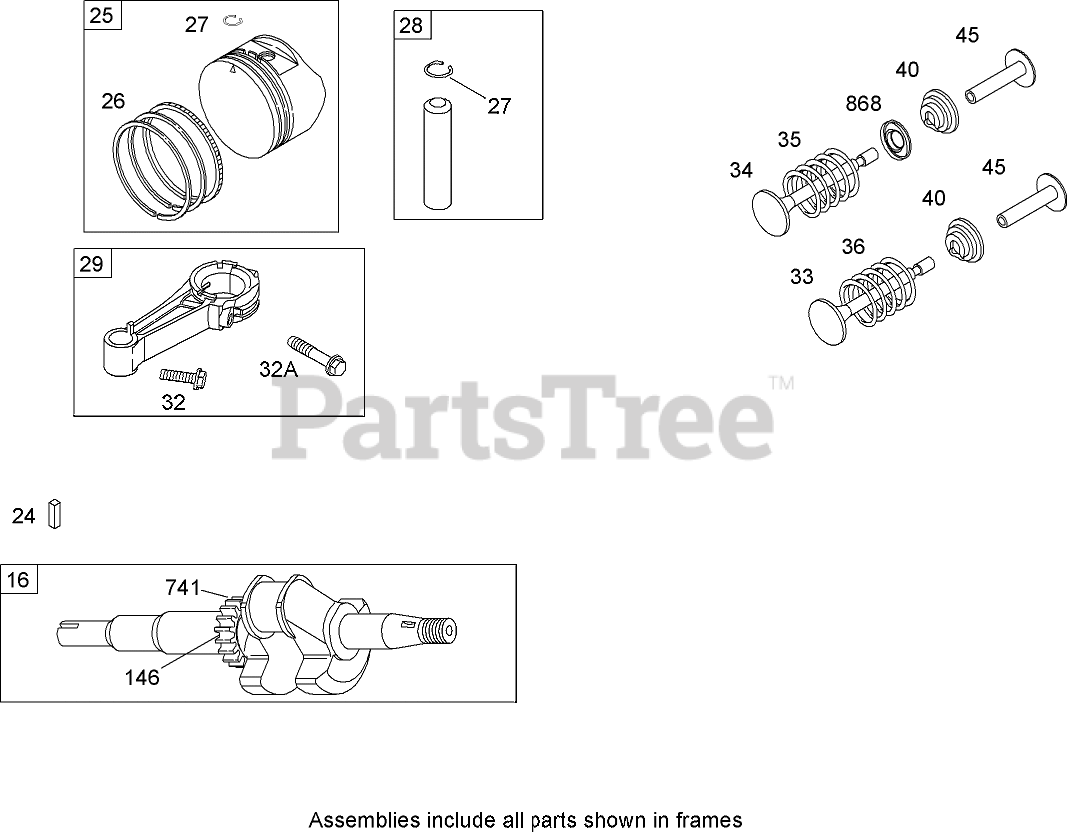

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 12H802-2032-B1 Parts Diagram

  • Title
16

Briggs & Stratton 696009

Crankshaft
(Superseded to 590807)

Note: Obtain parts from www.briggsandstratton.com

$179.99

$

In Stock, only 1 left!

0

24

Toro 222698s

Key-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

25

Briggs & Stratton 791097

Piston ASM (STD)
(Superseded to 799063)

Note: Obtain parts from www.briggsandstratton.com

$91.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 791326

Piston ASM (.020 O S)
(Superseded to 799064)

Note: Obtain parts from www.briggsandstratton.com

$120.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 791098

Ring Set (STD)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

26

Briggs & Stratton 791324

Ring Set (.020 O S)

Note: Obtain parts from www.briggsandstratton.com

$47.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 691866

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston (STD)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Rod-Connecting (STD)
(Superseded to 590406)

Note: Obtain parts from www.briggsandstratton.com

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 691664

Screw (Connecting Rod)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 695759

Screw (Connecting Rod)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262651

Valve-Exhaust
(Superseded to 590394)

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 262652

Valve-Intake
(Superseded to 590393)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 691270

Spring-Valve (Intake)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

36

Briggs & Stratton 691270

Spring-Valve (Exhaust)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 692194

Retainer-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 690548

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 690979

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 8

0

741

Briggs & Stratton 691830

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 697338

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 4 left!

0
