20654 - Toro 50cm Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) HANDLE ASSEMBLY Parts Diagram

50cm Recycler Walk-Behind Mower

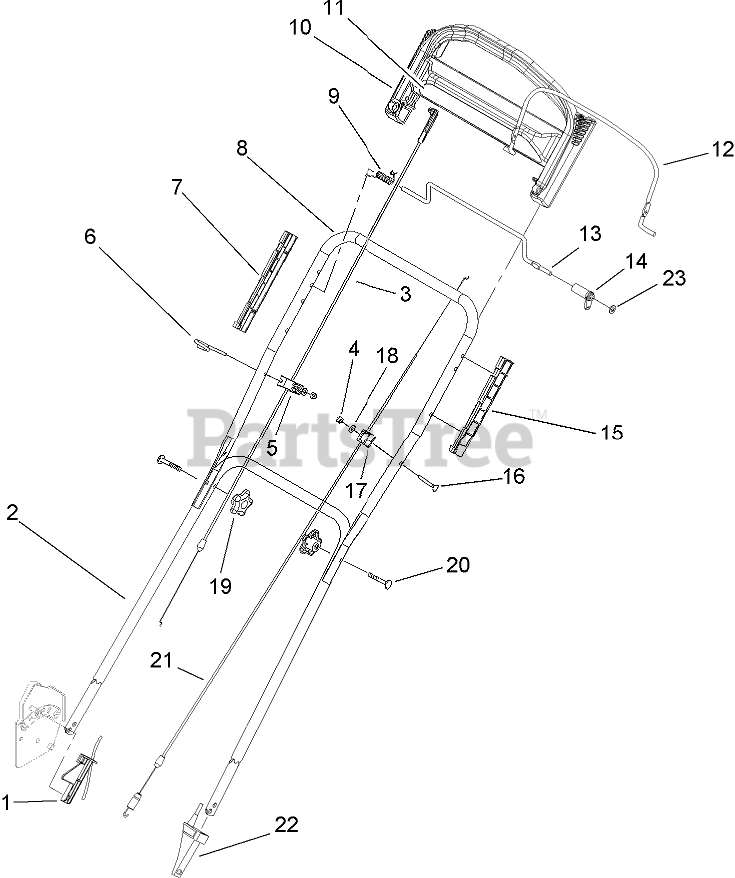

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 104-1013

GUARD-CABLE

$

$

Not available

2

Toro 614643-05

HANDLE-LOWER

$

$

Not available

3

Toro 106-8349

CABLE-BRAKE

$113.99

$

Usually ships in 3-6 days

0

4

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 8

0

5

Toro 106-8331

ANCHOR-CABLE

$5.99

$

In Stock, Qty 8

0

6

Toro 106-8330

GUIDE-ROPE

$5.99

$

In Stock, only 3 left!

0

7

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 1 left!

0

8

Toro 106-8327-05

HANDLE-UPPER

$

$

Not available

9

Toro 104-8690

Spring-Torsion
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 20+

0

10

Toro 104-8678

HANDLE-CONTROL

$83.99

$

In Stock, Qty 8

0

11

Toro 107-3762

DECAL-HANDLE

$

$

Not available

12

Toro 104-8679-03

Bail-Brake
(Superseded to 131-0880-03)

$25.99

$

In Stock, only 4 left!

0

13

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

14

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 20+

0

15

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, Qty 7

0

16

Toro 95-4453

SCREW

$3.49

$

In Stock, Qty 20+

0

17

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, Qty 13

0

18

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 108-8162

KNOB-LOCKING
(Superseded to 117-5976)

$2.99

$

In Stock, Qty 13

0

20

Toro 614697

SCREW

$2.49

$

In Stock, Qty 20+

0

21

Toro 105-1844

Cable-Traction

$27.99

$

In Stock, Qty 14

0

22

Toro 93-7380

ANCHOR-CABLE

$14.99

$

In Stock, only 1 left!

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
