20653 - Toro 51cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) TECUMSEH ENGINE MODEL VLV126-502080E Parts Diagram

51cm Recycler Walk-Behind Mower

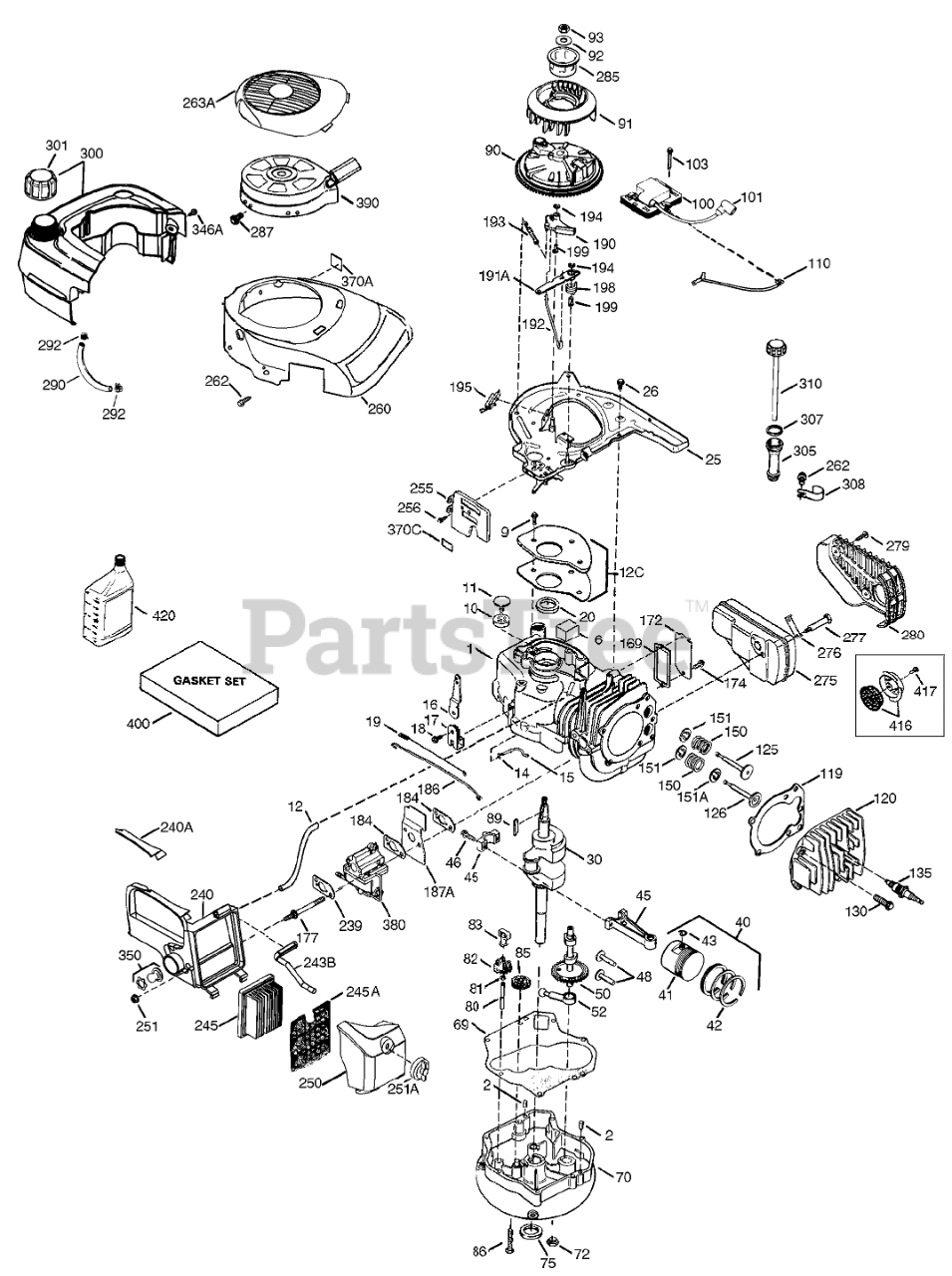

TECUMSEH ENGINE MODEL VLV126-502080E Parts Diagram

  • Title

RPM High 2850 to 3150

$

$

Not available

1

Tecumseh 36177

Cylinder (Incl. 2, 10, 12, 20 & 125)

$154.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

6

Tecumseh 36059

Breather Element

$1.99

$

In Stock, Qty 5

0

9

Tecumseh 590568

Screw

$1.99

$

Usually ships in 3-12 days

0

10

Tecumseh 36002

Breather Valve Body

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 36003A

Check Valve

$3.99

$

In Stock, only 1 left!

0

12

Tecumseh 32447

Breather Tube

$7.99

$

In Stock, only 3 left!

0

12C

Tecumseh 36005A

Breather Cover & Gasket

$7.49

$

Usually ships in 3-12 days

0

14

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 3 left!

0

15

Tecumseh 36006

Governor Rod (Machined)

$3.99

$

In Stock, only 1 left!

0

16

Tecumseh 36008

Governor Level

$1.99

$

In Stock, only 2 left!

0

17

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 1 left!

0

18

Tecumseh 651018

Screw (T-15, 8-32 x 19/64)

$1.99

$

In Stock, Qty 5

0

19

Tecumseh 36103

Governor Spring

$3.99

$

Usually ships in 3-12 days

0

20

Tecumseh 36010

Oil Seal

$9.49

$

In Stock, only 1 left!

0

25

Tecumseh 37300

Blower Housing Baffle (Incl.l95)

$

$

Not available

26

Tecumseh 650802

Screw (1/2-20x5/8)

$1.99

$

In Stock, Qty 5

0

30

Tecumseh 37321

Crankshaft

$

$

Not available

40

Tecumseh 40004

Piston, Pin and Ring Set (STD)

$74.99

$

In Stock, only 1 left!

0

40

Tecumseh 40005

Piston, Pin and Ring Set (.010 O S)
(Superseded to 40045)

$

$

Not available

41

Tecumseh 36070

Piston & Pin Ass-y.(Std.)(Incl. 43)
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

41

Tecumseh 36071

Piston & Pin Ass-y.(.010 OS)(Incl.43)
(Superseded to 40045)

$

$

Not available

42

Tecumseh 40006

Ring Set (STD)

$42.99

$

In Stock, only 1 left!

0

42

Tecumseh 40007

Ring Set (.010 O S)
(Superseded to 40045)

$

$

Not available

43

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 36023A

Connecting Rod ASM (Incl. 46)

$29.99

$

Usually ships in 3-12 days

0

46

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

48

Tecumseh 36030

Valve Lifter

$5.49

$

Usually ships in 3-12 days

0

50

Tecumseh 36031A

Camshaft (MCR)

$47.99

$

Usually ships in 3-12 days

0

52

Tecumseh 29914

Oil Pump ASM

$9.49

$

Usually ships in 3-12 days

0

69

Tecumseh 36032A

Mounting Flange Gasket

$8.99

$

In Stock, only 1 left!

0

70

Tecumseh 36083

Mounting Flange (Incl. 72 thru 85)

$6.99

$

In Stock, Qty 5

0

72

Tecumseh 36083

Plug-Oil

$6.99

$

In Stock, Qty 5

0

75

Tecumseh 36010

Oil Seal

$9.49

$

In Stock, only 1 left!

0

80

Tecumseh 30574A

Shaft-Governor

$7.49

$

In Stock, only 2 left!

0

81

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 5

0

82

Tecumseh 30591

Governor Gear ASM (Incl.81)

$13.99

$

Usually ships in 3-12 days

0

83

Tecumseh 36057

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

85

Tecumseh 36034

Idler Gear

$1.99

$

In Stock, only 2 left!

0

86

Tecumseh 650924

Screw, 1/4-20x1-9/16"

$

$

Not available

89

Tecumseh 611154

Flywheel Key

$1.49

$

In Stock, only 4 left!

0

90

Tecumseh 611155

FLYWHEEL

$72.99

$

Usually ships in 3-12 days

0

91

Tecumseh 611156

FLYWHEEL FAN

$5.49

$

Usually ships in 3-12 days

0

92

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650816

Nut-Flywheel

$4.49

$

In Stock, Qty 6

0

100

Tecumseh 34443B

Solid State Ignition (Incl. 101)
(Superseded to 34443D)

$44.99

$

In Stock, only 3 left!

0

101

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 36054

Tine Bolt

$3.99

$

Usually ships in 3-12 days

0

119

Tecumseh 36061

Cylinder Head Gasket

$9.99

$

Usually ships in 3-12 days

0

120

Tecumseh 36187

Cylinder Head

$48.99

$

Usually ships in 3-12 days

0

125

Tecumseh 36471

Exhaust Valve (Std.)(Incl. 151)

$13.99

$

In Stock, only 1 left!

0

125

Tecumseh 36472

Valve-Exhaust (1/32 O S)

$

$

Not available

126

Tecumseh 29314C

Intake Valve (Std.)(Incl. 151)

$5.99

$

Usually ships in 3-12 days

0

126

Tecumseh 29315C

Valve-Intake (1/32" oversize)

$

$

Not available

130

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, Qty 6

0

135

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

$3.99

$

In Stock, Qty 14

0

150

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

151

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, Qty 5

0

151A

Tecumseh 40016A

Seal-Valve, Intake

$7.49

$

In Stock, only 1 left!

0

169

Tecumseh 27234A

Gasket-Cover, Valve

$5.99

$

In Stock, only 1 left!

0

172

Tecumseh 32755

Cover-Valve

$5.49

$

Usually ships in 3-12 days

0

174

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

177

Tecumseh 650925A

Carburetor Mounting Stud

$7.49

$

In Stock, only 2 left!

0

184

Tecumseh 36183

Carburetor To Intake Pipe Gasket

$1.49

$

In Stock, Qty 5

0

186

Tecumseh 36009

Governor Link

$1.99

$

Usually ships in 3-12 days

0

187A

Tecumseh 37148

Air Baffle

$3.99

$

Usually ships in 3-12 days

0

190

Tecumseh 36013

Brake Lever ASM

$15.99

$

In Stock, only 1 left!

0

191A

Tecumseh 36012

Brake Control Lever

$5.49

$

Usually ships in 3-12 days

0

192

Tecumseh 36016

Brake Control Lever Link

$1.99

$

In Stock, only 3 left!

0

193

Tecumseh 36015

Brake Spring

$1.99

$

Usually ships in 3-12 days

0

194

Tecumseh 36014

Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

195

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 4 left!

0

198

Tecumseh 36017

Brake Control Lever Spring

$3.49

$

Usually ships in 3-12 days

0

199

Tecumseh 36018

Brake Lever Bushing

$1.99

$

In Stock, only 3 left!

0

239

Tecumseh 36048

Carburetor To Air Cleaner Gasket

$3.49

$

In Stock, Qty 8

0

240

Tecumseh 36190

Air Cleaner Body

$26.99

$

In Stock, only 2 left!

0

240A

Tecumseh 37195

Air Cleaner Body Extension

$3.99

$

Usually ships in 3-12 days

0

243B

Tecumseh 651041

Air Cleaner Stud

$7.49

$

Usually ships in 3-12 days

0

245

Tecumseh 36046

Air Cleaner Filter

$8.99

$

In Stock, Qty 5

0

245A

Tecumseh 37144

Air Cleaner Filter

$1.99

$

Usually ships in 3-12 days

0

250

Tecumseh 36191

Air Cleaner Cover

$

$

Not available

251

Tecumseh 650928

Lock Nut, 1/4-20

$1.99

$

Usually ships in 3-12 days

0

251A

Tecumseh 650933

Wing Nut, 1/4-20

$5.49

$

In Stock, only 1 left!

0

255

Tecumseh 36193

Control Plate

$15.99

$

Usually ships in 3-12 days

0

256

Tecumseh 650983

Screw, 8-32 x 21/64"

$1.99

$

In Stock, only 2 left!

0

260

Tecumseh 37194

Blower Housing

$

$

Not available

262

Tecumseh 650737

Screw (1/4-20 x 1/2)

$1.99

$

In Stock, Qty 6

0

263A

Tecumseh 36133

61743/9557984/39151

$

$

Not available

275

Tecumseh 36107

Muffler
(Superseded to 36107A)

$

$

Not available

276

Tecumseh 36043

Locking Plate

$1.99

$

Usually ships in 3-12 days

0

277

Tecumseh 650927

Screw, 5/16-18 x 2-11/32"

$

$

Not available

279

Tecumseh 650956

Screw, Torx T-25, 12-24 x 49/64"

$1.99

$

Usually ships in 3-12 days

0

280

Tecumseh 36090

Heat Shield (Incl. 279)

$51.99

$

Usually ships in 3-12 days

0

285

Tecumseh 34449A

Starter Cup

$10.99

$

Usually ships in 3-12 days

0

287

Tecumseh 650926

Screw (8-32 x 21/64)

$1.49

$

In Stock, only 3 left!

0

290

Tecumseh 34357

Fuel Line
(Superseded to 29774)

$34.99

$

In Stock, Qty 5

0

292

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

300

Tecumseh 36130

Fuel Tank (Incl. 301)

$22.99

$

In Stock, only 1 left!

0

301

Tecumseh 36246

Cap-Fuel
(Superseded to 37844)

$5.99

$

In Stock, Qty 5

0

305

Tecumseh 36063

Oil Fill Tube

$1.99

$

In Stock, Qty 5

0

307

Tecumseh 35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

308

Tecumseh 36040

Fill Tube Clip

$1.99

$

Usually ships in 3-12 days

0

310

Tecumseh 36064

Dipstick

$5.49

$

Usually ships in 3-12 days

0

346A

Tecumseh 28763

Screw (10-32 x 35/64)

$1.99

$

In Stock, only 3 left!

0

350

Tecumseh 36045A

Primer

$6.49

$

In Stock, only 1 left!

0

370A

Tecumseh 36261

Decal-Lubrication

$

$

Not available

370C

Tecumseh 37199

Primer Decal

$

$

Not available

380

Tecumseh 640020A

Carburetor (Incl. 184,187A & 239)
(Superseded to 640020B)

$109.99

$

In Stock, only 1 left!

0

390

Tecumseh 590739

Rewind Starter ASM

$62.99

$

In Stock, only 1 left!

0

400

Tecumseh 36062D

Gasket Set (Incl. Items Marked PK in Notes) 0 Incl. part #-s 27234A (1),28833 (1), 36005A (1), 36032A (1), 36061 (1), 37136 (1), 696088 (1)

$44.99

$

Usually ships in 3-12 days

0

416

Tecumseh 36085

Spark Arrestor Kit (Incl. 417)(Optional)

$12.99

$

Usually ships in 3-12 days

0

417

Tecumseh 650821

Screw (10-32 x 1/2)

$1.99

$

In Stock, only 3 left!

0

420

Tecumseh 730225

4 Cycle Oil, SAE 30 (Quart)
(Superseded to 730225A)

$8.99

$

In Stock, only 1 left!

0
