20653 - Toro 51cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) CARBURETOR NO. 640020A Parts Diagram

51cm Recycler Walk-Behind Mower

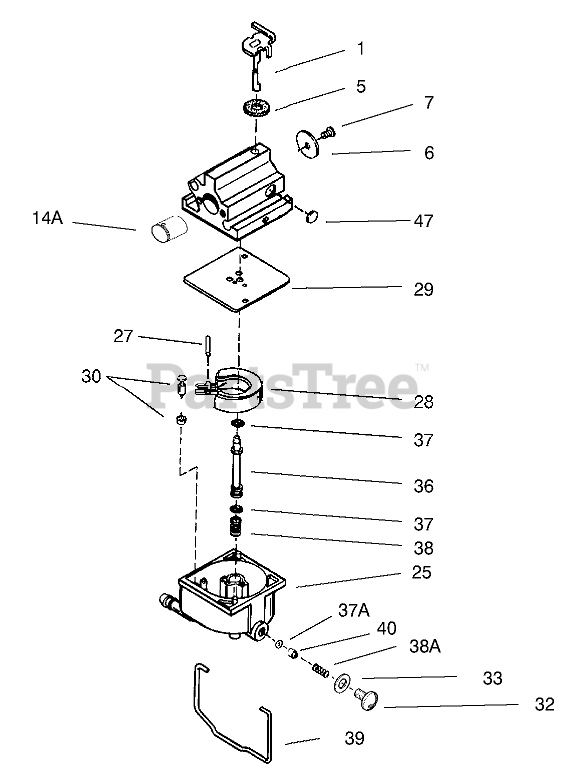

CARBURETOR NO. 640020A Parts Diagram

  • Title

1

Tecumseh 632539

Throttle Shaft & Lever Assembly

$16.99

$

Usually ships in 3-12 days

0

5

Tecumseh 632593

Dust Seal

$1.99

$

Usually ships in 3-12 days

0

6

Tecumseh 632541

Throttle Shutter

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 16

0

14A

Tecumseh 632773

Venturi

$1.99

$

In Stock, only 1 left!

0

25

Tecumseh 632675A

Float Bowl
(Superseded to 632675B)

$23.99

$

Usually ships in 3-12 days

0

27

Tecumseh 632544

Float Shaft
(Superseded to 632544A)

$3.99

$

In Stock, only 1 left!

0

28

Tecumseh 632543

Float

$9.49

$

Usually ships in 3-12 days

0

29

Tecumseh 632548

Float Bowl to Body Gasket

$6.99

$

In Stock, only 3 left!

0

30

Tecumseh 632709

Inlet Needle & Seat

$6.99

$

In Stock, only 1 left!

0

32

Tecumseh 632672

Bowl Drain Screw

$1.99

$

In Stock, only 4 left!

0

33

Tecumseh 632673

Bowl Drain Washer
(Superseded to 27110A)

$2.49

$

Usually ships in 3-12 days

0

36

Tecumseh 640022

Main Nozzle Tube

$1.49

$

In Stock, only 2 left!

0

37

Tecumseh 632547

O-Ring

$4.49

$

In Stock, Qty 20+

0

37A

Tecumseh 632547

O-Ring

$4.49

$

In Stock, Qty 20+

0

38

Tecumseh 632545

Spring

$1.49

$

In Stock, Qty 5

0

38A

Tecumseh 632545

Spring

$1.49

$

In Stock, Qty 5

0

39

Tecumseh 632549

Float Bowl Retainer

$1.99

$

In Stock, only 1 left!

0

40

Tecumseh 640021

Main Fuel Jet

$1.99

$

Usually ships in 3-12 days

0

47

Tecumseh 632554

Welch Plug, Idle Mixing Well

$1.99

$

In Stock, only 1 left!

0
