20652 - Toro 51cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) REAR BAG TUNNEL ASSEMBLY Parts Diagram

51cm Recycler Walk-Behind Mower

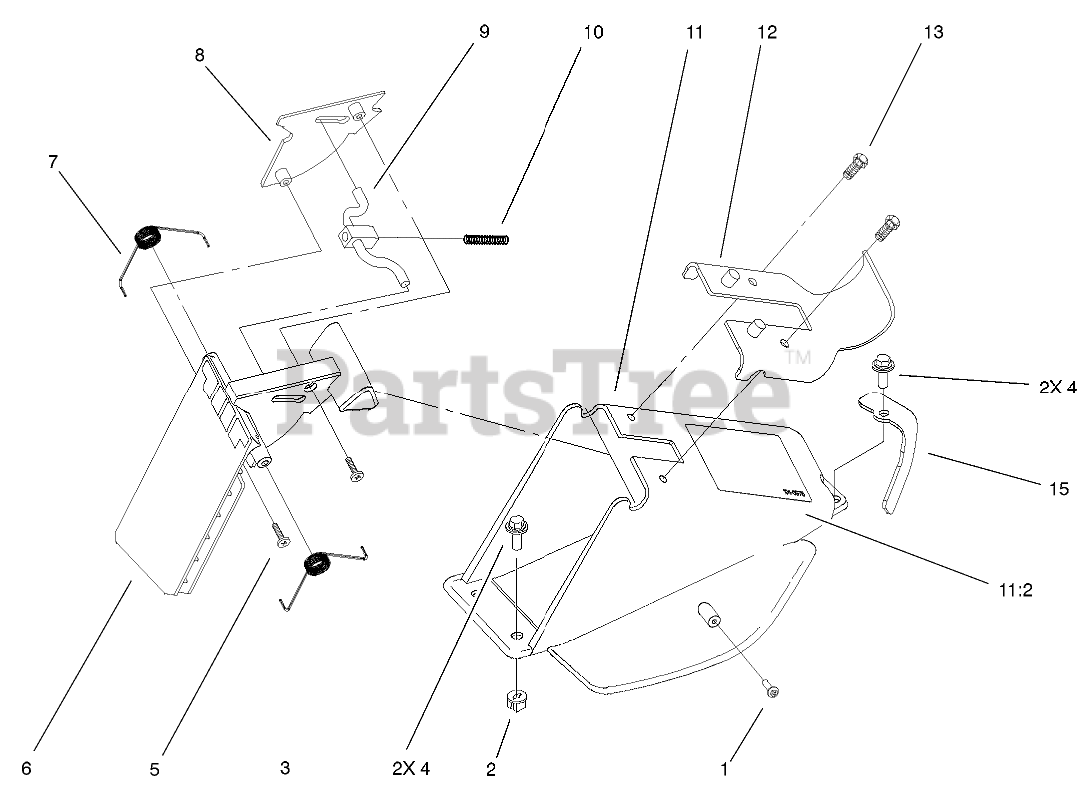

REAR BAG TUNNEL ASSEMBLY Parts Diagram

  • Title
1

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

2

Toro 93-0242

NUT - CLIP
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 20+

0

4

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

5

$2.99

$

Usually ships in 3-6 days

0

6

Toro 93-0264

DOOR-DISCHARGE

$29.99

$

Usually ships in 3-6 days

0

7

Toro 88-1090

SPRING-DOOR, RH

$12.99

$

In Stock, only 2 left!

0

8

Toro 33-0441

DOOR COVER

$14.99

$

Usually ships in 3-6 days

0

9

Toro 88-1800

LATCH-DOOR

$

$

Not available

10

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

11

Toro 104-0217

DISCHARGE CHUTE ASM

$

$

Not available

11:2

Toro 104-0578

DECAL-DANGER

$

$

Not available

12

Toro 98-2696-03

PLATE-CHUTE, DISCHARGE
(Superseded to 98-2695)

$

$

Not available

13

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

15

Toro 100-1589-03

CLAMP-DOOR

$18.99

$

Usually ships in 3-6 days

0

16

Toro 104-0578

DECAL-DANGER

$

$

Not available
