20652 - Toro 51cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) HOUSING & BRACKET ASSEMBLY Parts Diagram

51cm Recycler Walk-Behind Mower

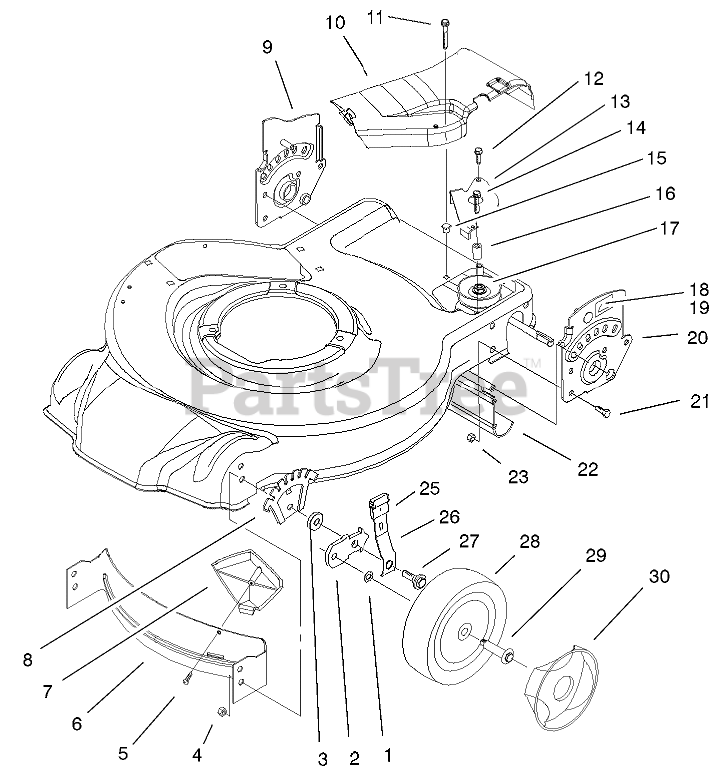

HOUSING & BRACKET ASSEMBLY Parts Diagram

  • Title

1

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

2

Toro 95-7403-03

BRACKET-HEIGHT ADJUSTMENT, WHEEL

$

$

Not available

3

Toro 92-4890

WASHER

$8.99

$

In Stock, only 2 left!

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

6

Toro 100-1179-03

BAFFLE-FRONT

$

$

Not available

7

Toro 93-0216

KICKER-FRONT

$14.99

$

Usually ships in 3-6 days

0

8

Toro 92-4881-03

PLATE-HEIGHT, ADJUSTMENT

$25.99

$

Usually ships in 3-6 days

0

9

Toro 99-5234

BRACKET ASM-HANDLE, RH

$

$

Not available

10

Toro 99-1581

COVER-BELT

$25.99

$

Usually ships in 3-6 days

0

11

Toro 32144-119

SCREW-PTH

$1.99

$

Usually ships in 3-6 days

0

12

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

13

Toro 99-1567-03

BRACKET-BELT GUIDE

$8.99

$

Usually ships in 3-6 days

0

14

Toro 92-1616

SCREW-HWHTF

$3.49

$

In Stock, only 1 left!

0

15

Toro 605120

NUT-CLIP

$3.99

$

In Stock, Qty 9

0

16

Toro 614673

BUSHING-PLATE, ACTUATOR

$11.99

$

In Stock, only 1 left!

0

17

Toro 104-7677

GEAR CASE ASM

$287.99

$

Usually ships in 3-6 days

0

18

Toro 93-6670

DECAL-HOC, LH

$

$

Not available

19

Toro 93-6671

DECAL-HOC, RH

$

$

Not available

20

Toro 99-5233

BRACKET ASM-HANDLE, LH

$20.99

$

Usually ships in 3-6 days

0

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 92-8647

SHIELD-TRAILING

$35.99

$

In Stock, only 1 left!

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

25

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$12.99

$

In Stock, only 2 left!

0

26

Toro 614687

ARM-FRONT SPRING

$21.99

$

In Stock, only 3 left!

0

27

Toro 614650

BOLT-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

28

Toro 99-6470

WHEEL ASM

$

$

Not available

29

Toro 614672

BOLT-SHOULDER

$2.99

$

In Stock, Qty 6

0

30

Toro 95-6543

COVER-WHEEL

$3.49

$

Usually ships in 3-6 days

0
