20652 - Toro 51cm Recycler Walk-Behind Mower (SN: 210000001 - 210000434) (2001) HANDLE & CONTROLS ASSEMBLY Parts Diagram

51cm Recycler Walk-Behind Mower

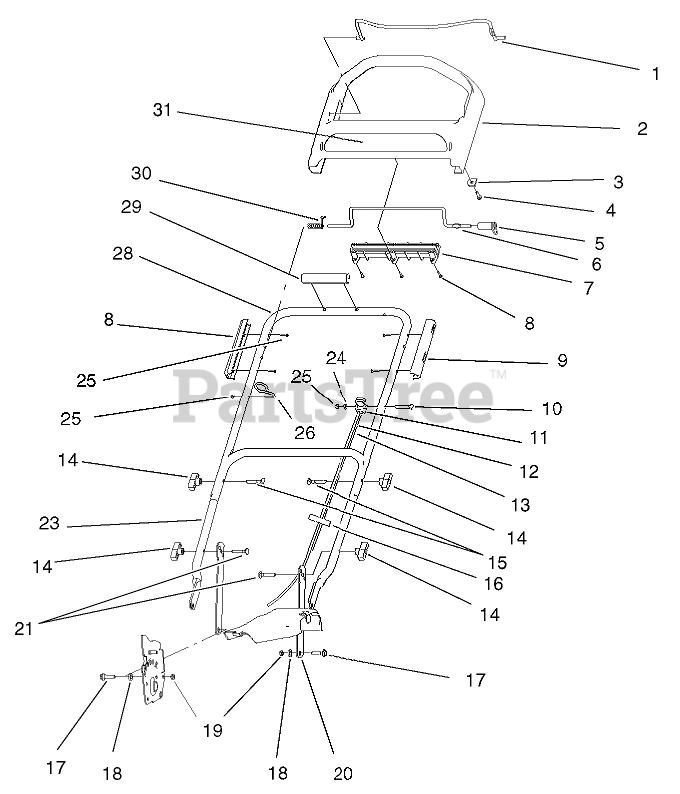

HANDLE & CONTROLS ASSEMBLY Parts Diagram

  • Title
1

Toro 99-1593-03

BAIL-BRAKE

$

$

Not available

2

Toro 99-1582

HANDLE-CONTROL

$

$

Not available

3

Toro 99-1595

RETAINER-CABLE, BRAKE
(Superseded to 106-2662)

$19.99

$

In Stock, Qty 5

0

4

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

5

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 15

0

6

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

7

Toro 99-6008

RETAINER-CONTROL ROD, TRACTION

$36.99

$

Usually ships in 3-6 days

0

8

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

9

Toro 99-1590

GUIDE-HANDLE, CONTROL

$16.99

$

In Stock, only 3 left!

0

10

Toro 95-4453

SCREW

$3.49

$

In Stock, only 1 left!

0

11

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 7

0

12

Toro 99-1510

CABLE-TRACTION

$27.99

$

Usually ships in 3-6 days

0

13

Toro 99-1509

CABLE-BRAKE

$29.99

$

In Stock, only 1 left!

0

14

Toro 98-7134

KNOB-HANDLE

$2.99

$

In Stock, Qty 16

0

15

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 7

0

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

17

Toro 99-5284

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

18

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

19

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 99-5247-03

SUPPORT-HANDLE

$

$

Not available

21

Toro 99-6019

SCREW-CARR

$2.99

$

In Stock, Qty 11

0

23

Toro 99-5246-05

HANDLE-LOWER

$102.99

$

Usually ships in 3-6 days

0

24

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

26

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

28

Toro 99-1596-05

HANDLE-UPPER

$90.99

$

Usually ships in 3-6 days

0

29

Toro 100-5970

COVER-HANDLE

$

$

Not available

30

Toro 99-1592

SPRING-TORSION, RH

$11.99

$

In Stock, only 2 left!

0

31

Toro 100-5950

DECAL-AUTOMATIC

$

$

Not available
