206510x31A - Scotts 20" Walk-Behind Mower (2005) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

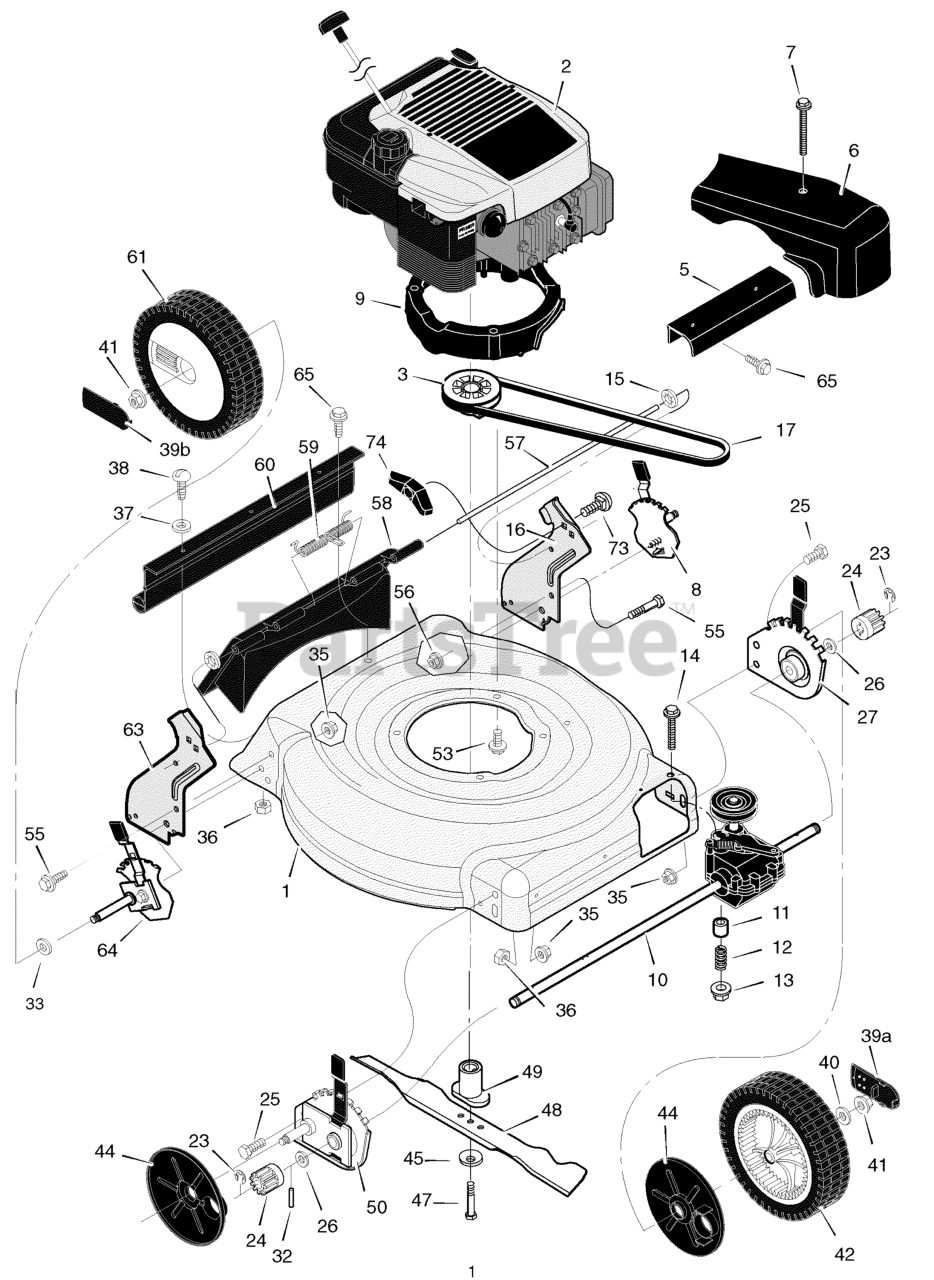

Mower Housing Assembly Parts Diagram

  • Title

1

Housing

$

$

Not available

2

Engine*

$

$

Not available

3

Murray 1101653

Pulley, Crankshaft

$9.99

$

Usually ships in 2-12 days

0

4

Murray 032X64

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

5

Murray 1101625

Cover, Axle (Black)

$5.99

$

Usually ships in 2-12 days

0

6

Murray 1101623

Cover, Belt (Black)

$35.99

$

Usually ships in 2-12 days

0

7

Murray 26X304

Screw

$4.49

$

Usually ships in 2-12 days

0

8

Murray 1102219

Adjuster, Left Height

$

$

Currently unavailable

9

Murray 1101639

Spacer, Engine

$21.99

$

Usually ships in 2-12 days

0

10

Murray 1101619

Transmission *

$90.99

$

Usually ships in 2-12 days

0

11

Murray 43844

Spacer
(Superseded to 7043844YP)

$34.99

$

In Stock, Qty 20+

0

12

Murray 164X27

Spring

$

$

Not available

13

Murray 015X88

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

14

Murray 01X156

Bolt
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

15

Murray 028X49

Retainer, Push

Note: (Included with Ref. No. 58)

$3.99

$

In Stock, Qty 13

0

16

Murray 1101239E735

Bracket, Left Handle

$

$

Currently unavailable

17

Murray 37X128

Belt

$20.99

$

Usually ships in 2-12 days

0

23

Murray 011X16

E-Ring

$3.99

$

Usually ships in 2-12 days

0

24

Murray 71792

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

25

Murray 001X85

Bolt
(Superseded to 001X85MA)

$3.99

$

Usually ships in 2-12 days

0

26

Murray 17X186

Washer

$

$

Not available

27

Murray 1102133

Adjuster, Left Frt. Height

$

$

Not available

33

Murray 017X91

Washer
(Superseded to 017X91MA)

$5.49

$

In Stock, Qty 11

0

35

Murray 015X68

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

36

Murray 15X102

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

37

Murray 017X38

Washer
(Superseded to 017X38MA)

$3.99

$

Usually ships in 2-12 days

0

38

Murray 004X21

Screw
(Superseded to 004X21MA)

$3.99

$

Usually ships in 2-12 days

0

39a

Murray 43615

Cap, Hub

$4.49

$

Usually ships in 2-12 days

0

39b

Murray 43615

Cap, Hub

$4.49

$

Usually ships in 2-12 days

0

40

Murray 17X169

Washer

$4.49

$

In Stock, only 2 left!

0

41

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

42

Murray 71133

Wheel, Drive

$50.99

$

In Stock, only 2 left!

0

44

Murray 71780

Cover, Dust

$5.99

$

Usually ships in 2-12 days

0

45

Murray 1101989

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

47

Murray 01X144

Bolt

$5.49

$

In Stock, only 3 left!

0

48

Murray 1101822E701

Blade

$26.99

$

Usually ships in 2-12 days

0

49

Murray 1101826

Adapter, Blade

$

$

Not available

50

Murray 1102132

Adjuster, Right Frt. Height

$79.99

$

Usually ships in 2-12 days

0

53

Murray 025X11

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

55

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

56

Murray 015X79

Nut, Flange

$5.49

$

In Stock, Qty 20+

0

57

Murray 215X17 Z

Rod, Pivot

Note: (Included with Ref. No. 58)

$

$

Currently unavailable

58

Murray 672610

Door, Rear (Black)

$11.99

$

Usually ships in 2-12 days

0

59

Murray 166X44

Spring

Note: (Included with Ref. No. 58)

$14.99

$

In Stock, only 1 left!

0

60

Murray 671970

Deflector, Rear

$13.99

$

Usually ships in 2-12 days

0

61

Murray 71132

Wheel, Rear

$36.99

$

In Stock, only 4 left!

0

63

Murray 1101238E735

Bracket, Right Handle

$

$

Currently unavailable

64

Murray 1102218

Adjuster, Right Height

$

$

Currently unavailable

65

Murray 26X245

Screw

$4.49

$

In Stock, Qty 6

0

73

Murray 002X81

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

74

Murray 71495

Knob

$

$

Not available

--

Murray F-050428L

Instruction Book

$

$

Currently unavailable
