20651 - Toro 51cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE & BLADE ASSEMBLY Parts Diagram

51cm Recycler Walk-Behind Mower

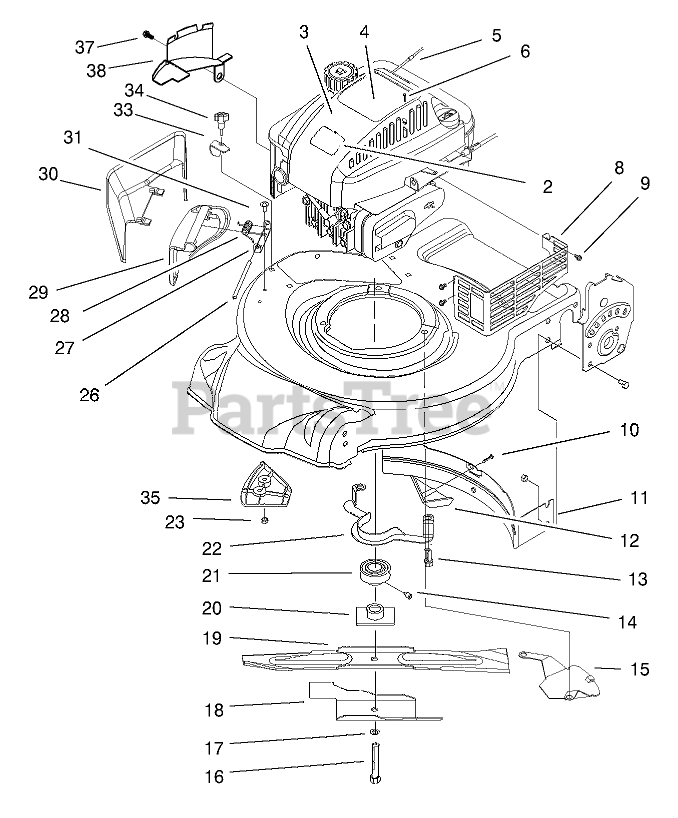

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title
2

Toro 98-3206

Decal

$2.49

$

Usually ships in 3-6 days

0

3

Toro 93-0243

SHROUD-ENGINE

$59.99

$

Usually ships in 3-6 days

0

4

Toro 100-5952

DECAL-ENGINE

$

$

Not available

5

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

6

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

8

Toro 82-8550-03

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$26.99

$

Usually ships in 3-6 days

0

9

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

10

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

11

Toro 93-0223-03

BAFFLE-REAR

$29.99

$

In Stock, only 1 left!

0

12

Toro 93-0217

KICKER-REAR

$

$

Not available

13

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

14

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

15

Toro 93-4196-03

SHIELD-GRASS

$15.99

$

In Stock, only 3 left!

0

16

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

17

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

18

Toro 93-0219-03

ACCELERATOR

$41.99

$

In Stock, only 1 left!

0

19

Toro 93-0241

Blade
(Superseded to 93-0241-03)

$45.99

$

In Stock, only 1 left!

0

20

Toro 100-1178

BLADE DRIVER ASM

$24.99

$

Usually ships in 3-6 days

0

21

Toro 95-1878

PULLEY

$63.99

$

In Stock, only 1 left!

0

22

Toro 92-1024-03

GUIDE-BELT

$

$

Not available

23

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

26

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 14

0

27

Toro 99-5292

BRACKET-COVER
(Superseded to 119-7079)

$12.99

$

In Stock, only 1 left!

0

28

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

29

Toro 99-5294

COVER-SIDE

$21.99

$

Usually ships in 3-6 days

0

30

Toro 99-5295

CHUTE-SIDE

$15.99

$

In Stock, only 2 left!

0

31

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

33

Toro 100-1589-03

CLAMP-DOOR

$18.99

$

Usually ships in 3-6 days

0

34

$3.99

$

In Stock, only 2 left!

0

35

Toro 99-6349

BAFFLE

$24.99

$

Usually ships in 3-6 days

0

37

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

38

Toro 99-0905

GUARD-FLYWHEEL

$

$

Not available
