20651 - Toro 51cm Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) HOUSING, HANDLE BRACKETS, & WHEEL ASSEMBLY Parts Diagram

51cm Recycler Walk-Behind Mower

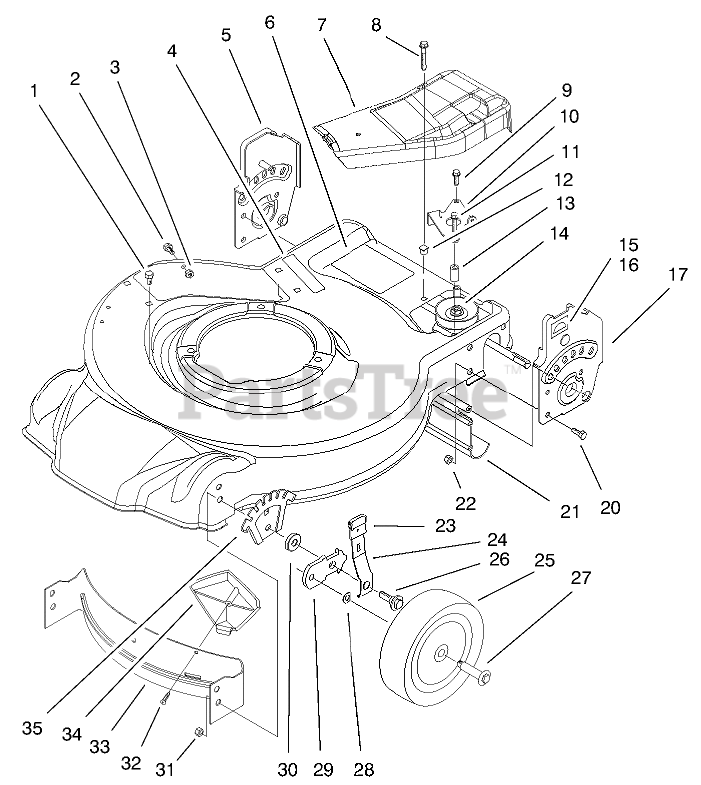

HOUSING, HANDLE BRACKETS, & WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

2

Toro 32105-27

SCREW

$1.49

$

Usually ships in 3-6 days

0

3

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 93-6667

DECAL - WARNING

$

$

Not available

5

Toro 93-0234

RH HANDLE BRACKET ASM

$23.99

$

In Stock, only 1 left!

0

6

Toro 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$18.99

$

Usually ships in 3-6 days

0

7

Toro 93-0209

COVER-TRANSMISSION

$

$

Not available

8

Toro 32144-119

SCREW-PTH

$

$

Not available

9

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

10

Toro 93-0228-03

GUIDE-TRANSMISSION

$

$

Not available

11

Toro 92-1616

SCREW-HWHTF

$3.99

$

In Stock, only 1 left!

0

12

Toro 605120

NUT-CLIP

$4.49

$

In Stock, Qty 5

0

13

Toro 614673

BUSHING-PLATE, ACTUATOR

$13.99

$

In Stock, only 2 left!

0

14

Toro 93-0240

ASM-Transmission
(Superseded to 104-7678)

$435.99

$

Usually ships in 3-6 days

0

15

Toro 92-2915

DECAL-HOC, RH

$6.99

$

Usually ships in 3-6 days

0

16

Toro 92-2914

DECAL-HOC, LH

$

$

Not available

17

Toro 93-0233

LH HANDLE BRACKET ASM

$

$

Not available

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 92-8647

SHIELD-TRAILING

$43.99

$

In Stock, Qty 8

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$14.99

$

In Stock, only 2 left!

0

24

Toro 614687

ARM-FRONT SPRING

$23.99

$

In Stock, only 3 left!

0

25

Toro 92-9591

WHEEL ASM

$23.99

$

In Stock, Qty 9

0

26

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

27

Toro 614672

BOLT-SHOULDER

$2.99

$

In Stock, only 4 left!

0

28

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

29

Toro 95-7403-03

BRACKET-HEIGHT ADJUSTMENT, WHEEL

$

$

Not available

30

Toro 92-4890

WASHER

$8.99

$

In Stock, only 2 left!

0

31

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

32

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

33

Toro 100-1179-03

BAFFLE-FRONT

$

$

Not available

34

Toro 93-0216

KICKER-FRONT

$

$

Not available

35

Toro 92-4881-03

PLATE-HEIGHT, ADJUSTMENT

$31.99

$

Usually ships in 3-6 days

0
