20651 - Toro 51cm Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) GEARCASE & WHEEL ASSEMBLY Parts Diagram

51cm Recycler Walk-Behind Mower

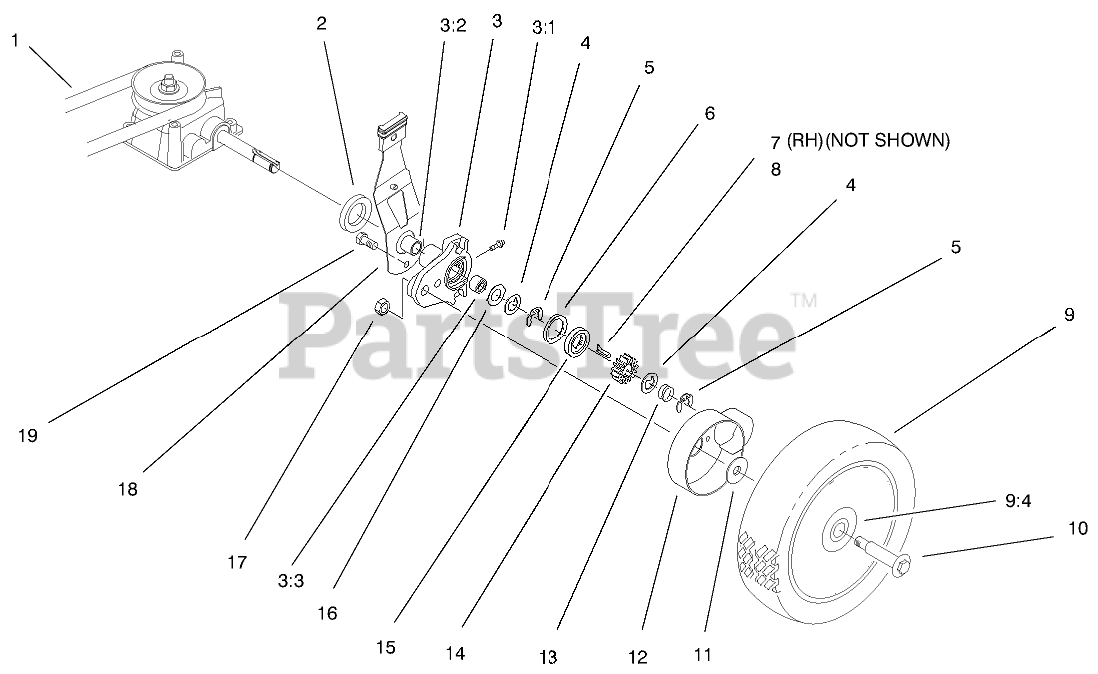

GEARCASE & WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 93-0232

V-BELT

$16.99

$

In Stock, only 2 left!

0

2

Toro 614447

SPACER-AXLE SHAFT

$3.49

$

In Stock, Qty 20+

0

3

Toro 92-7746

REAR HEIGHT ADJUSTMENT ARM ASM

$50.99

$

In Stock, only 2 left!

0

3:1

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

3:2

Toro 47-2900

BUSHING

$6.49

$

In Stock, Qty 20+

0

3:3

Toro 70-9760

BUSHING

$4.99

$

In Stock, Qty 20+

0

4

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 20+

0

5

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

6

Toro 65-4710

RING-FRICTION

$3.49

$

In Stock, Qty 20+

0

7

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

$7.49

$

In Stock, Qty 20+

0

8

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 20+

0

9

Toro 92-9590

WHEEL ASM

$55.99

$

In Stock, Qty 8

0

9:4

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 3 left!

0

10

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

11

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

12

Toro 94-1609

COVER-WHEEL

$10.99

$

In Stock, Qty 5

0

13

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

14

Toro 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 20+

0

15

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 20+

0

16

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 20+

0

17

Toro 610358

NUT-JAM, LOCKING

$2.99

$

In Stock, Qty 12

0

18

Toro 92-1004

REAR SPRING ARM ASM

$

$

Not available

19

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0
