20651 - Toro 51cm Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 12H802-1767-E1 Parts Diagram

51cm Recycler Walk-Behind Mower

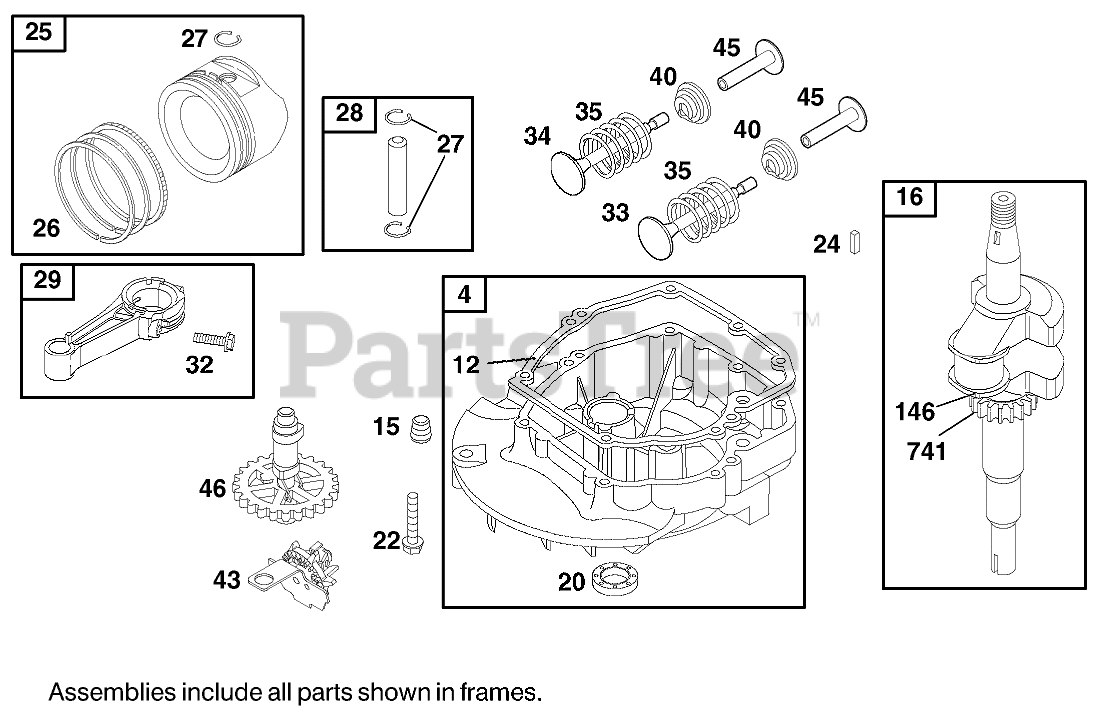

ENGINE BRIGGS & STRATTON MODEL 12H802-1767-E1 Parts Diagram

  • Title

4

Briggs & Stratton 493279

Sump-Engine

$120.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

Note: Included in Gasket Set-See Ref. 358.

$5.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 94880

Oil Drain Plug
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 694079

Crankshaft

$152.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Gasket Set-See Ref. 358.

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94220

Screw-Hex. Head
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 94612

Screw Hex. Head
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499429

Piston ASM. (Standard)
(Superseded to 799063)

$91.99

$

In Stock, only 4 left!

0

Briggs & Stratton 499430

Piston ASM

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 499431

Piston ASM. (.020" O.S.)
(Superseded to 799064)

$120.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 499432

Piston ASM. (.030" O.S.)

$46.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499425

Ring Set (Standard)

$

$

Not available

Briggs & Stratton 499426

Ring Set (.010" O.S.)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 499427

Ring Set (.020in Oversize)

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 499428

Ring Set (.030" O.S.)

$29.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 263190

Lock-Piston Pin
(Superseded to 691866)

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 94699

Screw-Hex
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262651

Valve-Exhaust
(Superseded to 590394)

$24.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 262652

Valve-Intake
(Superseded to 590393)

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 262224

Spring-Value
(Superseded to 691270)

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

43

Briggs & Stratton 493737

Oil Slinger
(Superseded to 691997)

$25.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 262204

Tappet-Valve
(Superseded to 690548)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 498275

Camshaft
(Superseded to 691449)

$73.99

$

In Stock, only 1 left!

0

146

Briggs & Stratton 94388

Key-Timing
(Superseded to 690979)

$3.49

$

In Stock, Qty 8

0

741

Briggs & Stratton 262598

Gear-Timing
(Superseded to 691830)

$17.99

$

Usually ships in 2-12 days

0
