20650 - Toro Carefree Recycler Electric Walk-Behind Mower (SN: 089000001 - 089999999) (1998) MOTOR, BATTERIES AND BLADE ASSEMBLY Parts Diagram

Carefree Recycler Electric Walk-Behind Mower

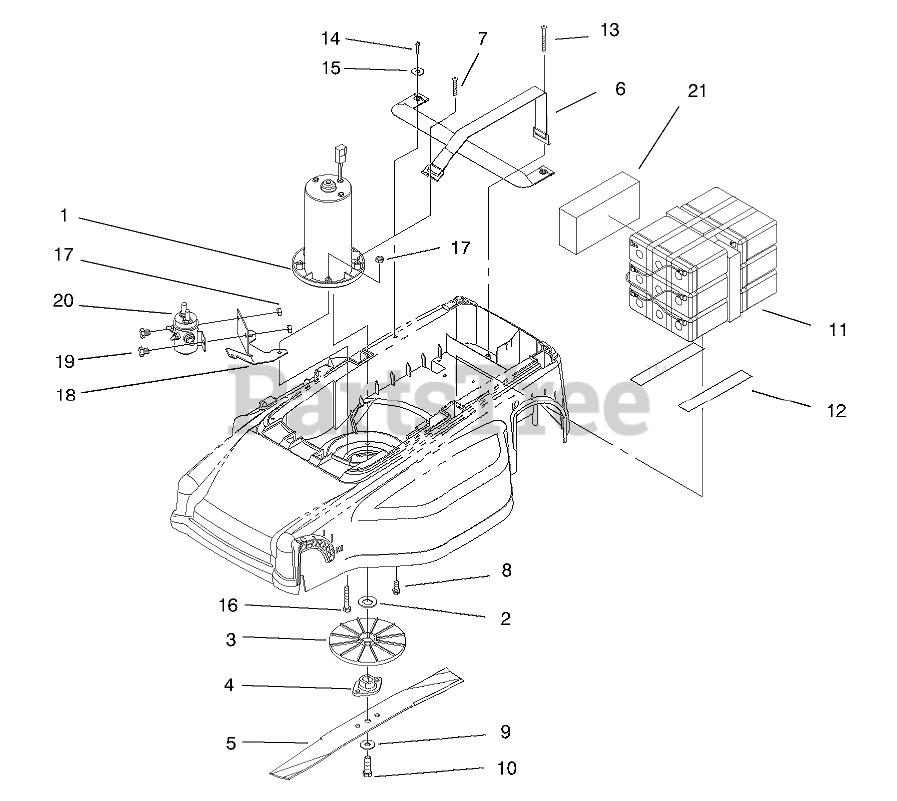

MOTOR, BATTERIES AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 94-6919

ASM - MOTOR 36V

$

$

Not available

2

Toro 93-3342

WASHER

$

$

Not available

3

Toro 93-3340

FAN

$

$

Not available

4

Toro 93-3341

BUSHING

$

$

Not available

5

Toro 93-3953

Blade
(Superseded to 93-3953-03)

$64.99

$

In Stock, only 3 left!

0

6

Toro 95-5027

ASM-BATTERY STRAP, 36V

$

$

Not available

7

Toro 32144-8

SCREW-PPHTF

$6.99

$

Usually ships in 3-6 days

0

8

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 2 left!

0

9

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

10

Toro 93-3987

BOLT-BLADE
(Superseded to AU328-620)

$0.99

$

In Stock, only 1 left!

0

11

Toro 95-5164

ASM-Battery (Incl. Ref #12)

$

$

Not available

12

Toro 94-1197

Tape-Foam

$

$

Not available

13

Toro 93-3986

SCREW-PPH

$4.49

$

Usually ships in 3-6 days

0

14

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

16

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

17

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 95-3027

BRACKET - SOLENOID

$26.99

$

In Stock, only 1 left!

0

19

Toro 3234-26

SCREW-HHF

$3.49

$

In Stock, Qty 15

0

20

Toro 95-3256

SOLENOID - 36V

$120.99

$

In Stock, only 1 left!

0

21

Toro 95-5180

SPACER - FOAM

$

$

Not available
