20648 - Toro Carefree Electric Walk-Behind Mower, 24V DC (SN: 089000001 - 089999999) (1998) MOTOR, BATTERIES AND BLADE ASSEMBLY Parts Diagram

Carefree Electric Walk-Behind Mower, 24V DC

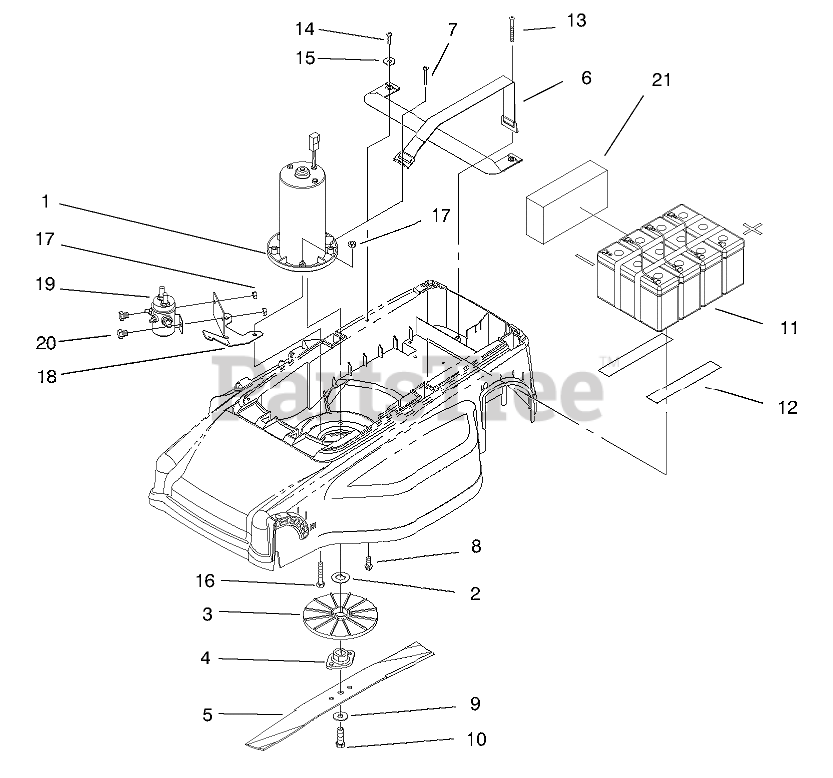

MOTOR, BATTERIES AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 94-6918

MOTOR ASM

$690.99

$

Usually ships in 3-6 days

0

2

Toro 93-3342

WASHER

$

$

Not available

3

Toro 93-3340

FAN

$

$

Not available

4

Toro 93-3341

BUSHING

$

$

Not available

5

Toro 93-3953

Blade
(Superseded to 93-3953-03)

$64.99

$

In Stock, only 3 left!

0

6

Toro 95-5026

STRAP ASM-BATTERY

$

$

Not available

7

Toro 32144-8

SCREW-PPHTF

$6.99

$

Usually ships in 3-6 days

0

8

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 2 left!

0

9

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

10

Toro 93-3987

BOLT-BLADE
(Superseded to AU328-620)

$0.99

$

In Stock, only 1 left!

0

11

Toro 95-5163

ASM-Battery (Incl. Ref #12)

$518.99

$

Usually ships in 3-6 days

0

12

Toro 94-1197

Tape-Foam

$

$

Not available

13

Toro 93-3986

SCREW-PPH

$4.49

$

Usually ships in 3-6 days

0

14

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

16

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

17

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 95-3027

BRACKET - SOLENOID

$26.99

$

In Stock, only 1 left!

0

19

Toro 95-3255

SOLENOID

$

$

Not available

20

Toro 3234-26

SCREW-HHF

$3.49

$

In Stock, Qty 15

0

21

Toro 95-5180

SPACER - FOAM

$

$

Not available
