20648 - Toro Carefree Electric Walk-Behind Mower, 24V DC (SN: 089000001 - 089999999) (1998) ELECTRICAL WIRE DIAGRAM AND SIDE DESCHARGE CHUTE Parts Diagram

Carefree Electric Walk-Behind Mower, 24V DC

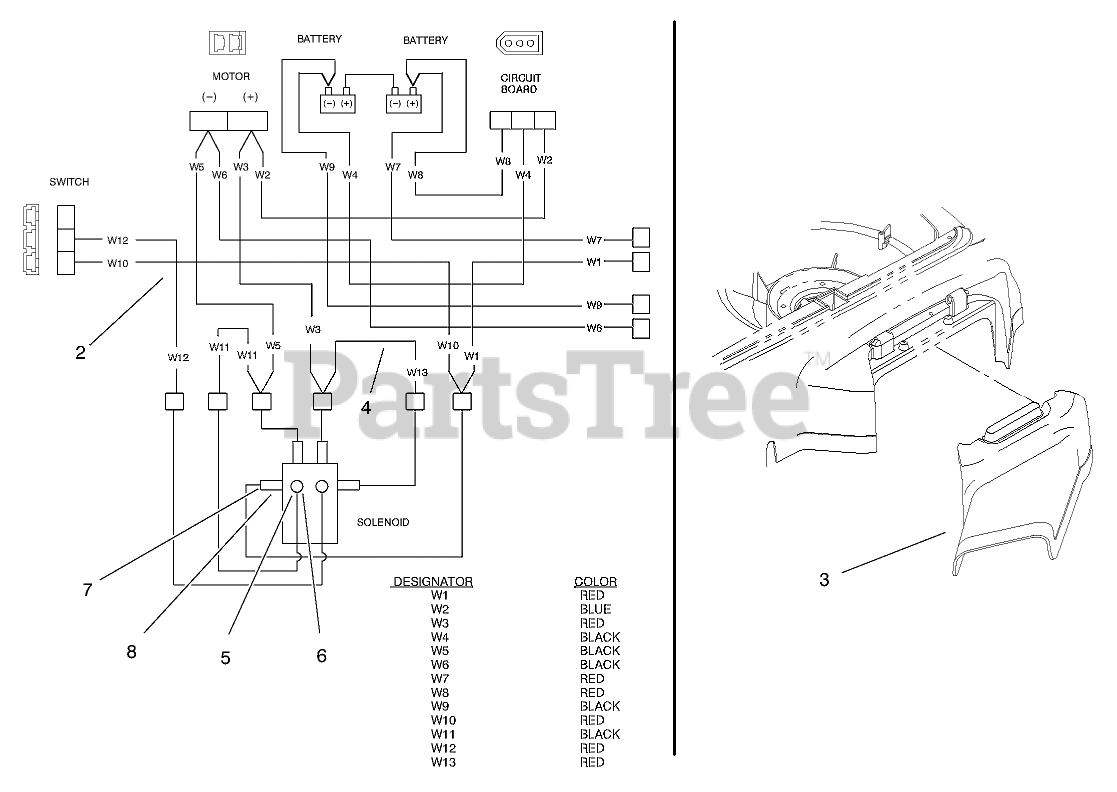

ELECTRICAL WIRE DIAGRAM AND SIDE DESCHARGE CHUTE Parts Diagram

  • Title
1

Toro 95-5158

DECAL - POSITIVE

Note: Not illustrated

$

$

Not available

2

Toro 95-5048

Harness-Wire (Incl. W1-W12)

$

$

Not available

3

Toro 93-3963

CHUTE - SIDE

$23.99

$

Usually ships in 3-6 days

0

4

Toro 95-3254

Harness-Wire (Incl. W13)

$24.99

$

Usually ships in 3-6 days

0

5

Toro 3219-27

NUT-HJ

$

$

Not available

6

Toro 3253-25

WASHER-LOCK

$

$

Not available

7

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

8

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 95-5159

DECAL - NEGATIVE

Note: Not illustrated

$

$

Not available
