20647 - Toro Carefree Electric Walk-Behind Mower, 24V DC (SN: 069000001 - 069999999) (1996) DECK, LINER AND WHEEL ASSEMBLY Parts Diagram

Carefree Electric Walk-Behind Mower, 24V DC

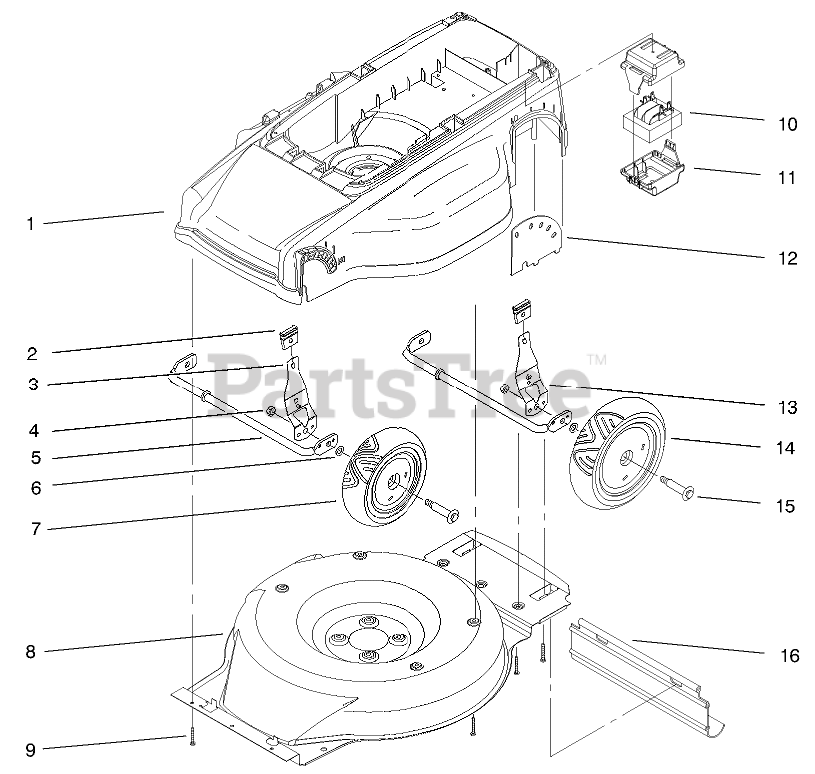

DECK, LINER AND WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 94-3895

DECK ASM

$

$

Not available

2

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$12.99

$

In Stock, only 2 left!

0

3

Toro 94-3870

LEVER ASM-HOC, FRONT

$17.99

$

Usually ships in 3-6 days

0

4

Toro 610358

NUT-JAM, LOCKING

$2.49

$

In Stock, only 2 left!

0

5

$

$

Not available

6

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

7

Toro 92-9586

WHEEL ASM

$

$

Not available

8

Toro 94-3897

ASM - LINER

$

$

Not available

9

Toro 93-3985

SCREW - PPH

$

$

Not available

10

Toro 93-3332

TRANSFORMER

$

$

Not available

11

Toro 93-3343

HOUSING - TRANSFORMER
(Superseded to 104-0232)

$

$

Not available

12

Toro 93-3955

PLATE - HOC

$

$

Not available

13

Toro 94-3871

LEVER ASM-HOC, REAR

$

$

Not available

14

Toro 93-0344

WHEEL ASM

$

$

Not available

15

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 11

0

16

Toro 94-7417

SHIELD-TRAILING
(Superseded to 93-3976)

$17.99

$

Usually ships in 3-6 days

0
