20645x8A - Murray 20" Walk-Behind Mower (1997) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

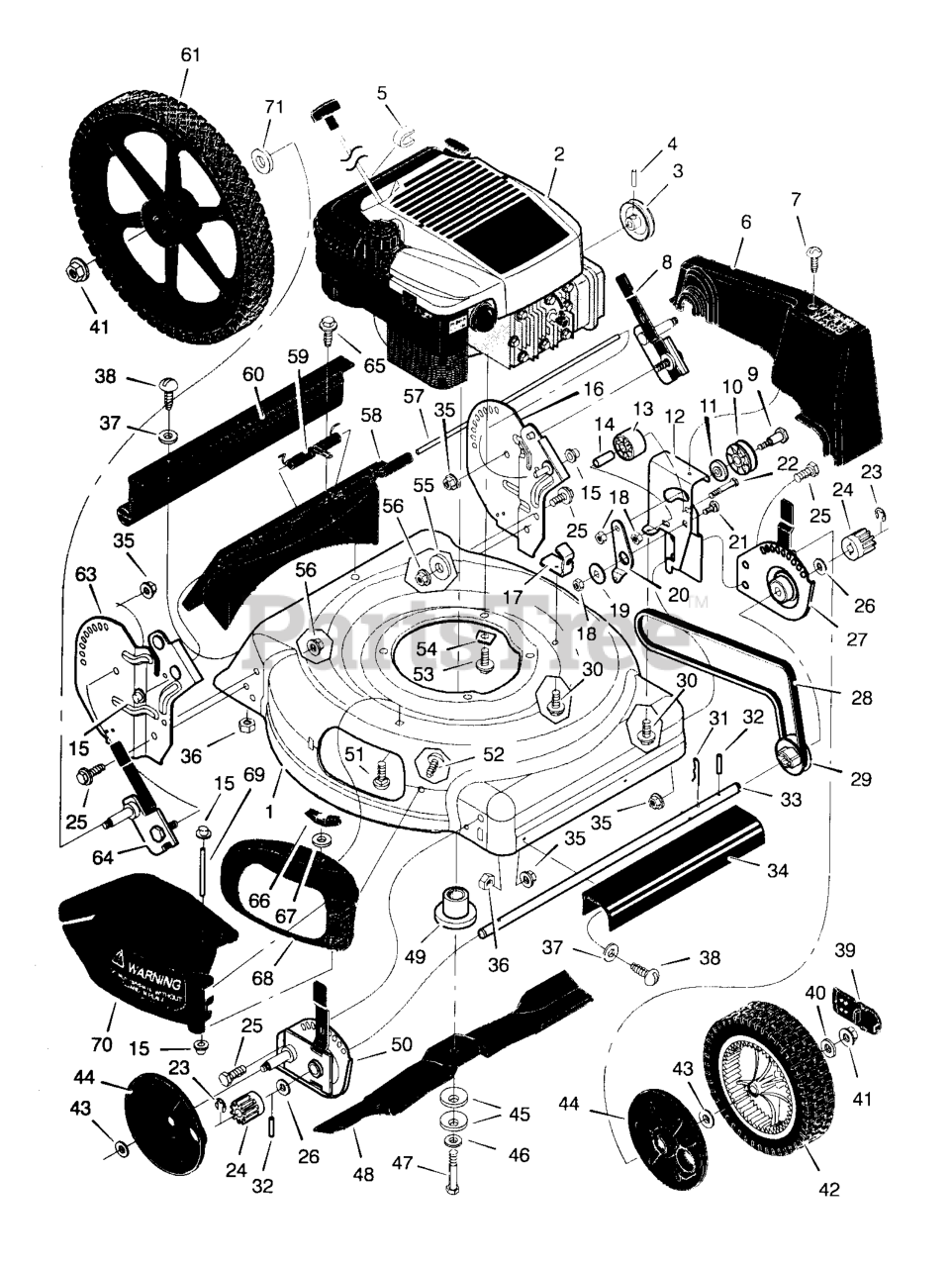

Mower Housing Assembly Parts Diagram

  • Title
1

Murray 776002

Housing

$

$

Currently unavailable

2

Engine *

$

$

Not available

3

Murray 071434MA

Pulley, Engine

$16.99

$

Usually ships in 2-12 days

0

4

Murray 032X64MA

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

5

Murray 042189MA

Stop, Rope (Recoil - Start)

$3.99

$

Usually ships in 2-12 days

0

6

Murray 671928

Cover, Belt

$

$

Currently unavailable

7

$3.49

$

Usually ships in 2-12 days

0

8

Murray 671977

Adjuster, Left Height

$10.99

$

Usually ships in 2-12 days

0

9

Murray 009X50MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

10

$

$

Not available

11

$3.99

$

Usually ships in 2-12 days

0

12

Murray 671935 Z

Bracket, Idler Support

$

$

Currently unavailable

13

Murray 071778MA

Pulley, Idler

$

$

Not available

14

Murray 071793MA

Bearing

$4.99

$

In Stock, Qty 6

0

15

Murray 028X42MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

16

Murray 671968

Bracket, Left Handle

$

$

Currently unavailable

17

Murray 671934

Bracket, Cable

$

$

Currently unavailable

18

Murray 015X43MA

Nut, Hex
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

19

$3.99

$

Usually ships in 2-12 days

0

20

Murray 671936

Arm, Idler

$

$

Currently unavailable

21

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

22

Murray 001X81MA

Bolt, Shoulder

$3.49

$

In Stock, only 2 left!

0

23

Murray 011X16MA

E- Ring

$3.99

$

Usually ships in 2-12 days

0

24

Murray 071792MA

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

25

$3.99

$

Usually ships in 2-12 days

0

26

$

$

Not available

27

Murray 671938

Adjuster, Left Front Height

$14.99

$

Usually ships in 2-12 days

0

28

$19.99

$

In Stock, only 2 left!

0

29

Murray 071791MA

Pulley, Axle

$16.99

$

Usually ships in 2-12 days

0

30

$4.99

$

In Stock, only 1 left!

0

31

Murray 0031X9MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

32

Murray 043629MA

Pin, Spring

$5.99

$

In Stock, only 3 left!

0

33

$60.99

$

Usually ships in 2-12 days

0

34

Murray 671948

Cover, Axle

$

$

Not available

35

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

36

Murray 15X102MA

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

37

$3.99

$

Usually ships in 2-12 days

0

38

$3.99

$

Usually ships in 2-12 days

0

39

Murray 043615MA

Hub Cap

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

40

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

41

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

42

Wheel, Drive *

$

$

Not available

43

$3.49

$

Usually ships in 2-12 days

0

44

Murray 071780MA

Cover, Dust

$5.99

$

Usually ships in 2-12 days

0

45

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

46

$4.49

$

Usually ships in 2-12 days

0

47

$8.49

$

In Stock, only 2 left!

0

$

$

Not available

49

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

50

Murray 671939

Adjuster, Right Front Height

$

$

Currently unavailable

51

Murray 002X72

Bolt, Carriage

$

$

Currently unavailable

52

$3.49

$

Usually ships in 2-12 days

0

53

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

54

Murray 671989

Support, Engine

$

$

Currently unavailable

55

$5.49

$

Usually ships in 2-12 days

0

56

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

57

Murray 215X17 Z

Rod, Pivot

$

$

Currently unavailable

58

Murray 671915

Door, Rear

$10.99

$

Usually ships in 2-12 days

0

59

$14.99

$

In Stock, only 1 left!

0

60

Murray 671969MA

Guard, Rear

$18.99

$

Usually ships in 2-12 days

0

61

Wheel, Rear *

$

$

Not available

62

Murray 015X81MA

Nut, Flange

$4.99

$

Usually ships in 2-12 days

0

63

Murray 671967

Bracket, Right Handle

$

$

Currently unavailable

64

Murray 671976

Adjuster, Right Height

$9.99

$

Usually ships in 2-12 days

0

65

$4.49

$

In Stock, only 4 left!

0

66

Murray 071495MA

Wingnut

$4.99

$

In Stock, only 3 left!

0

67

Murray 028X64MA

Retainer, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

68

$

$

Not available

69

Murray 215X18 Z

Pin, Pivot

$

$

Currently unavailable

70

Murray 671927

Deflector, Chute

$3.99

$

Usually ships in 2-12 days

0

71

$18.99

$

Usually ships in 2-12 days

0

--

Murray F-97459

Instruction Book

$

$

Currently unavailable
