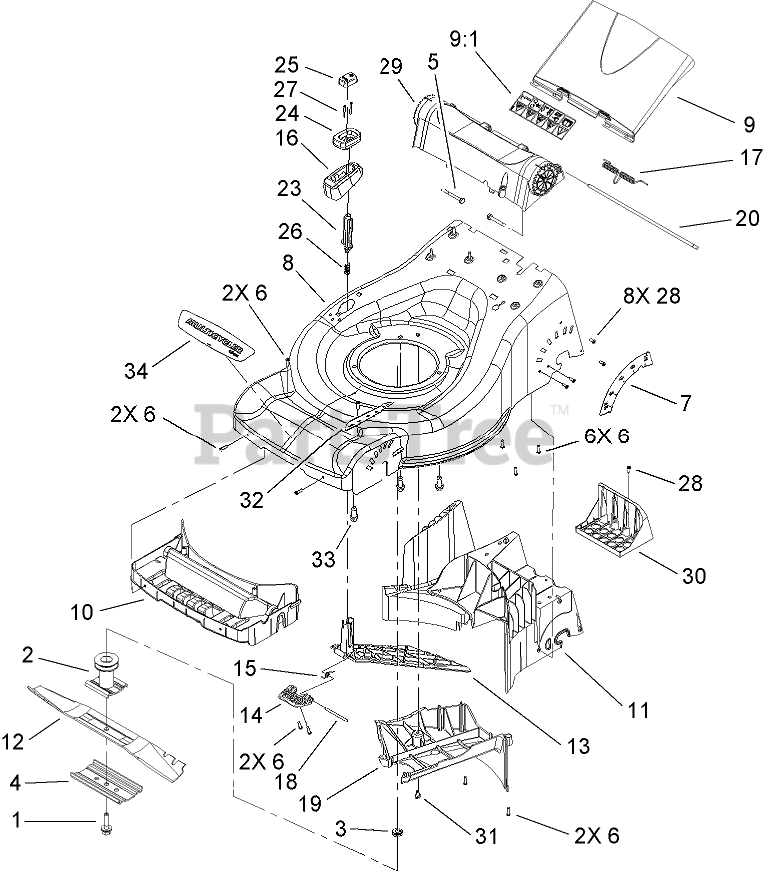

20638 - Toro 48cm Multicycler Walk-Behind Mower (SN: 270L00001 - 270L99999) (2007) HOUSING ASSEMBLY Parts Diagram

48cm Multicycler Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, Qty 19

0

3

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, Qty 20+

0

4

Toro 108-3766

SUPPORT-BLADE
(Superseded to 108-3766-03)

$10.99

$

In Stock, Qty 20+

0

5

Toro 110-7110

SCREW-HH

$

$

Not available

6

Toro 110-1271

SCREW-TORX, PAN HEAD

$

$

Currently unavailable

7

$

$

Not available

8

Toro 110-7060

HOUSING-DECK
(Superseded to 114-5375)

$

$

Not available

9

Toro 112-3929

DOOR ASM

$

$

Not available

9:1

Toro 110-7126

DECAL-WARNING

$3.49

$

Usually ships in 3-6 days

0

10

Toro 110-7066

BAFFLE-FRONT

$

$

Currently unavailable

11

Toro 110-7069

BAFFLE-REAR

$

$

Not available

12

$

$

Currently unavailable

13

Toro 110-7094

DOOR-RECYCLE

$

$

Not available

14

Toro 110-7095

HINGE-DOOR, RECYCLE

$

$

Currently unavailable

15

Toro 110-7096

SPRING-TORSION

$

$

Not available

16

Toro 110-7097

COVER-DOOR, RECYCLE

$

$

Not available

17

Toro 110-7107

SPRING-TORSION

$

$

Currently unavailable

18

Toro 110-7108

PIN-HINGE

$

$

Currently unavailable

19

Toro 110-7109

COVER-BELT

$

$

Currently unavailable

20

Toro 110-7119

BAR-PIVOT, REAR DOOR

$

$

Currently unavailable

23

Toro 110-7129

LATCH-RECYCLE

$

$

Currently unavailable

24

Toro 110-7136

HOUSING-KNOB

$

$

Currently unavailable

25

$

$

Currently unavailable

26

Toro 110-7141

SPRING-COMPRESSION

$

$

Currently unavailable

27

Toro 110-7143

SCREW-TORX, PAN HEAD

$

$

Currently unavailable

28

Toro 110-7147

SCREW-TORX, PAN HEAD

$

$

Not available

29

Toro 110-7153

MOUNT-HANDLE

$

$

Not available

30

Toro 110-7154

TRAY-BATTERY

$

$

Not available

31

Toro 110-7170

SCREW-HH

$

$

Currently unavailable

32

$

$

Currently unavailable

33

Toro 110-7182

SCREW-TAPTITE, HWH

$

$

Not available

34

$

$

Not available
