20636 - Toro 48cm Multicycler Walk-Behind Mower (SN: 280J00001 - 280J99999) (2008) DRIVE ASSEMBLY Parts Diagram

48cm Multicycler Walk-Behind Mower

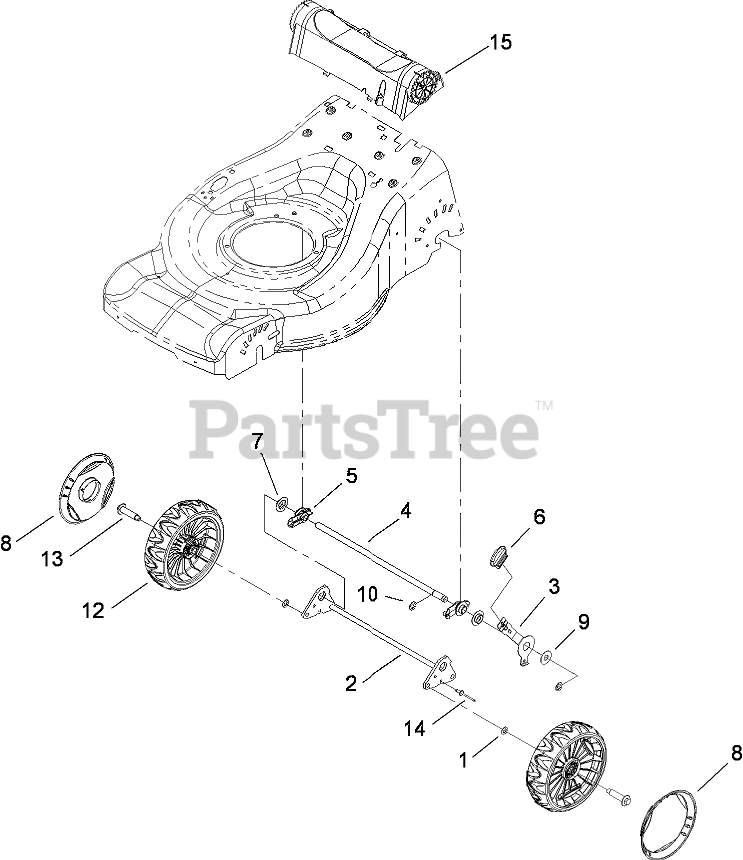

DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

2

Toro 110-7016

PIVOT BAR ASM

$

$

Not available

3

Toro 110-7073

LEVER-HOC, REAR

$

$

Currently unavailable

4

Toro 110-7076

AXLE-REAR, PUSH

$

$

Not available

5

Toro 110-7112

BUSHING-CAMLOCK

$

$

Currently unavailable

6

Toro 110-7125

KNOB-HOC

$

$

Not available

7

Toro 110-7171

SPACER-FLANGE

$

$

Currently unavailable

8

Toro 110-7174

COVER-WHEEL, REAR

$

$

Currently unavailable

9

Toro 110-7179

WASHER-PLAIN

$

$

Currently unavailable

10

Toro 110-7180

E-CLIP

$

$

Not available

12

Toro 110-7254

REAR WHEEL ASM

$

$

Currently unavailable

13

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

14

Toro 110-7193

RIVET-POP

$

$

Currently unavailable

15

Toro 110-7153

MOUNT-HANDLE

$

$

Not available
