20632 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HOUSING ASSEMBLY (USED ON SERIAL NO. 9000101 THRU 9003042) Parts Diagram

Walk-Behind Mower

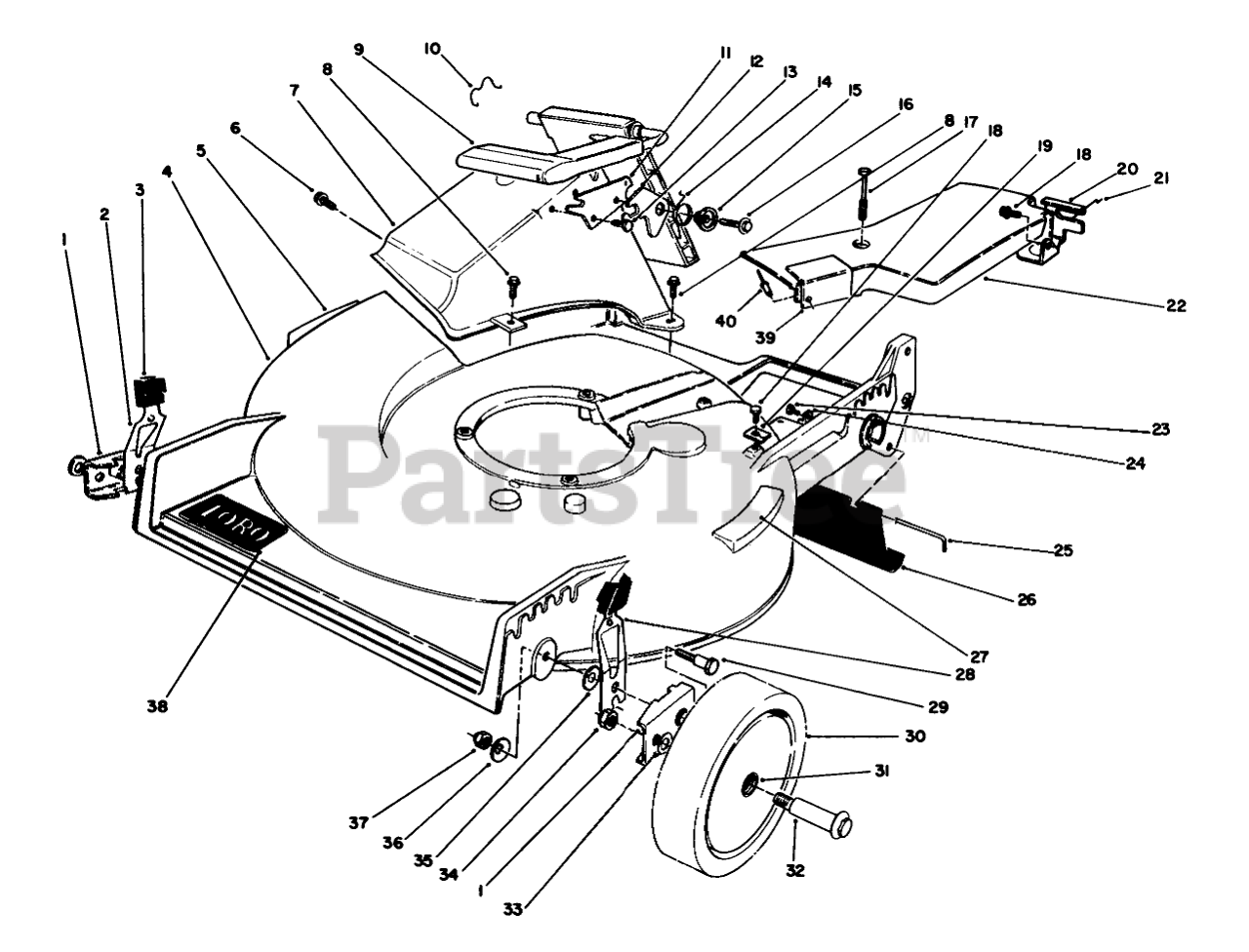

HOUSING ASSEMBLY (USED ON SERIAL NO. 9000101 THRU 9003042) Parts Diagram

  • Title

1

Toro 47-2940

HP PIVOT ARM ASM

$

$

Not available

2

Toro 52-7480

L. HP SPRING ARM ASM

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

4

Toro 11-4099

Housing (Incl. Ref. #5, 27 & 38)
(Superseded to 94-3707-01)

$

$

Not available

5

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

6

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

7

Toro 46-3500

Tunnel Discharge
(Superseded to 82-9151)

$192.99

$

Usually ships in 3-6 days

0

8

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

9

Toro 51-0201

Discharge Door Assembly
(Superseded to 77-0200)

$

$

Not available

10

Toro 47-5840

DOOR RET SPRING

$

$

Not available

11

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

12

Toro 42-4010

SAFETY LATCH

$

$

Not available

13

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

14

Toro 33-4860

TORSION SPRING

$68.99

$

Usually ships in 3-6 days

0

15

Toro 43-4840

DOOR SPACER

$8.49

$

Usually ships in 3-6 days

0

16

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

17

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

20

Toro 62-3940

Bracket-Traction Adj.
(Superseded to 82-5680-03)

$14.99

$

Usually ships in 3-6 days

0

21

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

22

Toro 52-7404

BELT COVER ASM

$84.99

$

Usually ships in 3-6 days

0

23

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

24

Toro 2412-83

CLAMP-CABLE

$

$

Not available

25

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

26

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

27

Toro 46-7370

STEP PAD DECAL

$27.99

$

Usually ships in 3-6 days

0

28

Toro 52-7490

R HP SPRING ARM ASM

$

$

Not available

29

Toro 44-5270

PIVOT SCREW

$10.99

$

In Stock, Qty 8

0

30

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #31)
(Superseded to 51-2751)

$34.99

$

In Stock, only 2 left!

0

31

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

32

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

33

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

34

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

35

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

36

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 71-0600

DECAL

$15.99

$

Usually ships in 3-6 days

0

39

Toro 38-8730

HEAT SHIELD

$

$

Not available

40

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0
