206310x192A - Briggs & Stratton 20" Walk-Behind Mower (2002) Handle And Bag Assembly Parts Diagram

20" Walk-Behind Mower

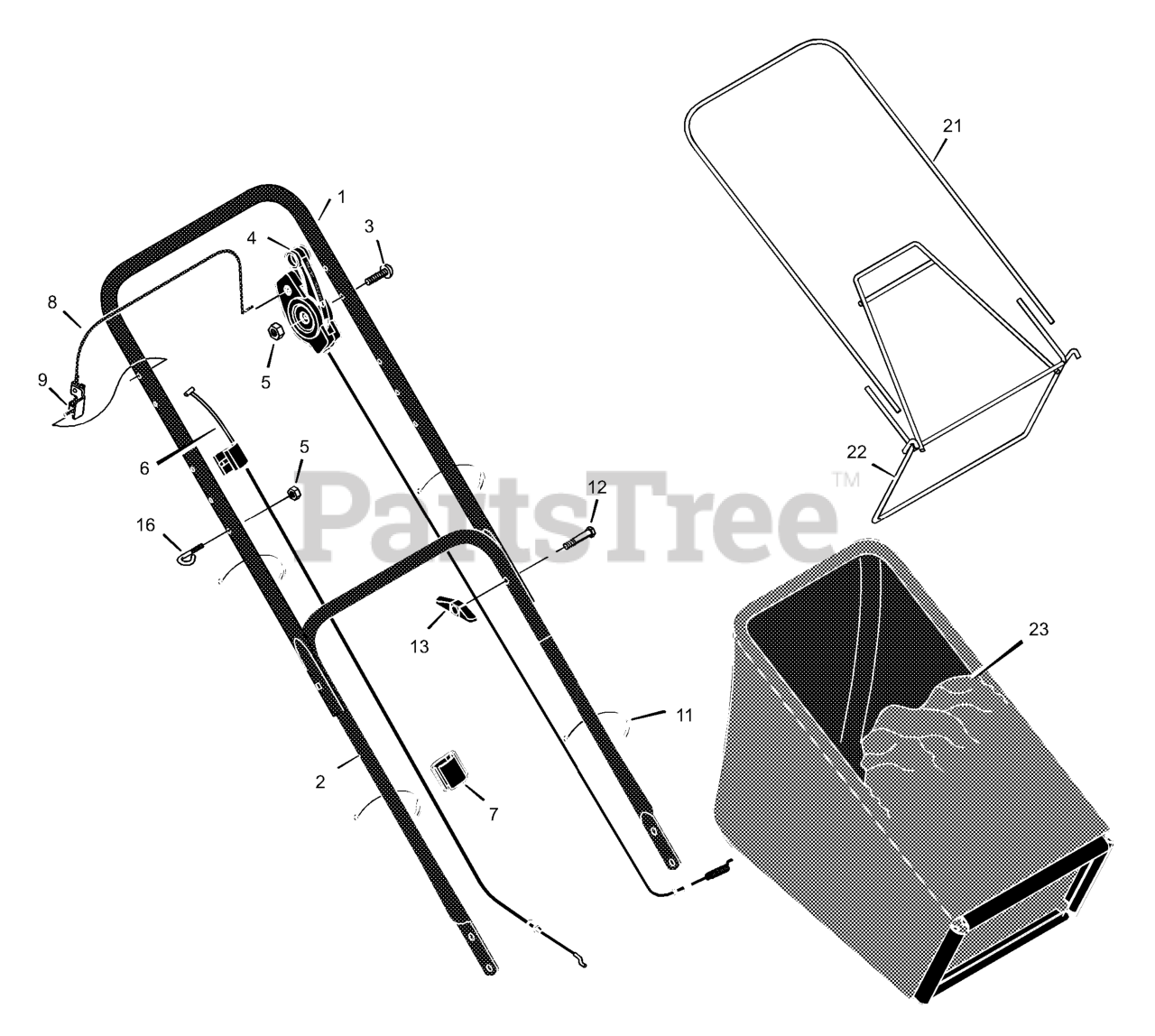

Handle And Bag Assembly Parts Diagram

  • Title

1

Murray 1101555E701MA

Handle, Upper (Black)

$

$

Not available

2

Murray 672874E701MA

Handle, Lower (Black)

$

$

Not available

3

Murray 025X14MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

4

Murray 1101420MA

Control, Drive

$39.99

$

Usually ships in 2-12 days

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 1101183MA

Cable, Stop

$

$

Not available

7

Murray 1101353MA

Fastener, Single Cable

$5.99

$

In Stock, only 2 left!

0

8

Murray 672878E701MA

Lever, Stop

$

$

Not available

9

Murray 1101454

Bracket, Stop Lever

$20.99

$

In Stock, only 1 left!

0

11

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

16

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

21

Murray 071592MA

Frame, Top

$

$

Not available

22

Murray 672905MA

Frame Assembly

$153.99

$

In Stock, only 1 left!

0

23

Murray 1101003

Bag, Cloth

$164.99

$

Usually ships in 2-12 days

0
