20631 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

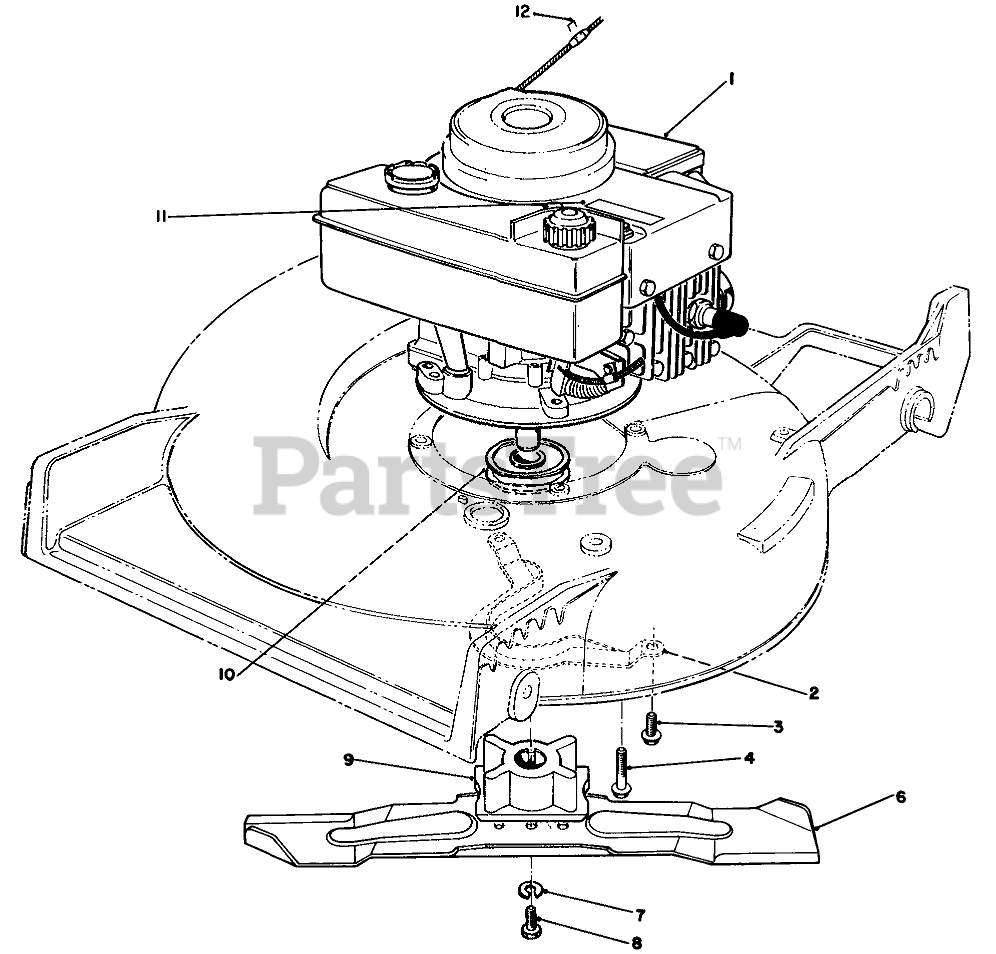

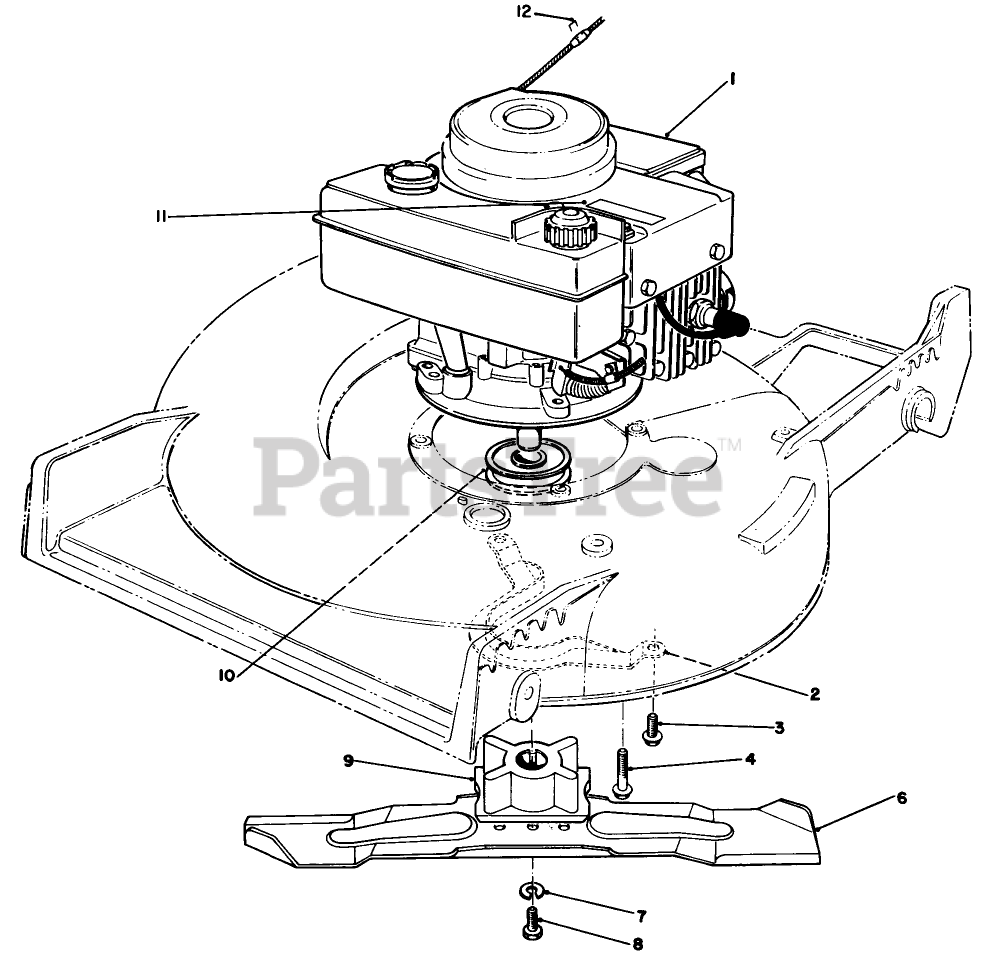

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

2

Toro 40-5720

BELT GUIDE

$

$

Not available

3

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

4

Toro 11-0581

3/8-16 X 2 CAPSCREW

$4.49

$

Usually ships in 3-6 days

0

6

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

7

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

8

Toro 26-0670

SCREW-BLADE

$

$

Not available

9

Toro 62-7540

BLADE RETAINER

$98.99

$

In Stock, only 1 left!

0

10

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

11

Toro 70-2190

Decal-Engine

$

$

Not available

12

Staple

$

$

Not available
