2063 - Jonsered Chainsaw (1997-11) IGNITION SYSTEM Parts Diagram

Chainsaw

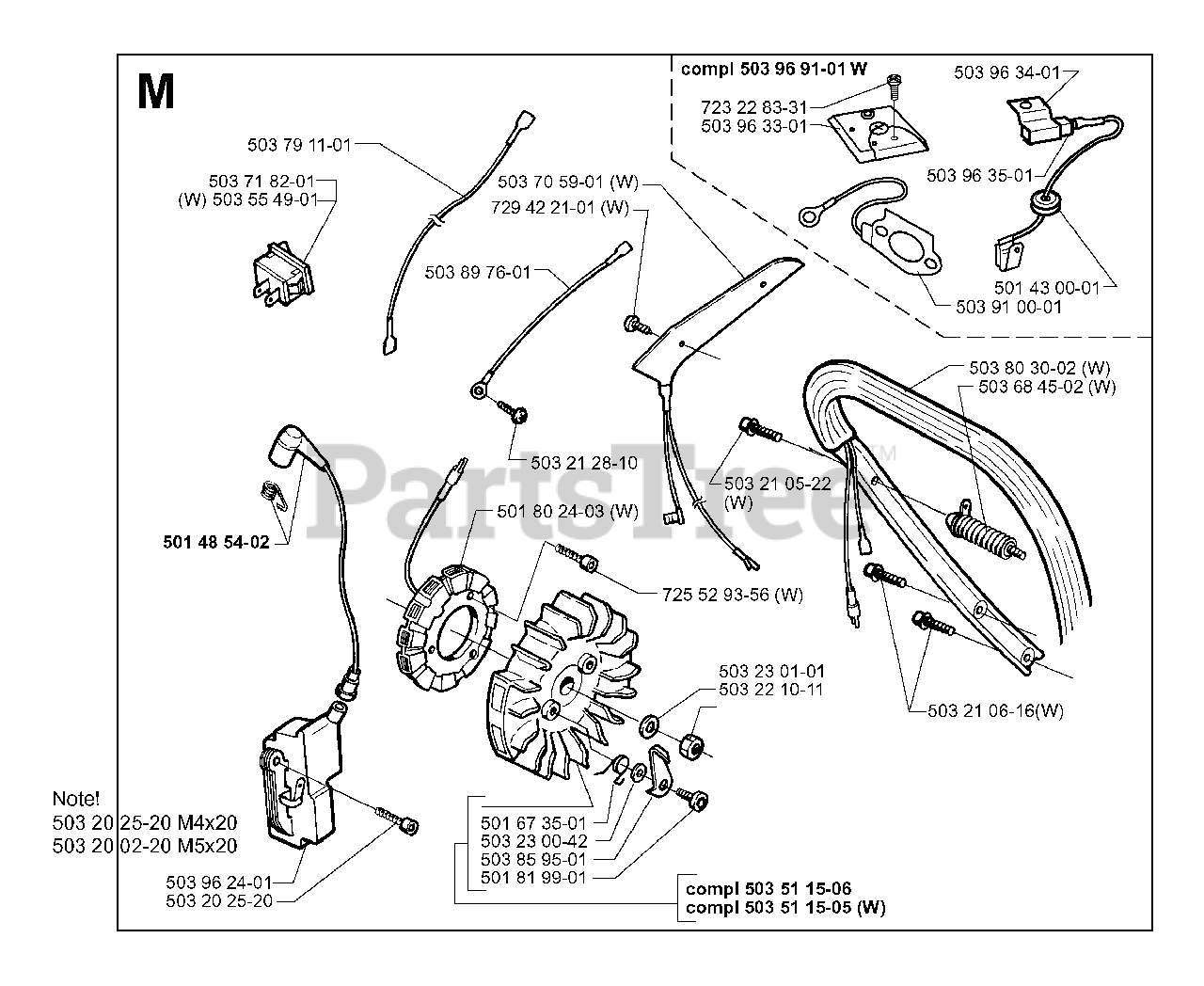

IGNITION SYSTEM Parts Diagram

  • Title

5037911-01

Jonsered 503791101

CABLE
(Superseded to 503626101)

$9.49

$

Usually ships in 3-10 days

0

5037182-01

Jonsered 503718201

START/STOP SWITCH

$13.99

$

In Stock, Qty 8

0

5035549-01

Jonsered 503554901

SWITCH

Note: W

$13.99

$

Usually ships in 3-10 days

0

5014854-02

Jonsered 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, only 3 left!

0

5032025-20

Jonsered 503202520

SCREW

Note: NOTE M4X20

$6.49

$

In Stock, Qty 10

0

5032002-20

Jonsered 503200220

No Description Available

Note: M5X20

$6.49

$

In Stock, Qty 18

0

5039624-01

Jonsered 503962401

IGNITION MODULE
(Superseded to 503962403)

$

$

Not available

5032025-20

Jonsered 503202520

SCREW

$6.49

$

In Stock, Qty 10

0

5018199-01

Jonsered 501819901

SCREW M5X14

$6.49

$

In Stock, Qty 6

0

5038595-01

Jonsered 503859501

PAWL

$10.99

$

Usually ships in 3-10 days

0

5032300-42

Jonsered 503230042

WASHER

$6.49

$

In Stock, only 2 left!

0

5016735-01

Jonsered 501673501

SPRING

$7.49

$

In Stock, Qty 10

0

5035115-05

Jonsered 503511505

FLYWHEEL (G)
(Superseded to 537051604)

Note: W

$185.99

$

Usually ships in 3-10 days

0

5035115-06

Jonsered 503511506

FLYWHEEL
(Superseded to 537051605)

$182.99

$

Usually ships in 3-10 days

0

5032210-11

Jonsered 503221011

NUT M8X1

$6.49

$

In Stock, only 1 left!

0

5032301-01

Jonsered 503230101

WASHER 8.4X16

$7.49

$

In Stock, only 1 left!

0

7255293-56

Jonsered 725529356

SCREW MC6S 4X16

Note: W

$5.99

$

In Stock, only 2 left!

0

5018024-03

Jonsered 501802403

GENERATOR

Note: W

$115.14

$

Usually ships in 3-10 days

0

5032128-10

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 11

0

5038976-01

Jonsered 503897601

CABLE

$5.99

$

In Stock, only 4 left!

0

7294221-01

Jonsered 729422101

SCREW
(Superseded to 503213801)

Note: W

$

$

Not available

5037059-01

Jonsered 503705901

PLATE (G)

Note: W

$54.99

$

Usually ships in 3-10 days

0

5032105-22

Jonsered 503210522

SCREW

Note: W

$5.99

$

In Stock, Qty 11

0

5032106-16

Jonsered 503210616

SCREW
(Superseded to 503214916)

Note: W

$10.99

$

In Stock, Qty 20+

0

5036845-02

Jonsered 503684502

ANTIVIBE MOUNT

Note: W

$20.99

$

In Stock, only 2 left!

0

5038030-02

Jonsered 503803002

FRONT HANDLE

Note: W

$135.01

$

Usually ships in 3-10 days

0

5039100-01

Jonsered 503910001

ELEMENT

$

$

Not available

5014300-01

Jonsered 501430001

GROMMET

$6.49

$

Usually ships in 3-10 days

0

5039635-01

Jonsered 503963501

NO LONGER AVAILABLE NLA

$

$

Not available

5039634-01

Jonsered 503963401

BRACKET

$

$

Not available

5039633-01

Jonsered 503963301

NO LONGER AVAILABLE NLA

$

$

Not available

7232283-31

Jonsered 723228331

SCREW

$

$

Not available

5039691-01

Jonsered 503969101

NO LONGER AVAILABLE NLA

Note: W

$

$

Not available
