2063 - Jonsered Chainsaw (1997-11) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

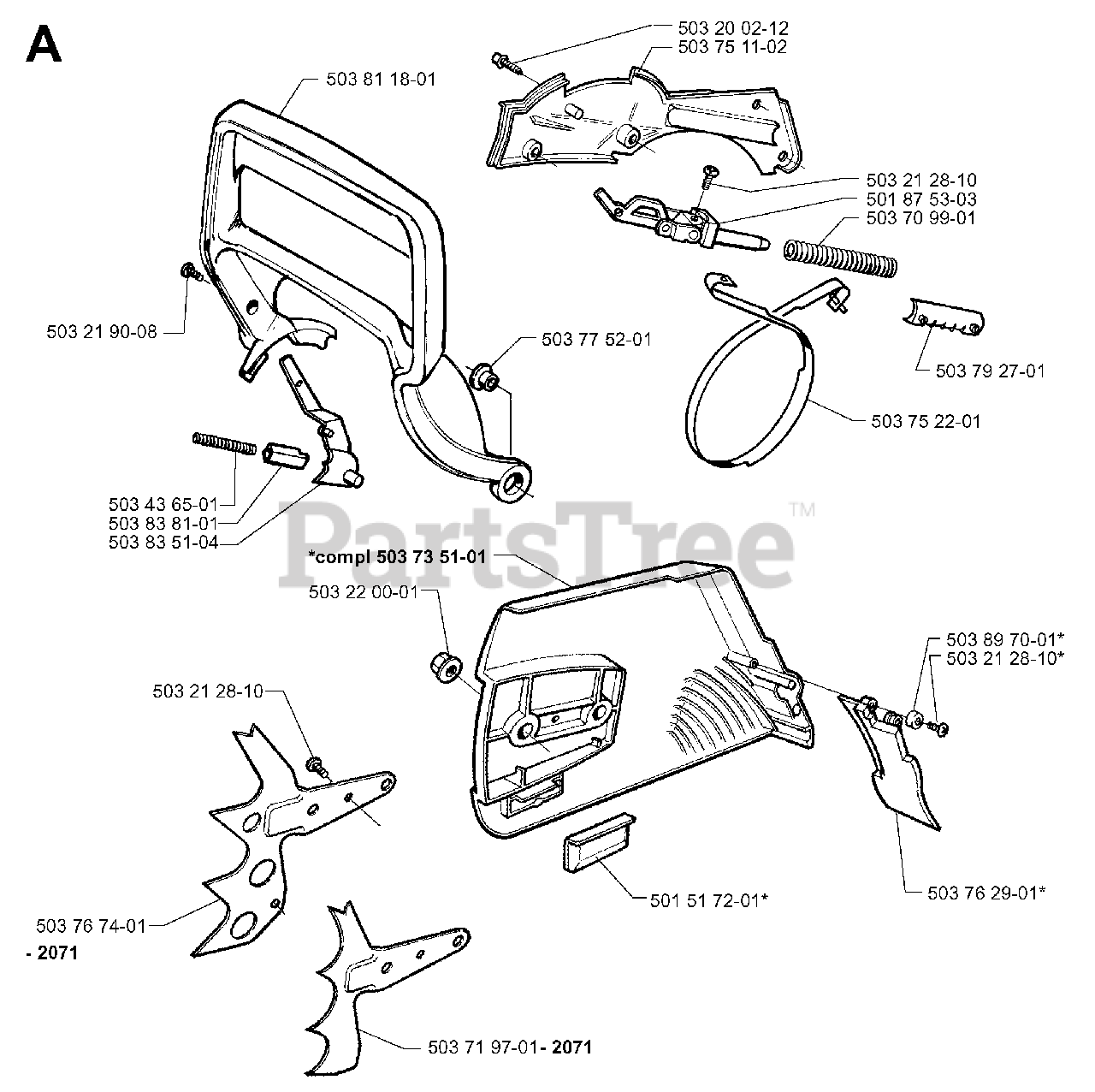

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title

5038118-01

Jonsered 503811801

HAND GUARD
(Superseded to 503719304)

$69.99

$

In Stock, only 1 left!

0

5032190-08

Jonsered 503219008

SCREW
(Superseded to 503205508)

$

$

Not available

5034365-01

Jonsered 503436501

LOCK SPRING

$7.49

$

In Stock, only 4 left!

0

5038381-01

Jonsered 503838101

CATCH
(Superseded to 503838102)

$6.99

$

In Stock, only 4 left!

0

5038351-04

Jonsered 503835104

BRAKE LEVER

$

$

Not available

5032128-10

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 12

0

5037674-01

Jonsered 503767401

FELLING DOG
(Superseded to 503922701)

$26.99

$

Usually ships in 3-10 days

0

5037197-01

Jonsered 503719701

FELLING DOG

$26.99

$

In Stock, only 1 left!

0

5032200-01

Jonsered 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

5037351-01

Jonsered 503735101

CLUTCH COVER

$

$

Not available

5037752-01

Jonsered 503775201

BUSHING

$9.49

$

In Stock, Qty 20+

0

5015172-01

Jonsered 501517201

CHAIN GUIDE

$8.99

$

In Stock, only 4 left!

0

5037629-01

Jonsered 503762901

PROTECTOR
(Superseded to 503762902)

$24.99

$

In Stock, Qty 11

0

5032128-10

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 12

0

5038970-01

Jonsered 503897001

WASHER

$5.99

$

In Stock, only 4 left!

0

5037522-01

Jonsered 503752201

BRAKE BAND
(Superseded to 503752202)

$21.99

$

In Stock, only 1 left!

0

5037927-01

Jonsered 503792701

%SUPPORT
(Superseded to 503792702)

$5.99

$

In Stock, Qty 11

0

5037099-01

Jonsered 503709901

BRAKE SPRING
(Superseded to 503709902)

$12.99

$

In Stock, only 4 left!

0

5018753-03

Jonsered 501875303

KNEE LINK

$26.99

$

In Stock, only 1 left!

0

5032128-10

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 12

0

5037511-02

Jonsered 503751102

COVER
(Superseded to 503751103)

$7.99

$

In Stock, only 3 left!

0

5032002-12

Jonsered 503200212

SCREW
(Superseded to 503200712)

$7.49

$

In Stock, Qty 13

0
