20629 C - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) AIR CLEANER & FUEL TANK ASSEMBLY (MODEL NO. VMG6) Parts Diagram

Walk-Behind Mower

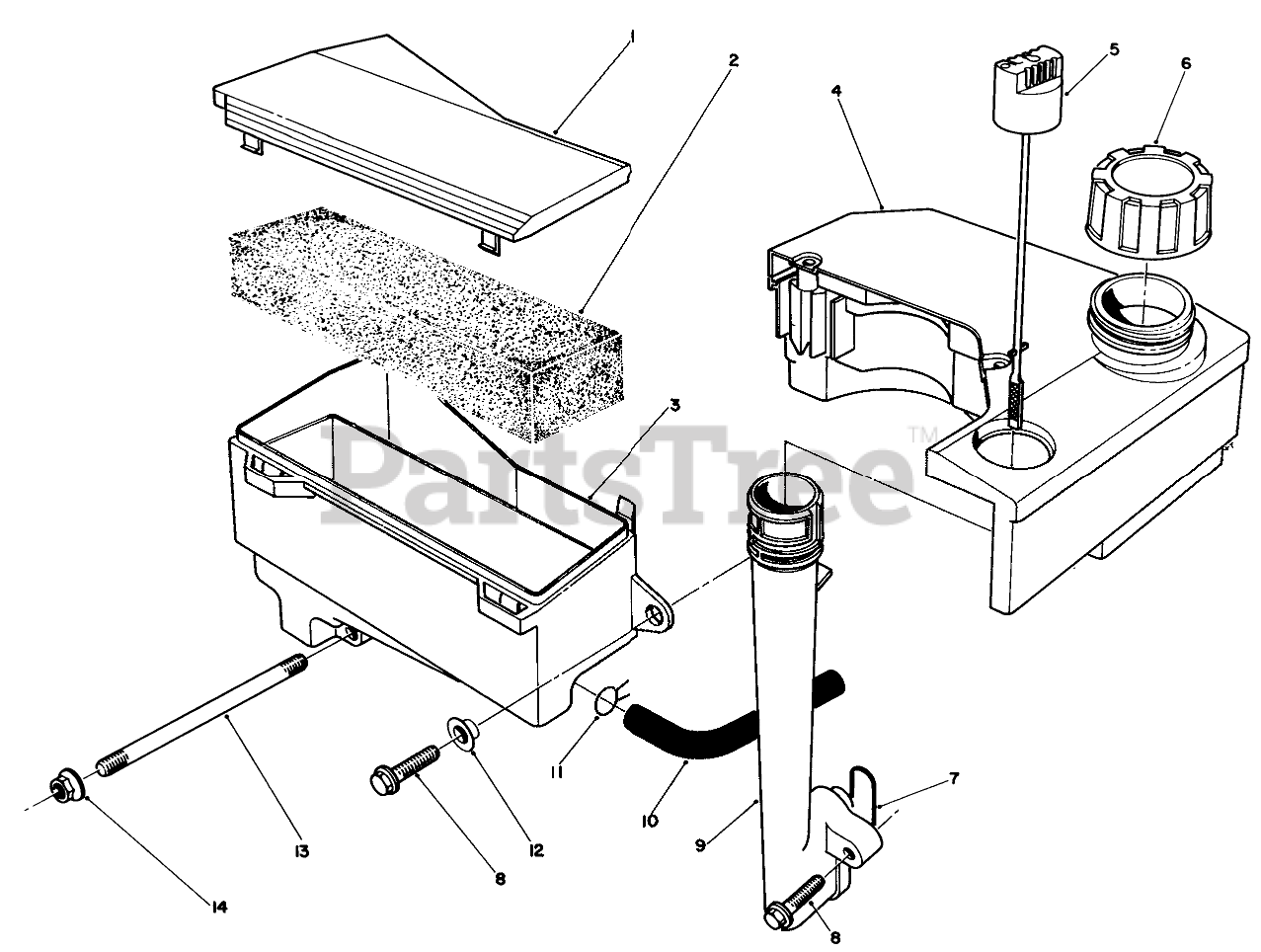

AIR CLEANER & FUEL TANK ASSEMBLY (MODEL NO. VMG6) Parts Diagram

  • Title
1

Toro 81-4110

AIR CLEANER CAP

$

$

Not available

2

$11.99

$

In Stock, only 2 left!

0

3

Body-Air Cleaner

$

$

Not available

4

Toro 55-3530

TANK ASM

$160.99

$

In Stock, only 2 left!

0

5

Toro 81-4140

Dipstick
(Superseded to 81-4730)

$

$

Not available

6

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

7

Toro 814150

0-Ring-Oil Tube

$

$

Currently unavailable

8

$

$

Not available

9

$

$

Not available

10

$

$

Not available

11

Toro 81-4190

CLAMP F/W ENGINE

$

$

Not available

12

Toro 81-4200

SPACER

$

$

Not available

13

Toro 81-4220

Stud-Carburetor
(Superseded to 81-4740)

$

$

Not available

14

$6.99

$

In Stock, Qty 5

0

Toro 81-4240

Air Cleaner Assembly (Incl. Ref. #1 & 3)

Note: Not illustrated

$

$

Not available

Toro 12-3369

Air Cleaner Assembly (Incl. Ref. #1-3, 10 & 11)
(Superseded to 99-5276)

Note: Not illustrated

$

$

Not available
